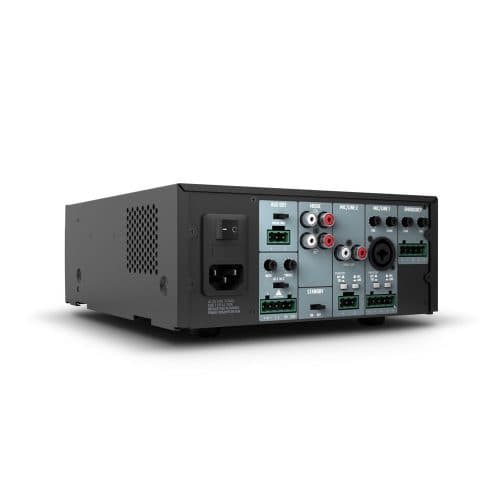

LD Systems IMA30 Installation Mixing Amplifier
The LD Systems IMA30 brings you the first model of the new IMA mixing amplifier-series; leaving nothing to be desired in terms of design and flexibility. Thanks to its compact 9.5″ housing design, the IMA30 offers seamless integration with both industrial and commercial applications. Including Bluetooth for wireless connection of Audio as well as a multistage priority circuit.
Furthermore, the IMA30 is equipped with 4 priority levels to manage all connected audio signals during emergency and priority announcements. You can also activate an automatic standby mode to reduce power consumption during the absence of audio. Featuring two priority contact closures, with one for emergency input to mute both Mic/Line and music sources. As well as another for Mic/Line Channels to mute music sources only.
What’s more, the outputs provide 30W of power at 4 0hm; a two-band equalizer for bass and trebles as well as 70 V/100 V tap settings. The Hi-Z and Lo-Z selector switch means you can separate the output signal completely from the output transformer to ensure an optimal frequency response for low impedance applications.
The built-in aux output can be used to add external power amplifiers, active subwoofers, and on-hold music systems. You can also choose to send the entire mix or only the selected music signal source to the aux output using the music-mix selector switch.
Features

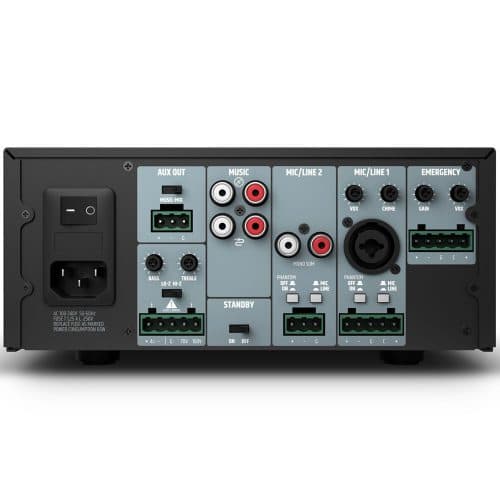

- Line input for emergency signal with contact closure
- 2 microphone/line input sockets with microphone/line switch and switchable 24 V phantom power
- Switchable chime feature in Mic/Line 1 channel
- 2 line inputs with RCA sockets and Bluetooth 4.0 interface (mono summed)
- 30W Class-D Amplifier with Lo-Z / Hi-Z selector switch and 4 Ohm / 100V / 70V outputs
- Balanced AUX line output with Music-Mix switch, for controlling external amplifiers, active subwoofers or music-on-hold systems
- 4 priority settings for comprehensive integration options
- Switchable auto standby mode for reduction of energy consumption

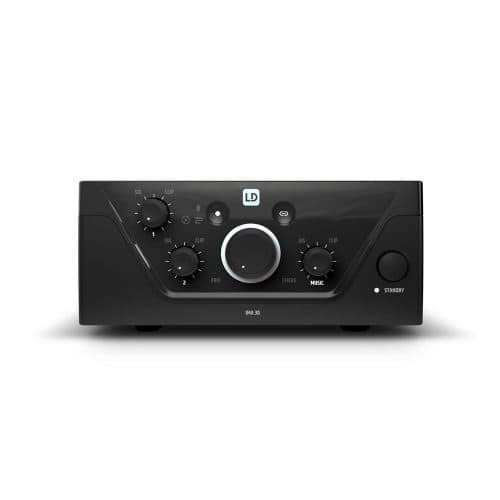

- Intuitive control panel design for operation with capacitive controls for selecting music source and Bluetooth pairing
- Universal wide-range switching power supply
Spec
Product Type: Installation mixing amplifier
Emergency input: 1 balanced line input
Mic/ line inputs: 2
Music sources: 2 unbalanced stereo line inputs, Bluetooth 4.0
Line outputs: 1
Powered outputs: 1 with the output mode selector (Low-Z/High-Z)
Cooling: Convection
Priority levels: 4
