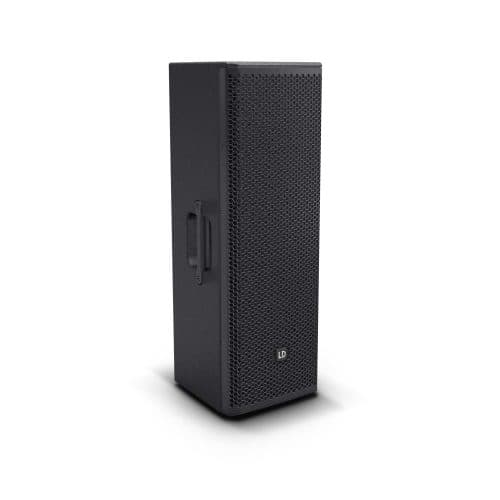

LD Systems LDEB282G3 Stinger 28 G3 Dual 8″ Passive Speaker

Engineered for rock-solid reliability day in, day out this passive 2-way loudspeaker is a truly professional performer. With its multi-purpose bass reflex construction it is equally suitable for fullrange, satellite or monitor use in live PA systems and permanent installations.

Mega Power

The LDEB282G3 Stinger 28 G3 boasts a mighty 400 watts RMS power handling and 125 dB maximum sound pressure. Also, within you will find dual custom designed 8” woofers. Plus, a BMS compression driver delivers a punchy low end and smooth, crisp highs. Furthermore, the HF waveguide has been designed using BEM, the numerical modelling of sound radiation and propagation.

Specifically, this reduces floor and ceiling reflections, effectively eliminates side lobes and achieves a controlled uniform coverage pattern. Situated directly in front of the two 8” woofers, phase plugs ensure that midrange efficiency is increased and harmonic distortion above the crossover frequency is reduced.

Reliability Ensured

Above all, the LDEB282G3 Stinger 28 G3 is a real workhorse throughout. The enclosure is made of rigid birch ply and coated with ultra-tough polyurea for extraordinary strength and durability. Sporting a steel front grille, Dual-Tilt pole receptacle, multiple suspension points and ergonomic handles the LDEB282G3 Stinger 28 G3 is a great choice for truly professional sound reinforcement. A large selection of accessories facilitates live and installed applications.

LDEB282G3 Stinger 28 G3 Key Highlights:

• 2-way passive 2 x 8” bass reflex PA speaker
• 400 watts RMS power handling
• 125 dB maximum SPL

Features

• 2-way passive 2 x 8” bass reflex PA speaker
• 400 watts RMS power handling
• 125 dB maximum SPL
• 2 x 8“ custom woofer and BMS compression driver
• BEM optimized HF waveguide for uniform coverage
• Birch ply cabinet with ultra rugged polyurea finish and M10 suspension points

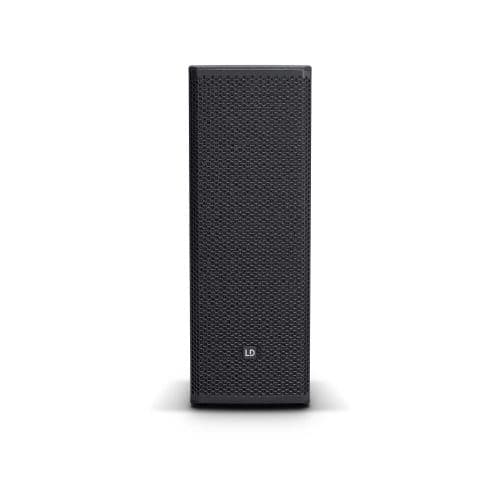

• Shock-resistant front grill provides maximum speaker protection

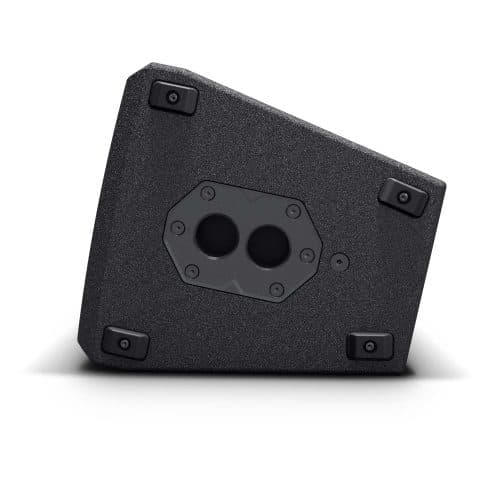

• 36 mm Dual-Tilt pole receptacle for 0° or 5° mounting angles
• Large selection of smart installation and transport accessories

Spec

Type: Passive
Woofer driver: Custom Made 2 x 8″ (203.2 mm)
Woofer voice coil: 2″(Ferrite)
Woofer Magnet: Ferrite
Horn: BEM optimized CD Horn
HF driver dimensions: BMS 1″ (25.4 mm)
HF driver voice coil: 1″
HF Magnet: Ferrite
Amplifier: Class D
Dispersion (H x V): 90 x 50°
RMS: 400W
Peak power: 800W
Frequency response: 58Hz – 20kHz
SPL (1W/1m): 99 dB
Max. SPL (peak): 125 dB
Impedance: 8 Ohm(s)
Protection circuits: HF Driver

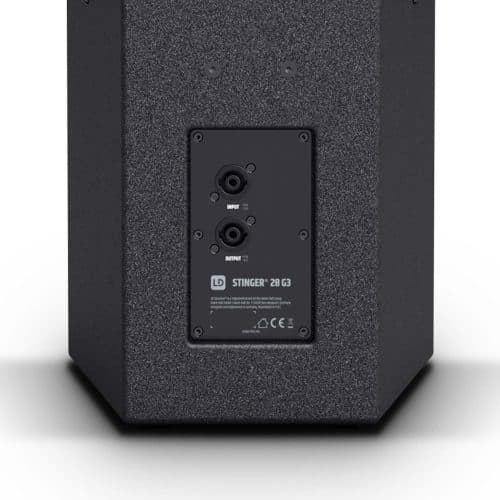

Inputs: 1x Speakon
Outputs: 1x Speakon
Cabinet material: 12 mm Plywood
Cabinet surface: Polyurea
Dimensions: 270 x 756 x 290 mm
Weight: 19.3 kg
