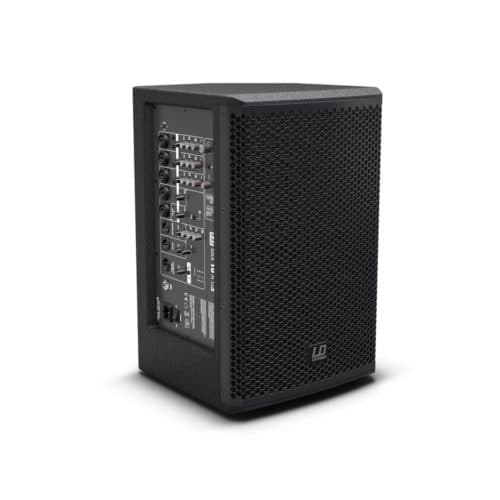

LD Systems LDMIX102AG3 2 Way Speaker with 7 Channel Mixer

LD Systems LDMIX102AG3 2 Way Speaker with 7 Channel Mixer

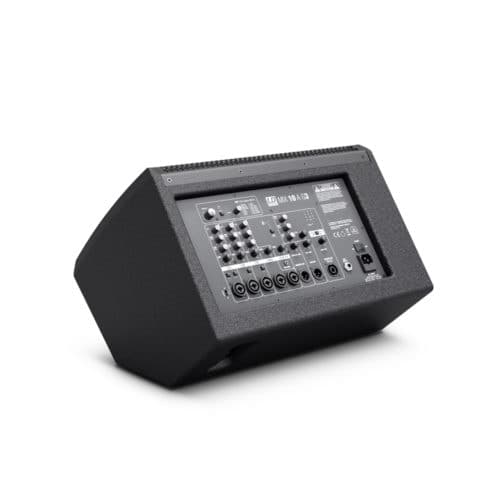

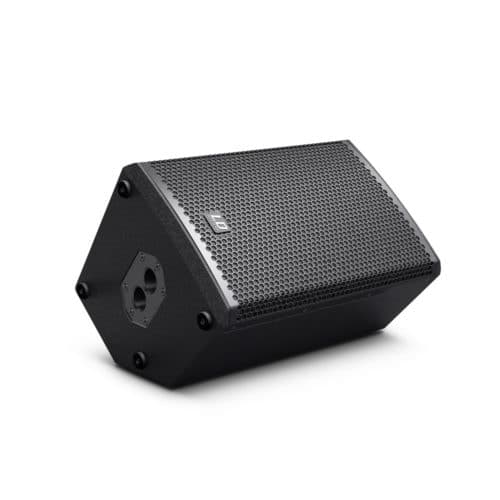

LD Systems LDMIX102AG3 2 Way Speaker with 7 Channel Mixer is an ideal choice for small-scale PA and personal monitoring applications, the active LD MIX 10 A G3 integrates a 7-channel mixer and Class D amplification with 2 x 400 watts peak power. The compact bass reflex loudspeaker features a 10" custom woofer and 1" Celestion HF driver complement, 65 Hz to 20 kHz frequency response and 90° x 60° dispersion delivering crystal clear sound with punch and detail. Accommodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players, the built-in mixer provides 3 microphone channels with 2-band EQ, 48 V phantom power plus switchable hi-Z input (CH1) and stereo line channel. The output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering and XLR monitor and subwoofer outputs. In addition, the LD MIX 10 A G3 sports a DSP with 16 effect presets, limiter and overcurrent, overload, short circuit and thermal protection. A speakON output allows powering the passive LD MIX 10 G3 to easily create a stereo setup. The rigid enclosure is constructed with tough plywood featuring a 50° monitor angle and Dual-Tilt pole receptacle for 0° or 5° mounting angles. On its own or in tandem with the passive unit, the LD MIX 10 A G3 provides amazing performance and versatility in a lightweight, easily portable package.

Features

• 2 x 200 watts RMS class D amplification
• 10” custom woofer and 1” Celestion HF driver
• Integrated 7-channel mixer
• DSP with 16 FX Presets
• Bluetooth® audio streaming
• Standalone mono or stereo applications with LD MIX 10 G3
• Subwoofer and monitor outputs
• Rigid plywood enclosure
• Dual-Tilt pole mount for 0° or 5° orientation

Spec

PA loudspeaker

• Type: active
• Woofer dimensions: 10 “
• Woofer size: 254 mm
• Woofer brand: Custom-made
• Tweeter Dimensions: 1 “
• Tweeter dimensions (mm): 25.4 mm
• Tweeter brand: Celestion
• Dispersion (H x V): 80 x 70 °
• Frequency response: 65 – 20.000 Hz
• Amplifier: Class D
• Amplifier output (RMS): 2 x 200 W
• Amplifier output (peak): 2 x 400 W
• Max. SPL: 124 dB
• Protection circuits:
  • limiter
  • over-current
  • overload
  • short circuit
  • thermal overload

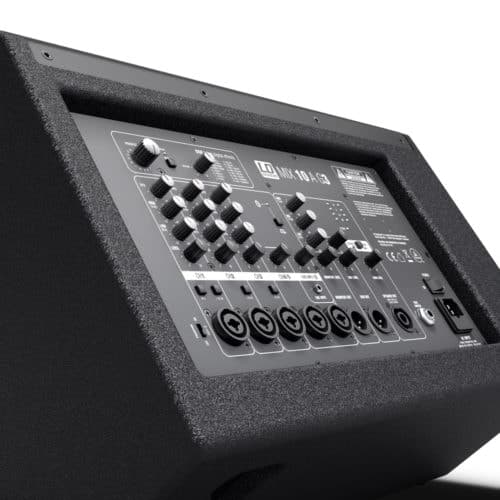

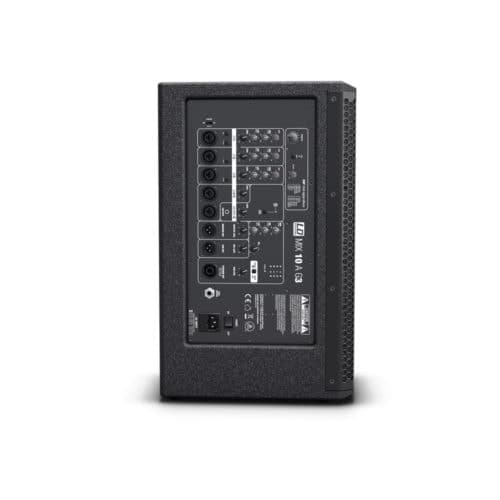

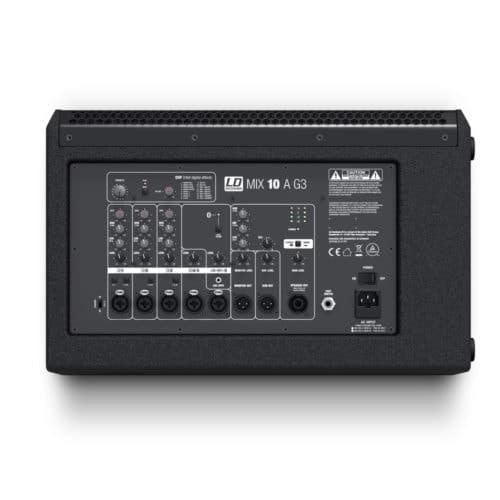

Mixer

• Channels: 7
• Mic inputs: 3
• Mic inputs:
  • 6.3 mm jack
  • XLR
• Controls for Mic Inputs:
  • + 20 db switchable
  • DFX Send
  • EQ Hi
  • EQ Low
  • Hi-Z Switch (channel 1 only)
  • Level
• Line inputs: 2
• Line input connectors: 2 x XLR , 3.5mm TRS
• Controls Line Inputs: level
• Hi-Z inputs: 1
• Hi-Z input connectors: 6.3 mm jack
• Input Impedance Hi-Z Input Connectors: 1000 kOhm
• Monitor Line Outputs: 2
• Connector Type Monitor Line Output: XLR
• Controls for Monitor Line Output: Monitor Volume , Sub level
• Max Output Level Line Output Monitor: 17 dBu
• Record Outputs: 1
• Increased power main output (at 4 ohm): 200 W

DSP Digital Effects Unit

• DSP Number of Programs: 16
• DSP Controls:
  • DFX Return
  • ootswitch
  • Mute switch
  • Presets
• DSP Display Elements: Peak LED

Main section

• Controls:
  • Balance
  • EQ Hi
  • EQ Low
  • EQ Mid
  • Master Volume
  • Mono/stereo
  • Phantom Power
  • Power On/Off
  • Switch operating voltage
• Main section indicators: 4-segment Level Meter , power LED
• Phantom power: 48 V
• Mains connector: IEC socket
• Operating voltage: SMPS
• Operating voltage: 110 – 120 V ~ 50/60 Hz or 220 – 240 V ~ 50/60 Hz, automatic switching
• Power consumption: 500 W

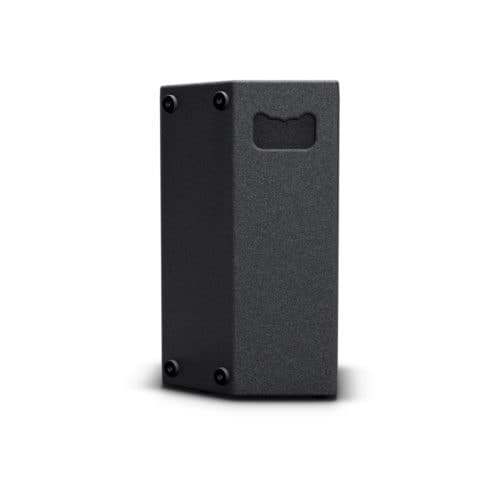

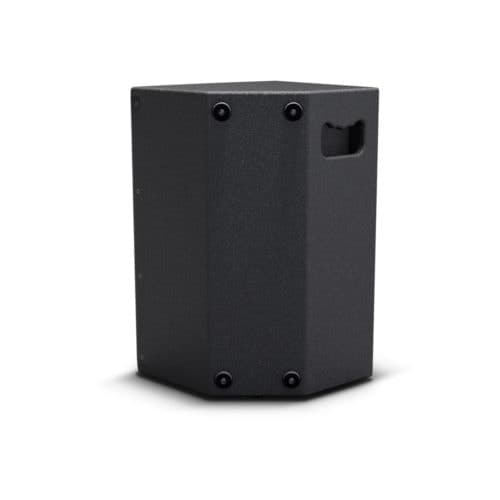

Cabinet

• Cabinet construction: vented
• Cabinet material: 16 mm Plywood
• Cabinet surface: texture paint
• Cabinet colour: Black
• Width: 315 mm
• Height: 489 mm
• Depth: 307 mm
• Weight: 12,3 kg

Other features

• Bluetooth
• dual-tilt flange (0°/5°)
• Ergonomic handle
