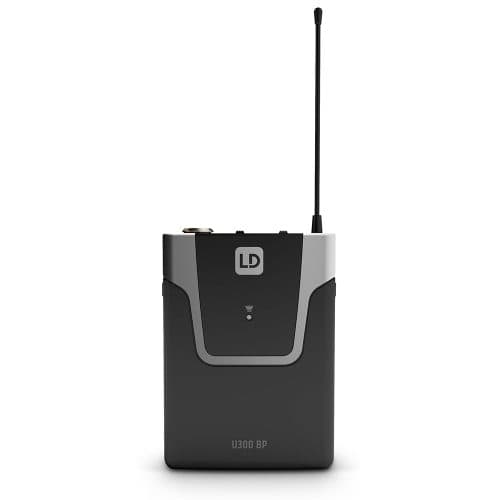

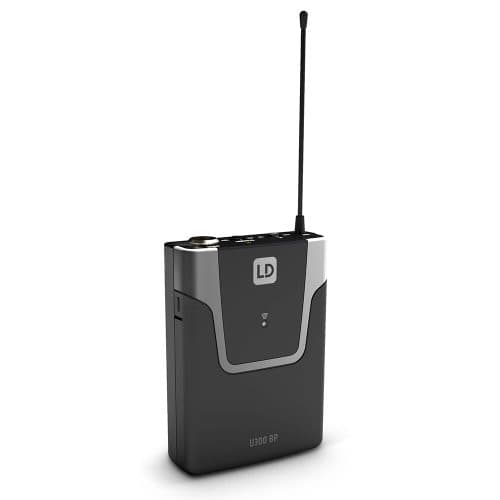

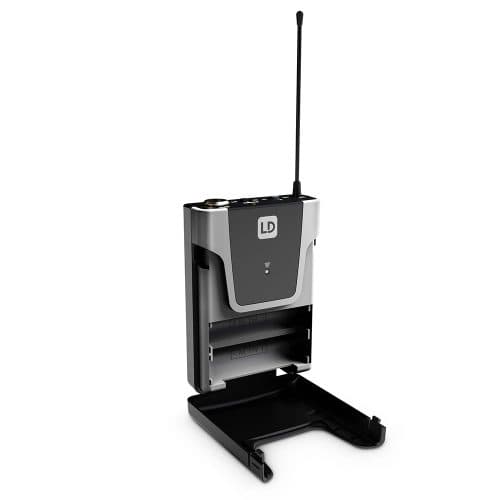

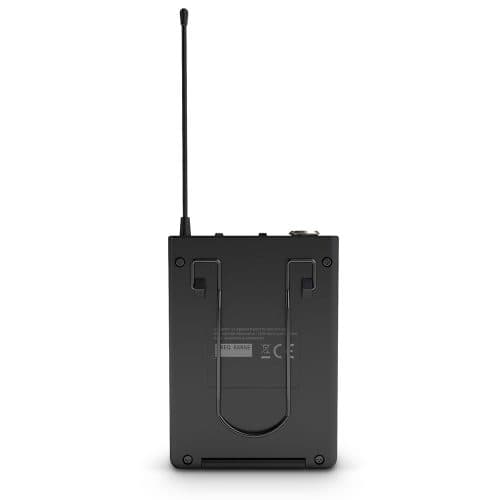

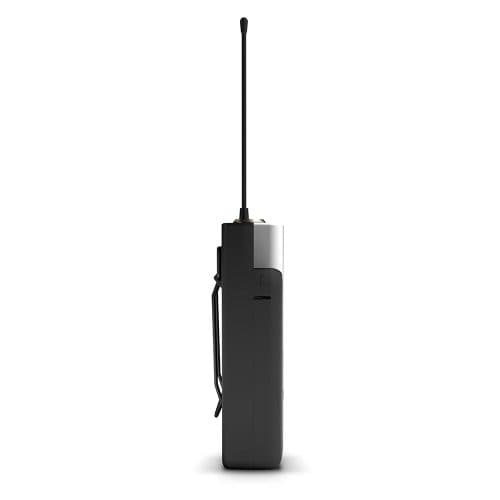

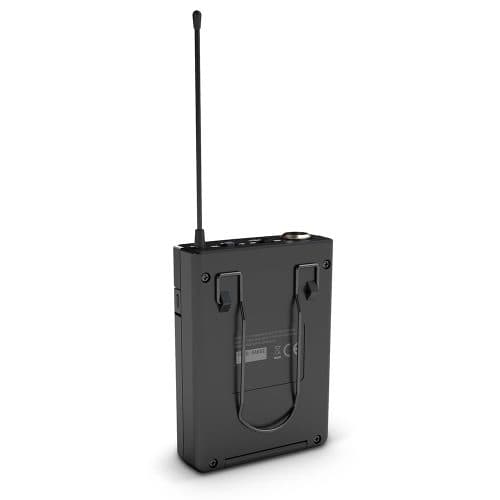

LD Systems LDU306BP Wireless Bodypack Transmitter
This U300 Series bodypack transmitter features a miniature XLR input with a 3-position level selector to accommodate microphones as well as active and passive instrument pickups. It provides over 10 hours of continuous operation on two AA batteries, easy IR syncing with the U306 receiver and more.
Spec
Product Type: Wireless Microphone System Accessories
Type: Bodypack
Transmission frequency range: 655 – 679 MHz
Channels: 12
Groups: 1
Inputs: Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Frequency response: 25 – 16,000
Signal-to-noise ratio: 104 dB
Rated HF output power: 10 mW

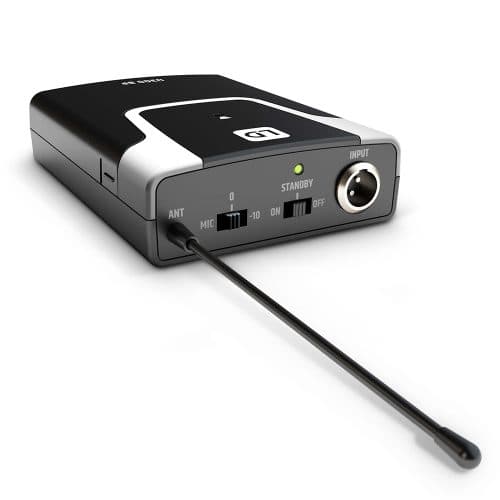

Controls: Gain (3-way switch), Power On/Off
Indicators: ASC IR Sync (Green/Amber Blinking LED), Battery (low battery: red), Power LED (Power ON: green)
Operating voltage: 2 x AA battery
Operating time: > 10 h
Width: 65 mm
Height: 91 mm
Depth: 25 mm
Weight: 0.085 kg
