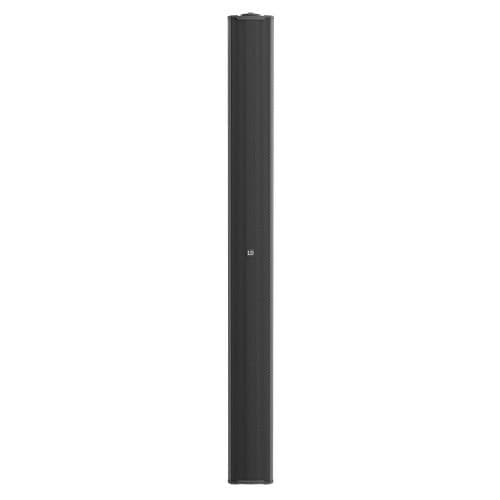

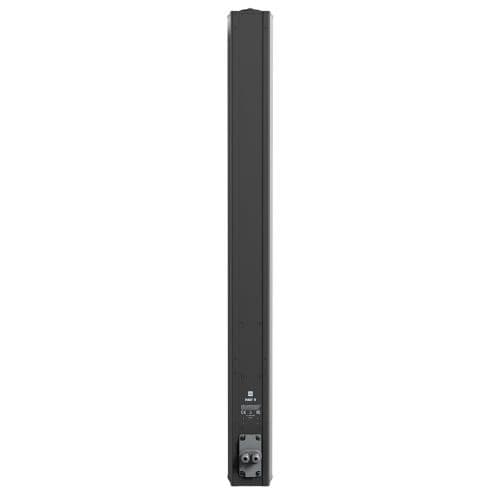

LD Systems MAUI i1 Passive Indoor/Outdoor Installation Column Loudspeaker
The LD Systems MAUI i1 installation column loudspeaker is the perfect solution for acoustically challenging interiors. Boasting nine 3″ mid-range drivers, two 1″ neodymium high-frequency drivers, as well as a specially developed BEM-optimized Waveguide. Avoiding unnecessary reflections on the floor and ceilings by keeping the vertical dispersion as narrow as possible. While also keeping the horizontal one as wide as possible.

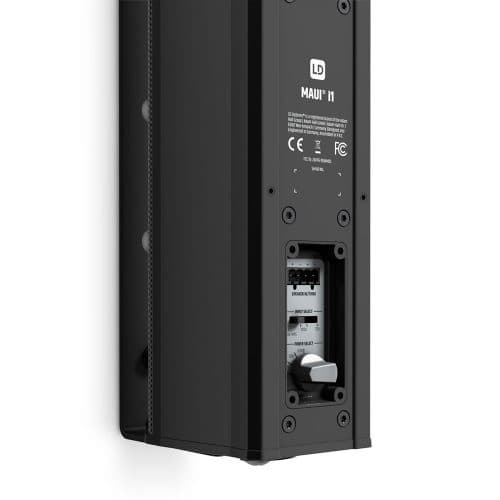

The MAUI i1 also has an 8 Ohm / 70V / 100V selector switch so you can easily integrate it into any constant-voltage audio system. Additionally, you can tap the power down to 60W, 30W, 15W, and 7.5W depending on how many speakers you need to run in parallel for a more efficient performance. At 8 Ohms, you’ve got access to the best frequency response and the highest 120 W RMS power rating.
Then, for outdoor use, the MAUI i1 features weather-treated cones, aluminum loudspeaker grille, and a weatherproof cover for your connection panel. Meaning no water can enter the panel and your Loudspeaker will stay rust-free!

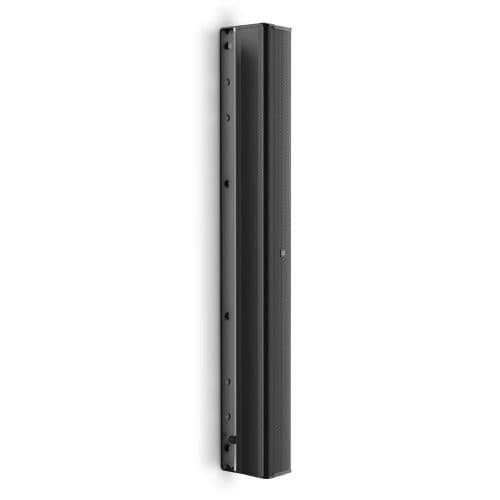

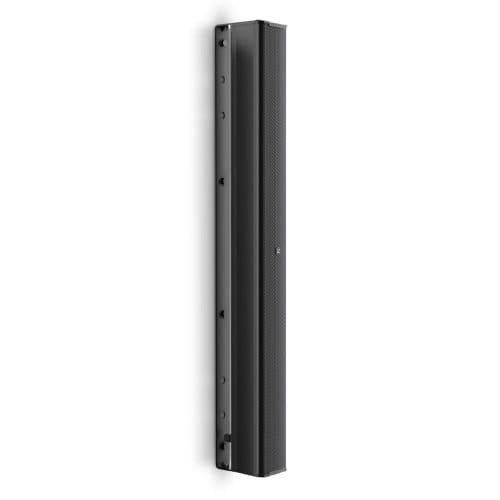

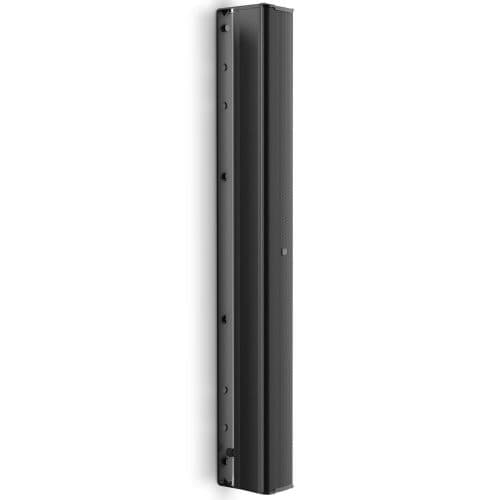

Finally, surface installation is easy thanks to the included U-Bracket. Allowing your speaker to blend unobtrusively and discreetly into almost any location.
Winning multiple awards, the MAUI i1 has been adapted for both indoor and outdoor applications. So it’s the perfect choice for you!
Features
- Surface-mounted passive column Loudspeaker with nine 3″ mid-range woofers and two 1″ neodymium tweeters
- BEM-optimized high-frequency waveguide for wide horizontal and controlled vertical dispersion
- 120 W RMS at 8 ohms

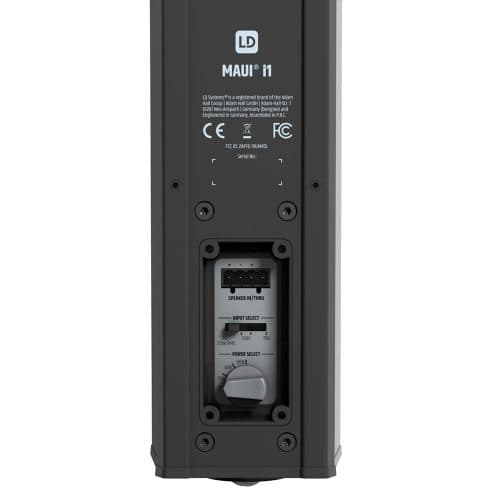

- Input selector switch: 8 ohms (transformer bypass) / 100 V / 70 V
- 70 V / 100 V power taps: 60 W, 30 W, 15 W, 7.5 W with low saturation transformer
- IP65 protection class, aluminum speaker grille, and weather treated cones

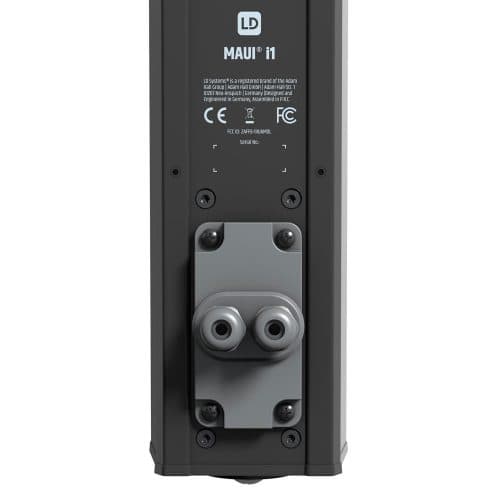

- Sealed connection panel cover for outdoor protection
- 4-Pole Terminal Block connector for parallel speaker connection
- Extensive passive audio crossover for balanced frequency response and Self-resetting overload protection for tweeters
- U-Bracket included; bracket for angled wall installation optionally available
Spec
Product type: Installation Loudspeakers
Type: Passive
Low/mid driver dimensions: 9 x 3 “
Woofer size: 76.2 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Horn BEM: optimized CD Horn
HF driver dimensions: 2 x 1 “
HF Driver Size: 25.4 mm
HF driver magnet: Neodymium
HF driver brand: Custom-made
Dispersion (H x V): 120° x 30
Load rating (RMS): 120 W
Peak power: 480 W
Frequency response: 130 – 19000 Hz
Crossover frequency: 2500 Hz
SPL (1W/1m): 94 dB
Max. SPL: 116 dB
Impedance: 8 Ohm(s)
Input selector switch: 70 V – 100V – 8 Ohms (transformer bypass)
100V Transformer: power taps 60 – 30 – 15 – 7.5 W
70V Transformer: power taps 60 – 30 – 15 – 7.5 W
Protection class: IP 65
Loudspeaker inputs: 1
Speaker input connections: 4-pin Euro Terminal Block (Pitch – 5,08 mm)
Cabinet material: Aluminum
Cabinet construction: Closed
Width: 85 mm
Height: 985 mm
Depth: 105 mm
Accessories (included) U-Bracket for surface mount
Optional Accessories: Bracket for tilt installation applications
Weight 8,6 kg
