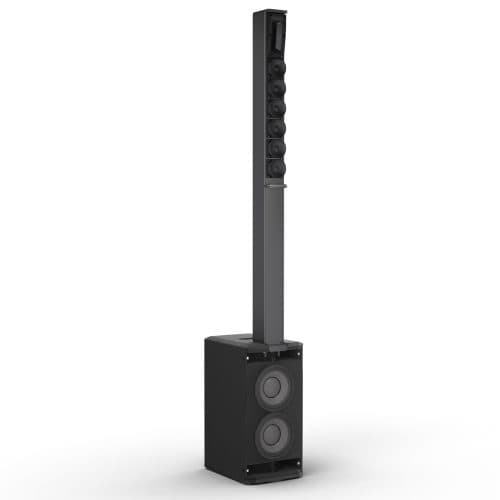

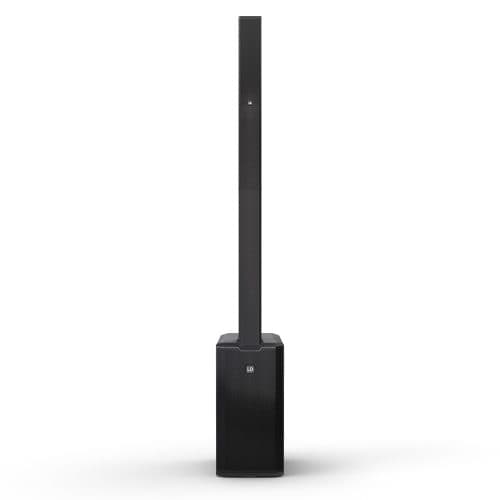

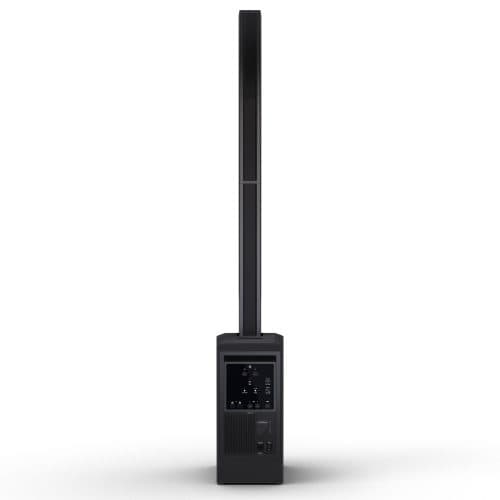

LD Systems MAUI11G3 Portable Cardioid Column PA System

Compact, powerful and easy to use – the LD Systems MAUI11G3 column PA remains the perfect companion for DJs and smaller bands. It is an unrivalled PA package in terms of sound, design, technology and handling. Set it up, plug it in, and you’re all set!

Features

• 1460 W Peak-power and 125 dB max. SPL

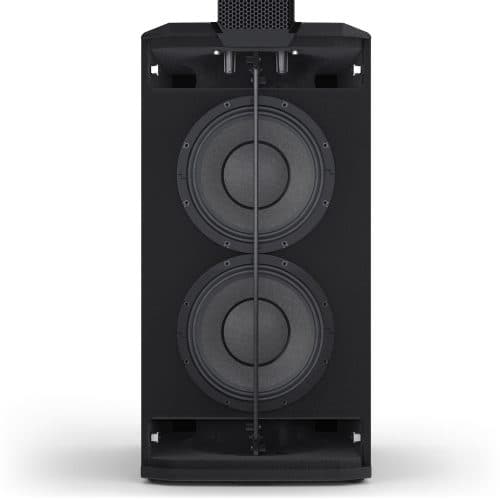

• Powerful bass reproduction with 2 x 8″ subwoofer

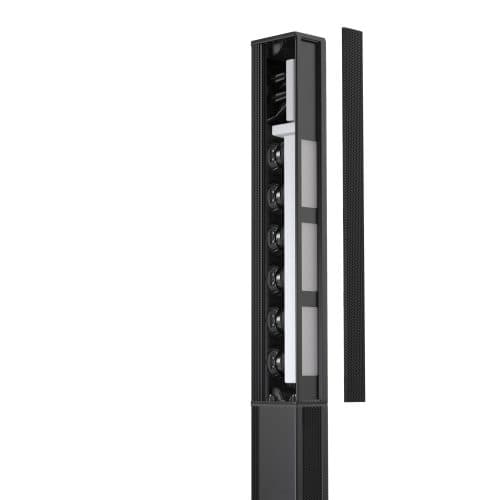

• Balanced mids thanks to 6 x 3.5″ full-range speakers
• Precise and silky highs with 2 x 1″ high-frequency drivers
• Cardioid column for controlled low-mid and midrange sound dispersion
• BEM optimised HF waveguide and midrange phase plugs for homogeneous dispersion
• Optimised bass-reflex design improves bass response and reduces air flow noise
• Can be combined with an additional MAUI® 11 G3 subwoofer for increased low end or for cardioid subwoofer setups
• Dynx® DSP (Gen.2) for distortion-free sound even at maximum volume
• AAC coding for HD Bluetooth® 5.0 streaming
• Automatic setup detection for quick and easy operation
• Fast and simple assembly without stands or cables
• Rugged birch plywood subwoofer housing with durable polyurea-coating
• Lightweight, powder-coated aluminium column housing

Spec

Product type: PA Complete Systems
Type: Powered
Colour: Black
Max. SPL (Peak): 125 dB
Frequency response (-10dB): 39 Hz – 20000 Hz
Dispersion: (H x V) 120° x 30 °
Total Height: 2052 mm
Weight: 30,7 kg
Features: Bluetooth Audio Streaming, Cardioid column, DSP-based Signal Processing, Excellent Sound Dispersion, Mono/ Stereo Application

Subwoofer
Woofer dimensions: 2 x 8 ”
Woofer dimensions (mm): 2 x 203 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 2 ”
Woofer voice coil (mm): 50.8 mm
Cabinet construction: Bass Reflex
Housing material: 15 mm Birch Plywood
Cabinet surface: Polyurea
Dimensions Subwoofer: (W x H x D) 305 x 607 x 403 mm
Subwoofer weight: 20.5 kg

Mid/Hi System
Midrange dimensions: 6 x 3.5 ”
Midrange dimensions (mm): 6 x 89 mm
Midrange magnet: Ferrite
Midrange brand: Custom-made
Midrange voice coil: 0.75 ”
Midrange voice coil: 19 mm
Tweeter dimensions: 2 x 1 ”
Tweeter dimensions (mm): 2 x 25.4 mm
Tweeter magnet: Neodymium
Tweeter brand: Custom-made
Tweeter voice coil: 1 ”
Tweeter voice coil (mm): 25.4 mm
Wave Guide: CD Waveguide
Loudspeaker inputs: 1
Speaker input connections: Custom-made multipin
Cabinet construction mid/high: Passive Cardioid
Mid/Hi system cabinet material: Aluminium
Mid/Hi system cabinet surface: Powder-coated
Mid/Hi system width: 103 mm
Mid/Hi system height: 1460 mm
Mid/Hi system depth: 135 mm
Mid/Hi system weight: 10.2 kg

Amplifier module (integrated in subwoofer)
Amplifier Class: D
System output (RMS): 730 W
System output (Peak): 1460 W
Protection circuits: DC protection, Multiband limiter, short circuit, thermal protection
Cooling: Convection

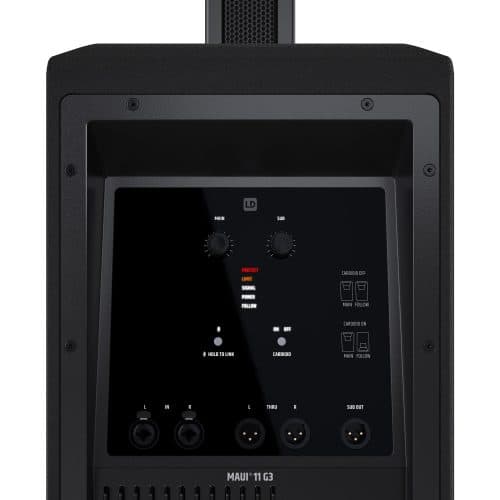

Controls: Bluetooth HOLD TO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub level
Indicators: Bluetooth, Cardioid On/Off, Follower mode, Limit, Power, Protect (protection circuit engaged), Signal, Subwoofer Mode
Mains connector: IEC power cable (included)
Operating voltage: 100 V AC – 120 V AC, 50 – 60 Hz, 220 V AC – 240 V AC, 50-60 Hz
Fuse: T 3.15AL / 250 V
Power consumption: 300 W
Ambient temperature (operating): 0 – 40 °C
Relative Humidity: < 80% (non-condensing)
Line Inputs: 2
Line Input Connectors: Combo XLR / TRS
Line Outputs: 1 x Sub OUT, 2 x THRU
Line Output Connectors: XLR male
Number of speaker outputs: 1
Loudspeaker Output Connectors: Custom-made multipin
Bluetooth Standard: A2DP
Bluetooth Audio Decoder: AAC, SBC

DSP characteristics
Bit depth AD/DA converter: 24 bit
Sampling frequency: 48 kHz
