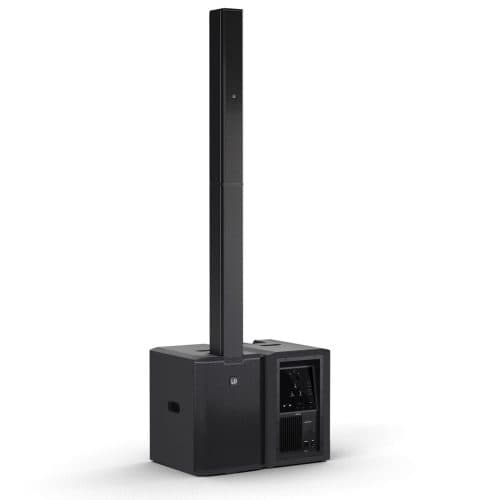

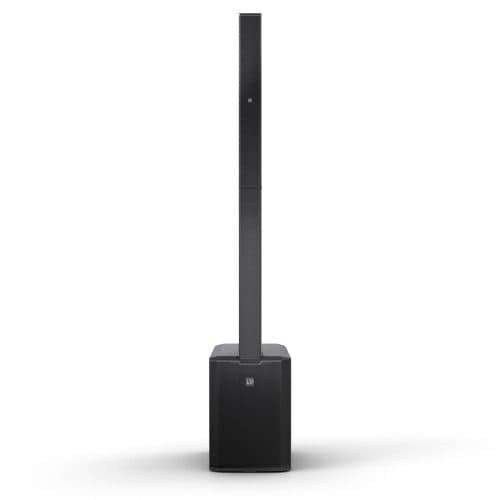

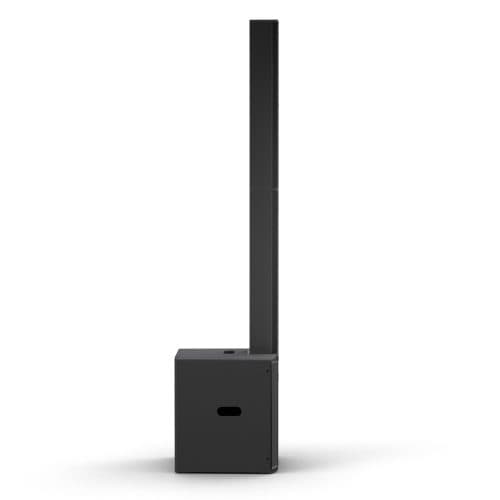

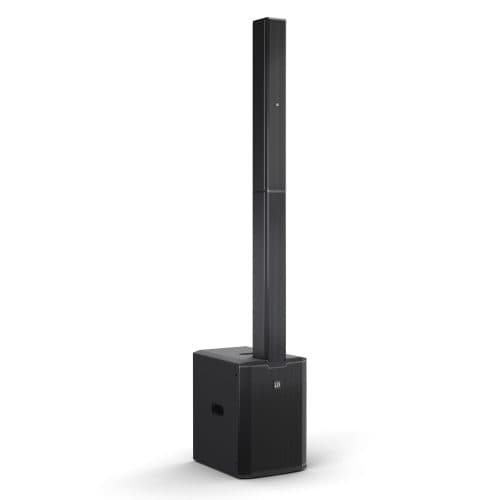

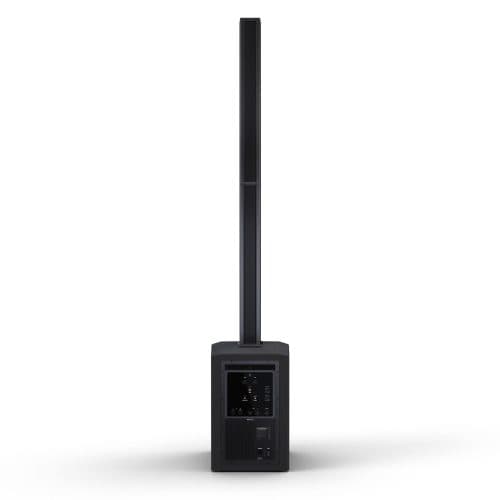

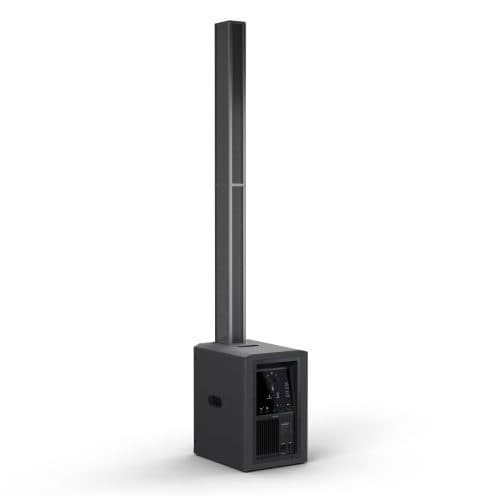

LD Systems MAUI28G3 Powered 12″ Cardioid Column PA System
The LD Systems MAUI series represents this all-in-one concept in every detail and offers an unrivalled PA package in terms of sound, design, technology and handling. Set it up, plug it in, and you’re all set!
Features
- 2060 W Peak-power and 127 dB max. SPL

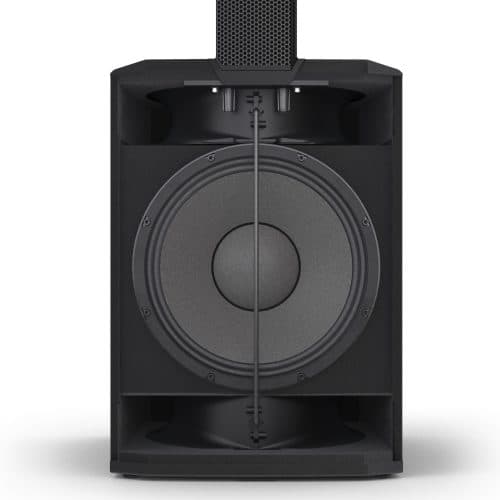

- Powerful and deep bass reproduction with 12″ subwoofer

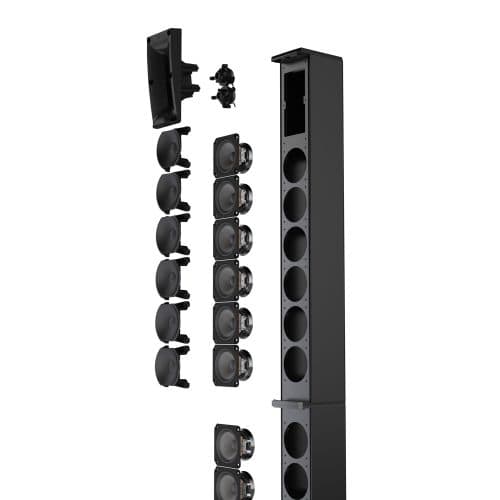

- Balanced mids thanks to 12 x 3.5″ full-range speakers
- Precise and silky highs with 2 x 1″ high-frequency drivers

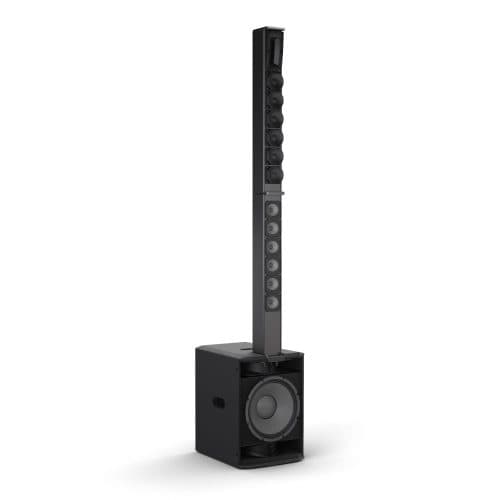

- Cardioid column for controlled low-mid and midrange sound dispersion
- BEM optimised HF waveguide and midrange phase plugs for homogeneous dispersion
- Optimised bass-reflex design improves bass response and reduces air flow noise
- Can be combined with an additional MAUI® 28 G3 subwoofer for increased low end or for cardioid subwoofer setups
- New Dynx® DSP (Gen.2) for distortion-free sound even at maximum volume

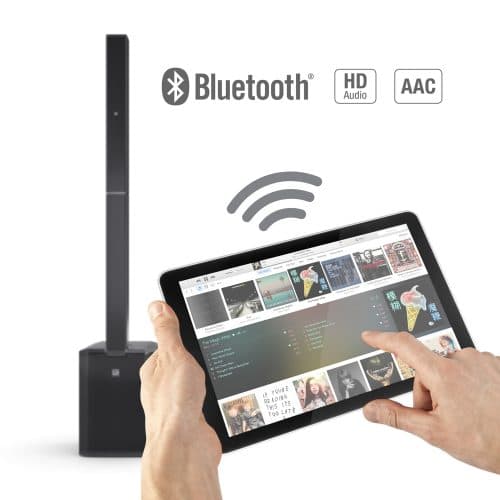

- AAC coding for HD Bluetooth® 5.0 streaming
- Automatic setup detection for quick and easy operation

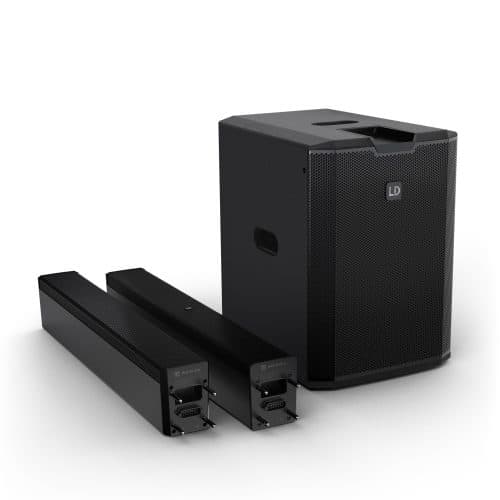

- Fast and simple assembly without stands or cables
- Rugged birch plywood subwoofer housing with durable polyurea-coating
- Lightweight, powder-coated aluminium column housing
Spec
Type: Active
Colour: Black
Max. SPL (peak): 127dB
Frequency response: 37Hz – 20kHz
Dispersion (H x V): 120° x 30°
Low/mid driver dimensions: 1 x 12″
Woofer voice coil: 3″
Midrange size: 12 x 3.5″
Midrange voice coil: 1″
Tweeter: 4 x 0.5
Tweeter voice coil: 1″
Amplifier: Class D
Amplifier Output System (RMS): 1500W
Amplifier Output System (Peak): 3000W
Protection circuits: DC protection , Multi-band limiter , short circuit , thermal protection
Cooling: Convection
Operating Temperature: 0 – 40°C
Humidity range: 0% – 80% rel. (non condensing)°C

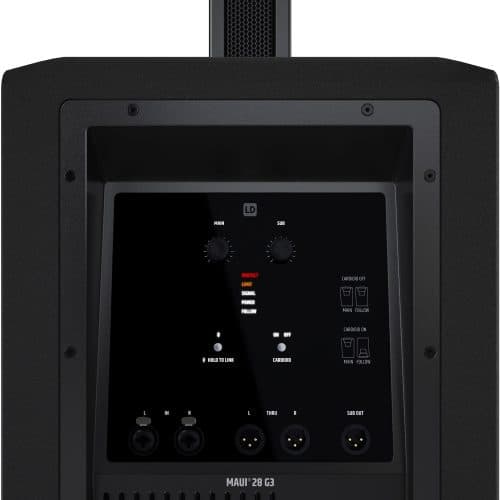

Controls: Bluetooth HOLD TO LINK button , Bluetooth STEREO LINK button , Cardioid On/Off , Main level , Power On/Off , Sub level
Indicators: Bluetooth, Bluetooth STEREO LINK , Cardioid On/Off , Limit , Power , Protect (protection circuit engaged) , Signal , slave mode , Subwoofer Mode
Bluetooth Protocol: A2DP Standard, Supporting AAC, aptX, SBC
Power connector: Neutrik PowerCON (power cable included)
Operating voltage: 220 V AC – 240 V AC, 50-60 Hz
Inputs: 2x XLR (Line)
Outputs: 2x XLR (line), 1x Sub Extension XLR (line)
Dimensions: (Sub): 434 x 634 x 637 mm
(Column): 103 x 1621 x 135 mm
Weight: (Sub): 36.4 kg
(Column): 11.2 kg
