LD Systems MAUI5GOCD – MAUI 5 GO CHARGING DOCK
The LD Systems MAUI5GOCD is a charging dock for your MAUI 5 GO in Black. This charging dock is a flexible alternative to the MAUI 5 GO’s built-in smart charger.

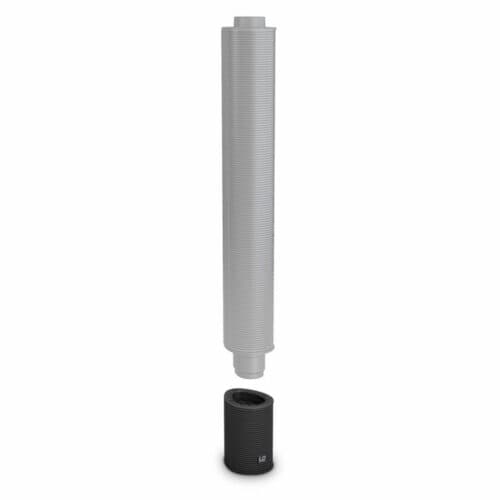

Featuring LD Systems’ Quick-Swap technology, it lets you recharge replacement battery elements while operating the MAUI 5 GO to provide virtually unlimited battery power.

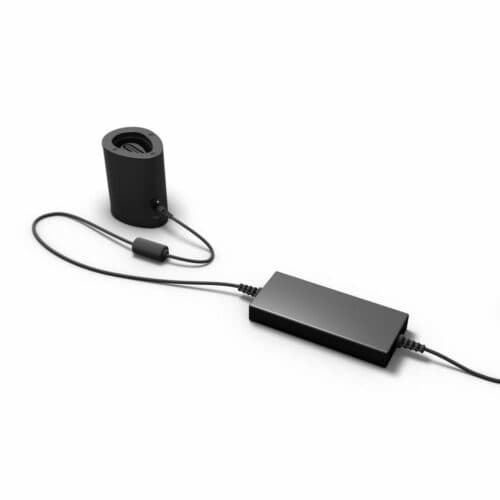

Charging takes only 2 hours to 80% and 3 hours to full capacity. The dock comes with a 100V – 240V multi-voltage power supply with overload, over-voltage and over-temperature protection.
MAUI 5 GO replacement batteries are available as accessories.
Features

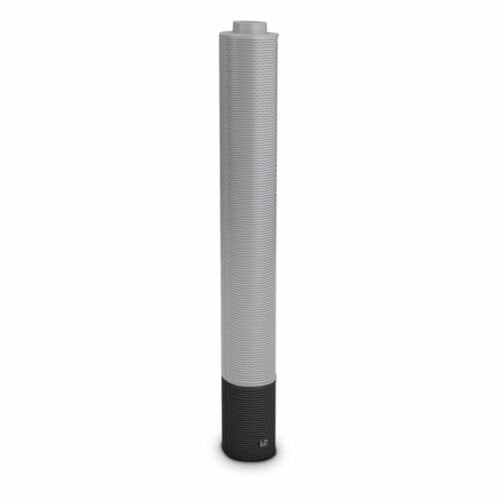

- The design matches that of the battery column
- Very short charging times: 80% capacity = 2 h, 100% capacity = 3 h
- Multi-voltage power supply included
Features
- The design matches that of the battery column
- Very short charging times: 80% capacity = 2 h, 100% capacity = 3 h
- Multi-voltage power supply included
Spec
Product type: PA Power Amplifier Accessories
Type: Loading Dock with Power Cable

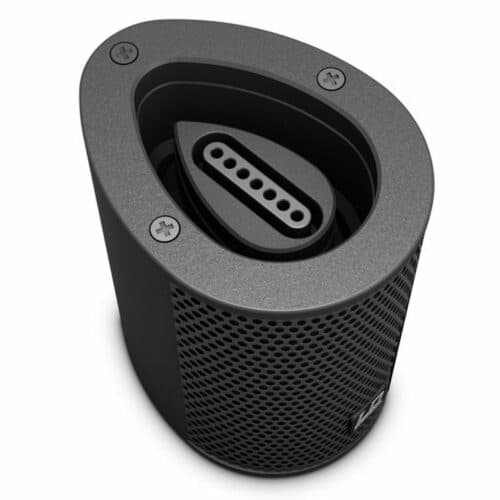

Connections Loading Dock: Low-voltage socket, multipin
Operating Voltage Loading Dock: 20 – 40 V DC
Protection Features Loading Dock: current limiter
Dimensions (W x H x D) Loading Dock: 81 mm x 125 mm x 106 mm
Weight Loading Dock: 0.31 kg
Input Voltage Power Cable: 100 V AC – 240 V AC, 50 – 60 Hz
Input Connector Power Cable: ICE Connector male
Rated Output Voltage Power Cable: 24 V
Output Current Power Cable: 5 A
Protection Features Power Cable: over-current, power supply overload, short circuit, thermal overload
Indicators: power LED
Dimensions (L x W x H) Power Cable: 167 mm x 67 mm x 35 mm
Weight Power Cable: 0.62 kg
