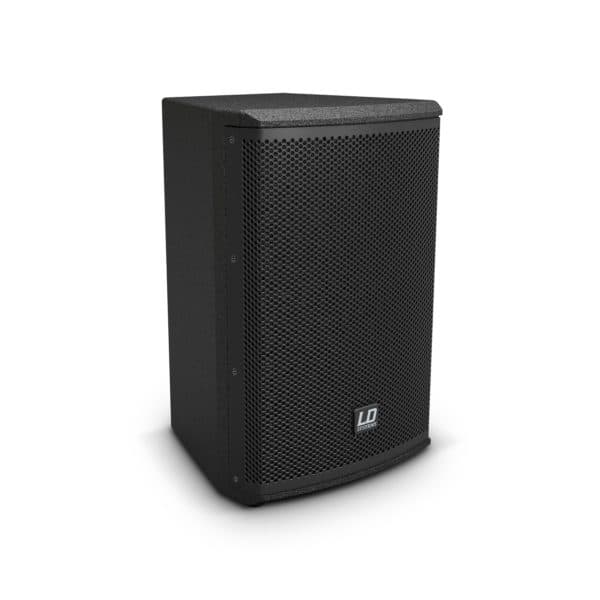

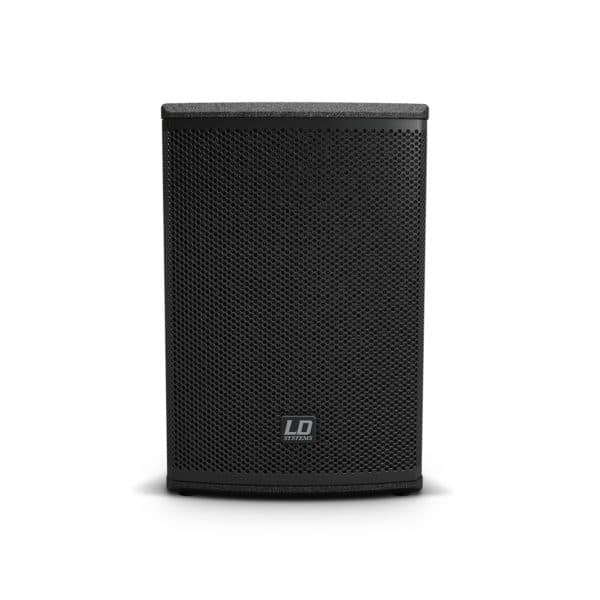

LD Systems Mix 62G3 Passive 6-Inch Slave Speaker



LD Systems Mix 62G3

The LD Systems Mix 62G3 passive 2-way loudspeaker has been designed as a companion to the active MIX 6 A G3 for small-scale PA and personal monitoring applications. It features the same 6.5″ custom woofer and 1″ HF driver complement, 80 Hz to 20 kHz frequency response and 80° x 70° dispersion delivering crystal clear sound with punch and detail. The rigid MDF enclosure features two 16 mm pole mounts for horizontal or vertical orientation. In a master-and-slave setup with the active unit, the MIX 6 G3 provides amazing performance and versatility in a lightweight, easily portable package.

Features

• Passive 2-way loudspeaker
• 280 watts peak power handling
• Tight and punchy bass reflex design
• 6.5” woofer and 1” HF driver, 80 Hz – 20 kHz

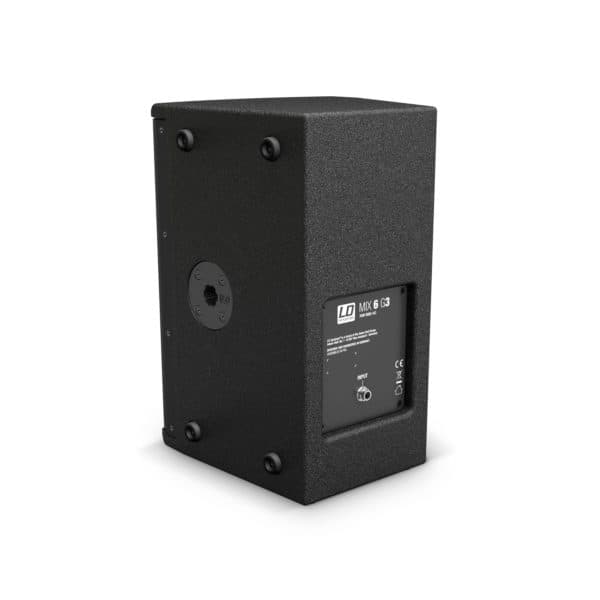

• 2 pole mount inserts for vertical and horizontal orientation
• Ideal as a slave unit to LD Systems MIX 6 A G3

Spec

Type: passive

Low/mid driver dimensions: 6.5 ” (165.1 mm)

HF driver dimensions: 1 ” (25.4 mm)

Dispersion (H x V): 80 x 70 °

Load rating (RMS): 70 W

Peak power: 280 W

Frequency response: 80 – 20 kHz

SPL (1W/1m): 90 dB

Max. SPL: 117 dB

Impedance: 4 Ohm(s)

Protection circuits: ICL (Intelligent Clip Limiting) , over-current , overload , short circuit , thermal overload

Loudspeaker inputs: 1

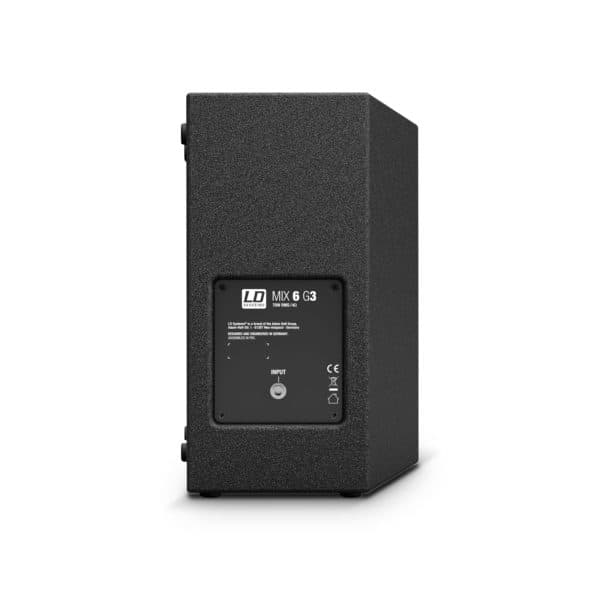

Speaker input connections: 6.3 mm jack

Loudspeaker outputs: 6.3 mm jack

Cabinet material: MDF

Cabinet surface: texture paint

Cabinet construction: vented

Dimensions: 214 x 323 x 221 mm

Weight: 4.4 kg
