LD Systems MIX102 G3 Passive Speaker



LD Systems MIX102 G3

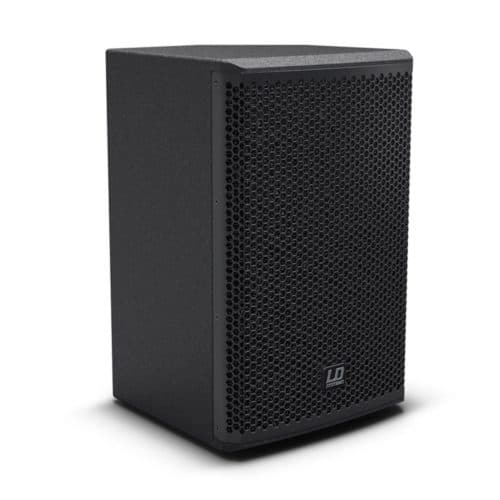

LD Systems MIX102 G3 Passive Speaker is a passive 2-way loudspeaker has been designed as a companion to the active MIX 10 A G3. The MIX 10 A G3 integrates a 7-channel mixer and Class D amplification with 2 x 400 watts peak power and makes this the optimal choice for small-scale PA and personal monitoring applications, accommodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players. Making this PA setup an ideal choice The built-in mixer provides 3 microphone channels with 2-band EQ, 48 V phantom power plus switchable hi-Z input (CH1) and stereo line channel and the compact bass reflex loudspeaker features a 10" custom woofer and 1" Celestion HF driver complement, 65 Hz to 20 kHz frequency response and 90° x 60° dispersion delivering crystal clear sound with punch and detail. The output's on the LDMIX102G3 provide a 3-band master EQ for overall tone shaping, 4-segment LED metering and XLR monitor and subwoofer outputs. In addition, the LD MIX 10 A G3 sports a DSP with 16 effect presets, limiter and overcurrent, overload, short circuit, and thermal protection. A speakON output allows powering the passive LD MIX 10 G3 to easily create a stereo setup. The rigid enclosure is constructed with tough plywood with a slick & road-proof metal grill the Compact 2-way cabinet provides extremely brilliant and clear sound quality. Featuring a 50° monitor angle and Dual-Tilt pole receptacle for 0° or 5° mounting angles. On its own or in tandem with the passive unit, the LD MIX 10 A G3 provides amazing performance and versatility in a lightweight, easily portable package.

Features

• Passive 2-way loudspeaker
• Ideal as a slave to MIX 10 A G3
• 10” custom woofer and 1” Celestion HF driver
• 200 watts RMS power handling
• 121 dB maximum SPL
• Rugged birch ply cabinet

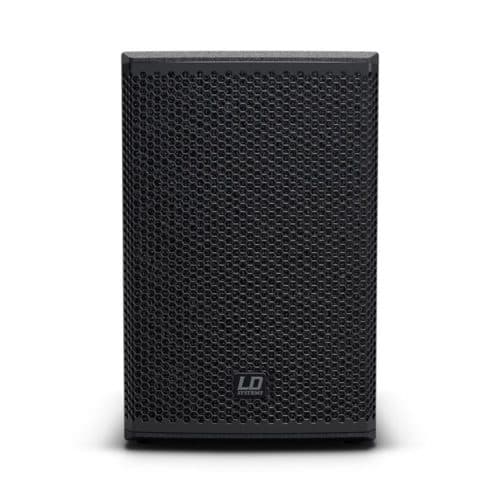

• Shock-resistant front grill provides maximum speaker protection
• 36 mm dual-tilt pole receptacle for 0° or 5° orientation

Spec

Product type: PA loudspeaker

Type: passive

Low/mid driver dimensions: 10 ”

Woofer size: 254 mm

Woofer magnet: Ferrite

Woofer brand: Custom-made

Woofer voice: coil 2 ”

Woofer voice coil (mm): 50.8 mm

Horn: CD horn

HF driver dimensions: 1 ”

HF Driver Size: 25.4 mm

HF driver: magnet Ferrite

HF driver brand: Celestion

HF driver: voice coil 1 ”

HF Driver: Voice Coil 25.4 mm

Dispersion (H x V): 80 x 70 °

Load rating (RMS): 200 W

Peak power: 400 W

Frequency response: 65 – 20.000 Hz

SPL: (1W/1m) 95 dB

Max. SPL: 121 dB

Impedance: 4 Ohm(s)

Protection circuits: HF Driver

Loudspeaker: inputs 1

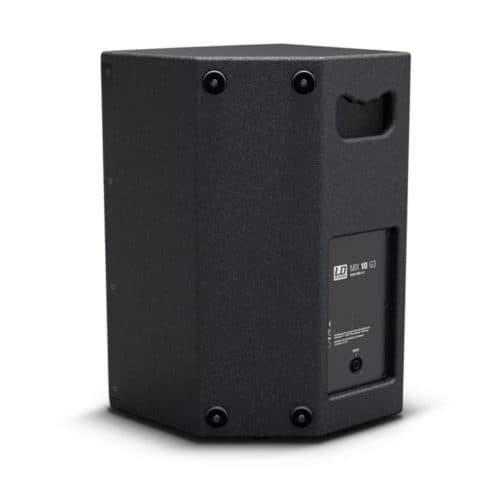

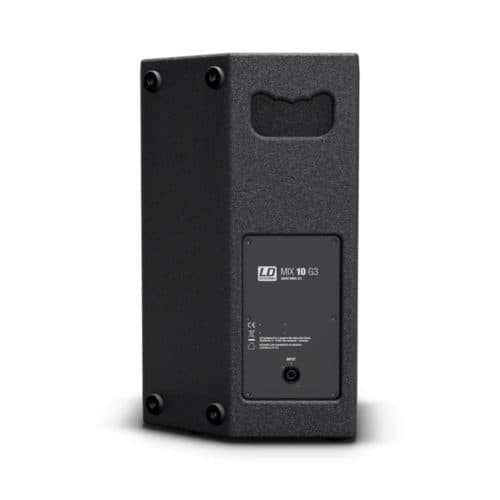

Speaker input connections: Speakon compatible

Cabinet material: 16 mm Plywood

Cabinet surface: PA painting

Cabinet construction: vented

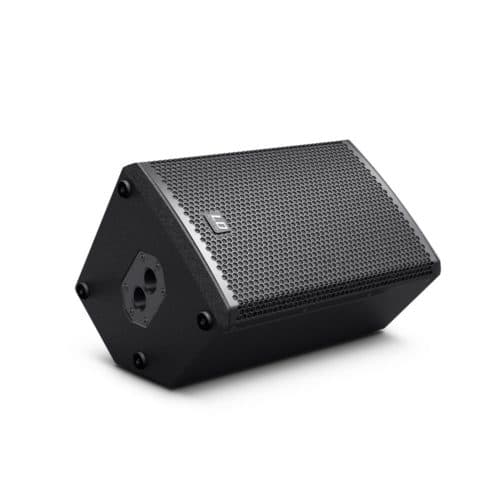

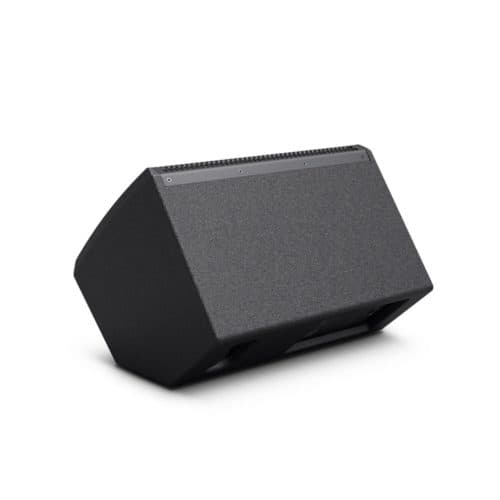

Monitor angle: 50 °

Width: 315 mm

Height: 489 mm

Depth: 307 mm

Features: dual-tilt flange (0°/5°) , Ergonomic handle

Weight: 10,8 kg
