LD Systems MIX62 G3 Set 2-Way Speaker Pair with Mixer



LD Systems MIX62 G3 Set

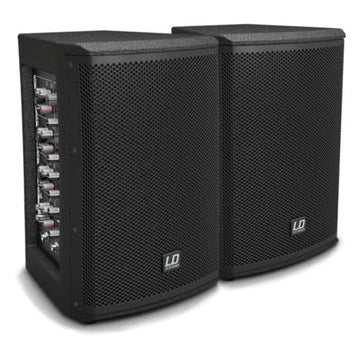

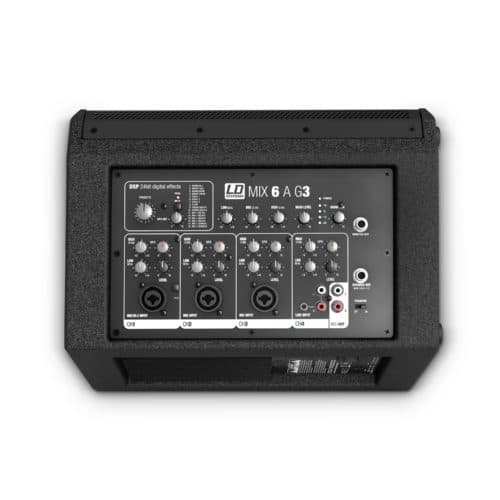

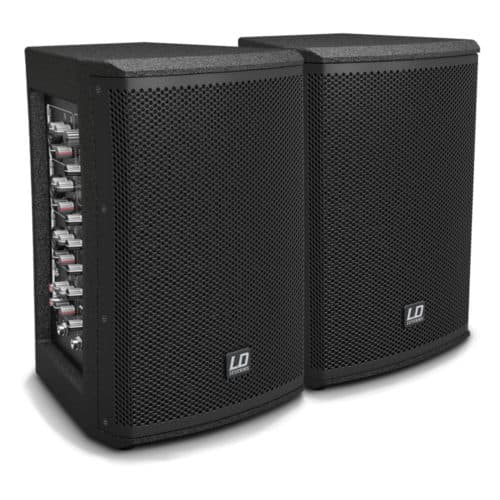

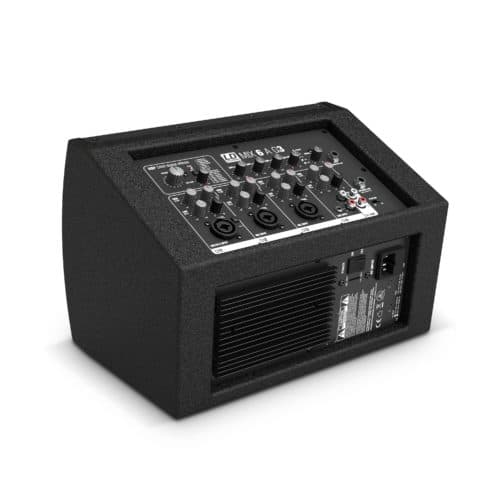

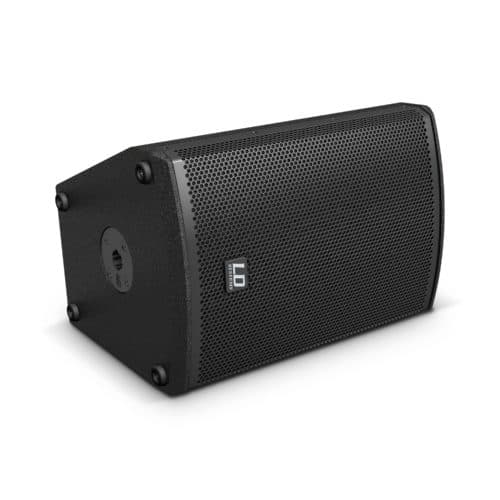

The LD Systems MIX62 G3 Set is pair of the impressive 6" 2-way speakers designed for live music and public address. The system comprises of the active (master) speaker which has the amp and mixer and a passive slave that extends your sound and provides a true stereo experience. The mixer accommodates a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players. Providing 3 microphone channels and a stereo line channel with 2-band EQ each plus switchable hi-Z input and 15 V phantom power. The Mix 62A G3 output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering, an adjustable monitor and RCA recording outputs. In addition, the LD MIX 62 A G3 sports a DSP with 16 effects presets, limiter and overcurrent, overload, short circuit, and thermal protection. The salve system connects directly to the passive output for dual speaker setups. Both speakers feature robust construction, made from rigid MDF and each fitted with a custom 6.5" woofer and 1" HF driver complement. Delivering a frequency range of  80 Hz to 20 kHz and coverage angle of 80° x 70°  with crystal clear and punchy sound. Perfect for soloists, duos, and smaller groups.

Features

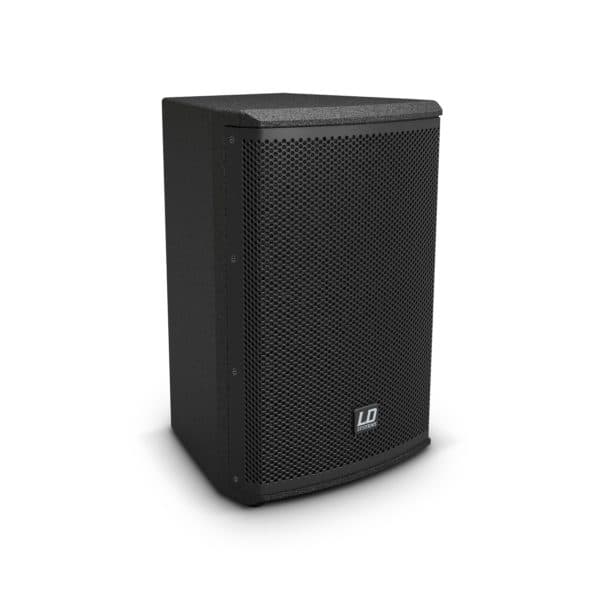

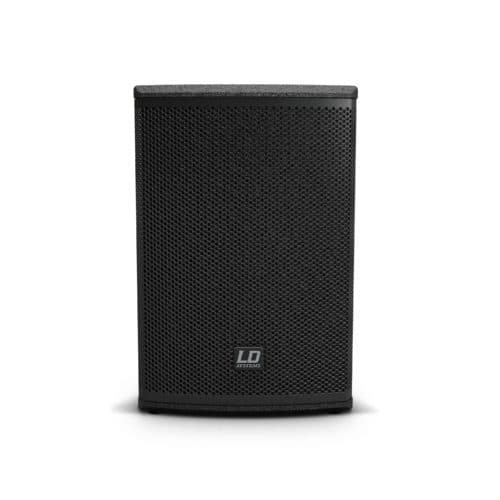

• Passive 2-way loudspeaker
• 280 watts peak power handling
• Tight and punchy bass reflex design
• 6.5” woofer and 1” HF driver, 80 Hz – 20 kHz
• 2 pole mount inserts for vertical and horizontal orientation
• Ideal as slave unit to LD Systems MIX 6 A G3

Spec

Product type: PA loudspeaker set

Type: master/slave pair

Low/mid driver dimensions: 6.5 ” (165.1 mm)

HF driver dimensions: 1 ” (25.4 mm)

Dispersion (H x V): 80 x 70 °

Load rating (RMS): 70 W

Peak power: 280 W

Frequency response: 80 – 20.000 Hz

SPL (1W/1m): 90 dB

Max. SPL: 117 dB

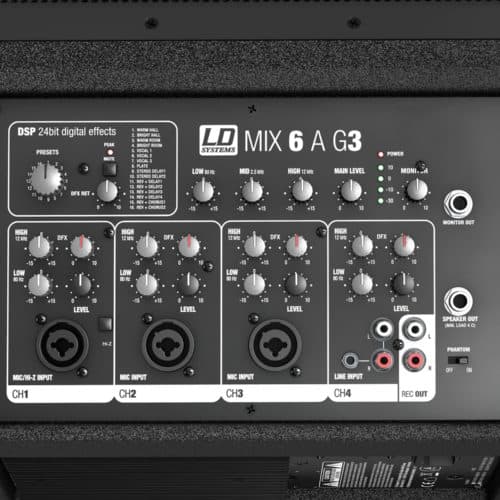

Mixer Channels: 4 (3 Mic / 1 line)

Mixer Inputs: 3x Combi Jack inputs (mic), 1x 1/8″ jack (line), 1x Stereo RCA (line)

Mixer Outputs: 1x 1/4″ TS Jack (powered output – 280W peak),  1x 1/4″ TS Jack(monitor, unpowered) 1x stereo RCA (record)

Phantom Power: 15V selectable CH1-3

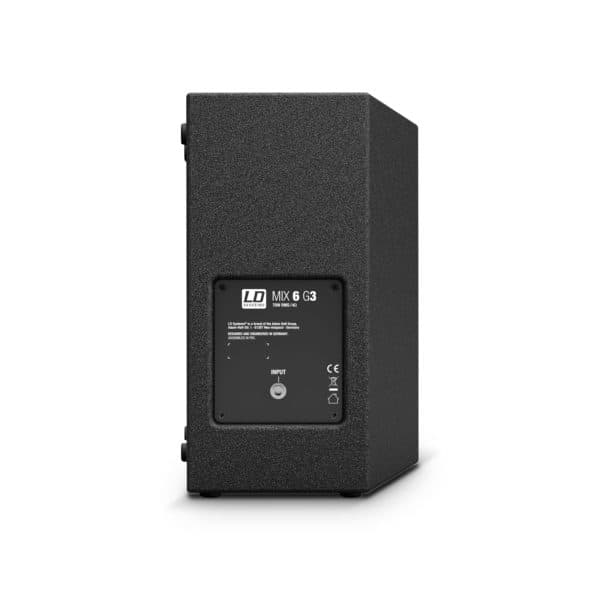

Passive Speaker Connections: 6.3 mm jack



Cabinet material: MDF

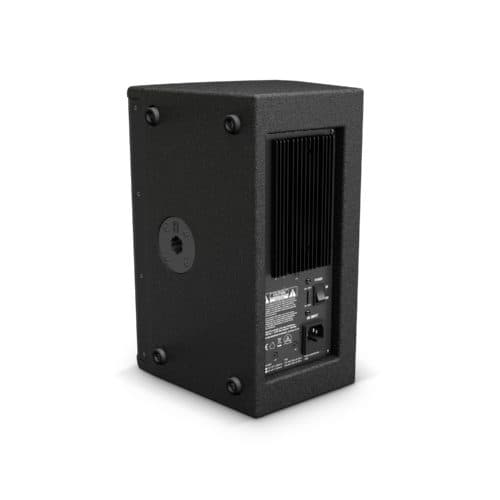

Power Supply: 240V AC / 50Hz (IEC Connector)

Dimensions: 214 x 323 x 221 mm (each)

Weight: 11.4 kg (set)
