LD Systems MS828 19″ 8-Channel Splitter/Mixer



LD Systems MS828

The LD Systems MS828 is a mixer, splitter, and booster amplifier in 19” rack format for flexible live and studio applications. The LDMS828 has one stereo and six mono channels with individual LED level metres; all inputs and outputs are electronically balanced. Two mono channels are equipped with stereo TRS sockets, the other connectors are XLR sockets. The stereo channel has individual volume controls for input and output and a link button for looping through the signal; each mono channel has volume and panorama controls as well as a button that toggles between the splitter and mixer functions. TheLDMS828 by LD Systems is impressive not only because of its practical features, but also because of its technical specifications. The broad frequency response of 5 - 40,000 Hz, a dynamic range of 85 dB, and the extremely low total harmonic distortion of 0.0008% guarantee maximum signal fidelity. The nominal working level of -10 dBV to +4 dBU makes the mixer/splitter suitable for connection to both professional and consumer equipment.

Features

• 8 channel mixer / splitter with mono & stereo inputs / outputs
• Ultra high fidelity with 0.0008% total harmonic distortion
• Perfect for zone controlling active speakers
• Used as a small line leve PA mixer

Spec

Product number: LDMS828

Product type: Mixers

Type: Installations

Channels: 8

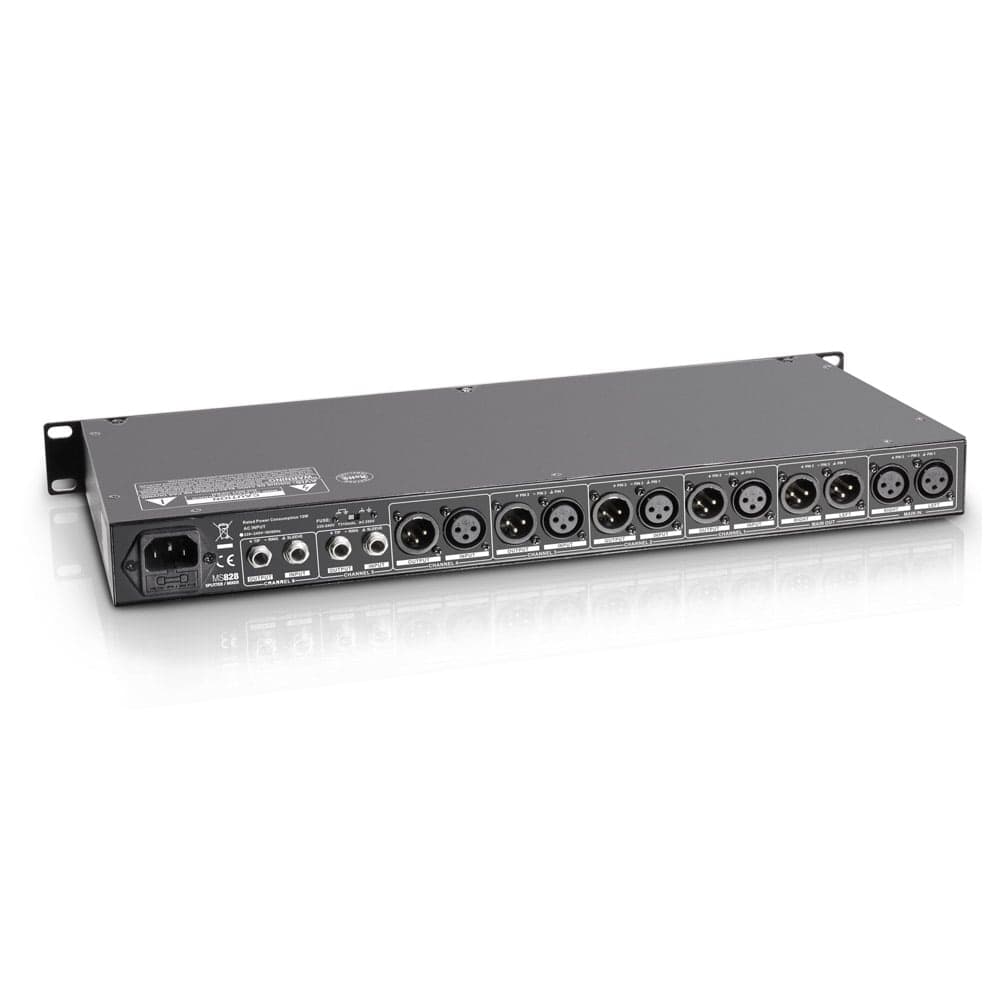

Mono input channels, line: 4 x XLR, 2x 1/4″ Jack

Stereo Input Channels: 1x XLR (L & R)

Mono output channels: 4 x XLR, 2x 1/4″ Jack

Stereo output channels: 1x XLR (L & R)

Frequency response: 5 – 40000Hz

THD: 0.0008 %

S/N Ratio: 85dB

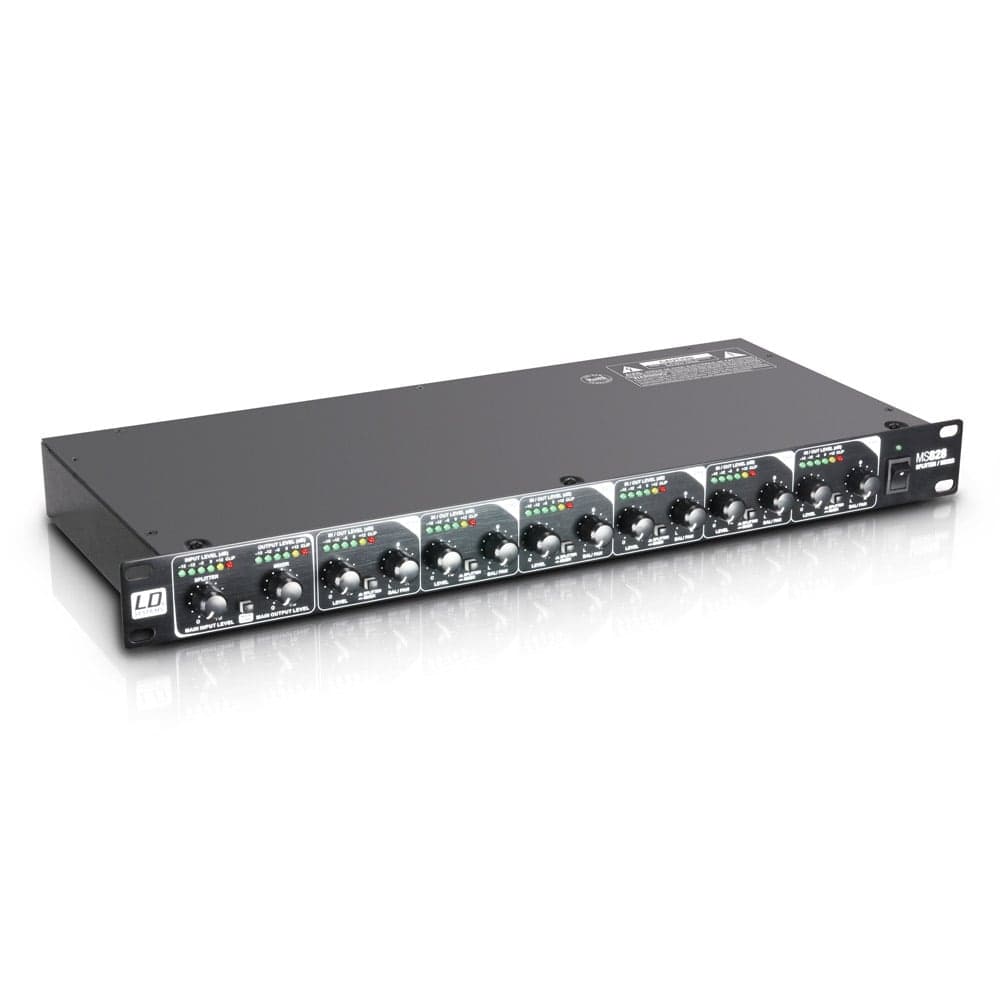

Controls: Power, Main Link, Main Output Level, Splitter/Mixer Channel 1-6, Main Input Level, Level Channel 1-6

Indicators: In/Out Level Channel 1-6 (6 -segment), Input Level LED Indicator (6-segment), Power, Output Level Indicator (6-segment)

Operating voltage: 220 V AC – 240 V AC, 50-60 Hz

Mains connector: IEC power connector

Power consumption: 15W

Fuse: T 315 mAL, AC 250V

Dimensions: 483 x 44.5 x 216 mm

Weight: 3kg
