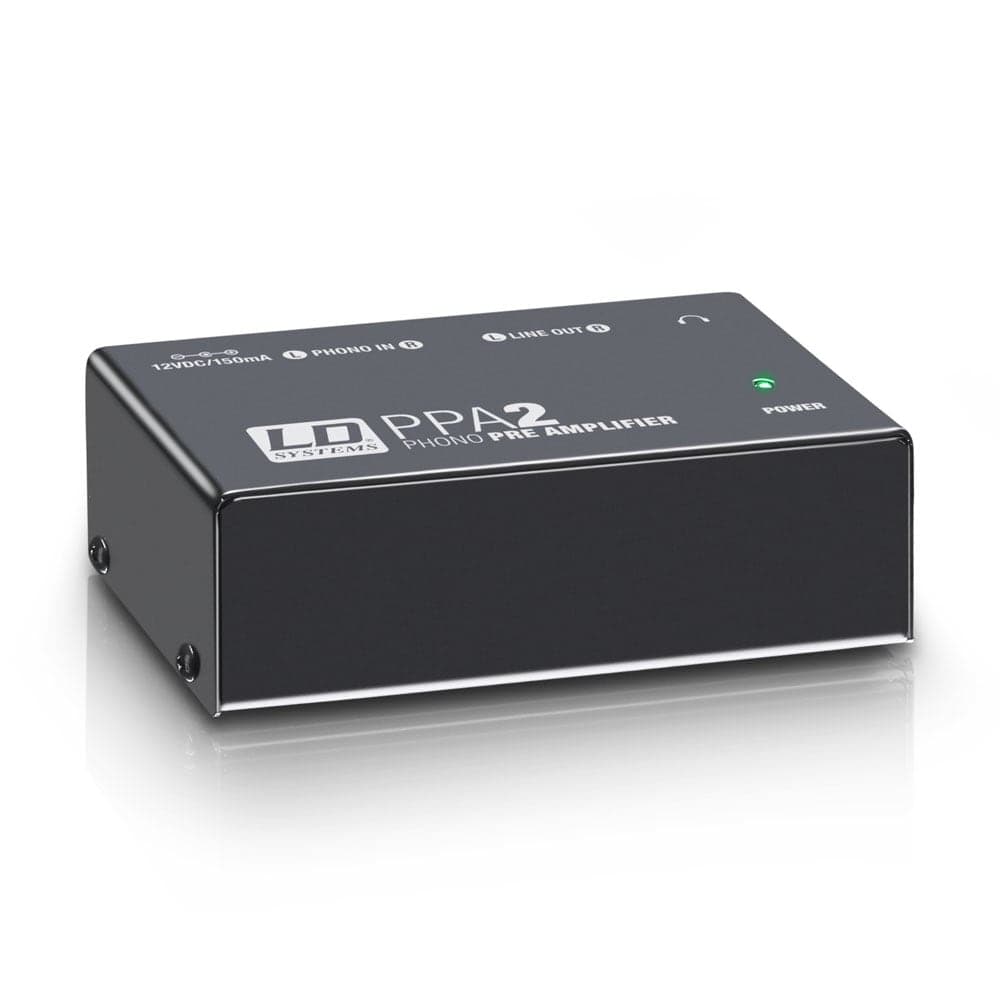

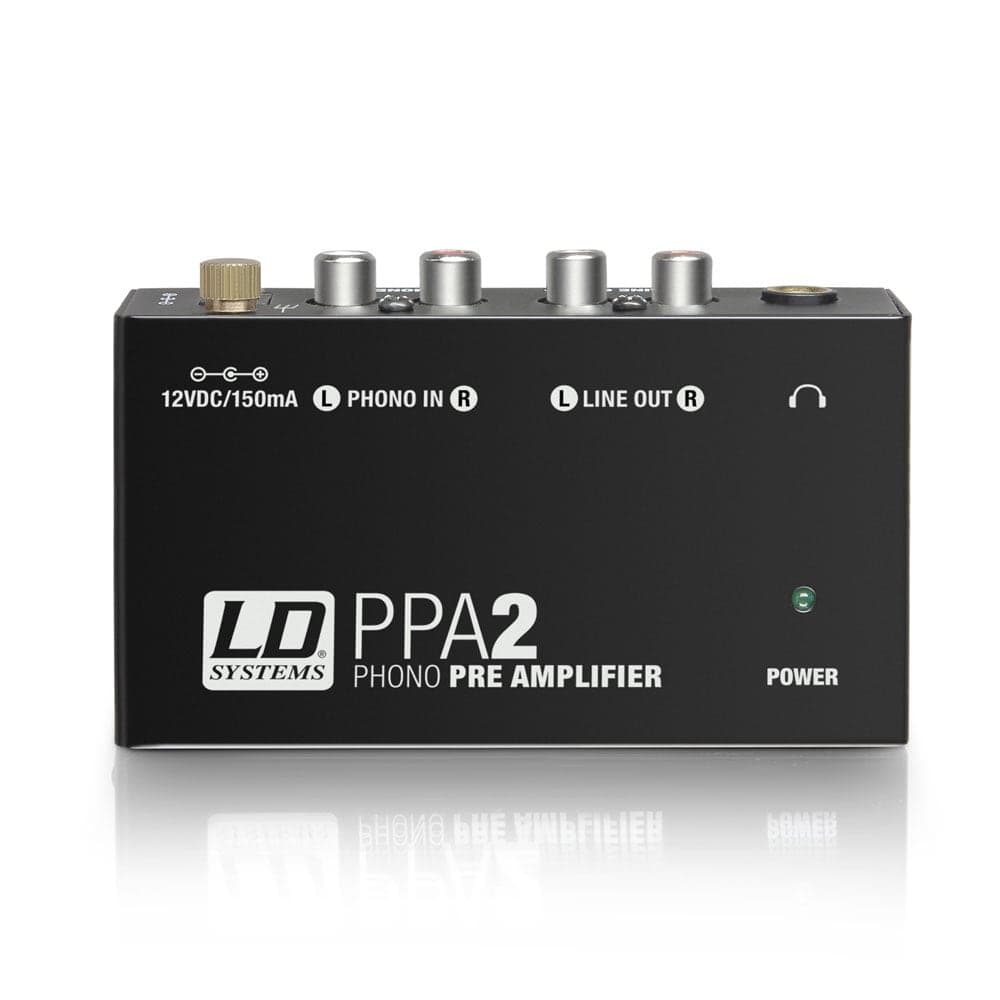

LD Systems PPA2
The LD Systems PPA2 is a very compact analogue phono preamplifier, which equalises the extremely low output signal of conventional turntables to RIAA standards. It allows you to connect to devices without any phono input, such as mixers, PA power amplifiers or sound cards. The phono inputs are designed as RCA jacks, just like the line outputs; the PPA 2 also has a screw terminal for the ground conductor of the turntable and a 6.3 mm stereo jack for connecting a headset. The THD factor of the preamplifier is below 0.05% and the channel separation is -75 dB. The LD Systems PPA 2 uses a 12 V AC adapter; a bright LED indicates the power supply on the top of the sturdy metal chassis.Features
- Ultra compact phono preamplifier and equalizer
- Proper RIAA equalization
- RCA inputs and outputs
- 6.3 mm stereo headphone output connector
- Sturdy metal housing
- 12 V AC/DC adapter included
Spec
Product number: LDPPA2
Product type: Other Studio and Recording Equipment
Type: Stereo Input / Stereo Output
Frequency response: RIAA CurveHz
Signal-to-noise ratio: 70dB
THD: <0.05%
Crosstalk: -75dB
Max. input level: -23.5dBV
Max Output Level: +10dBV
Input impedance (kOhms): 47kOhm
Output impedance: 50Ohm(s)
Indicators: power LED
Inputs: 1 x Phono Stereo

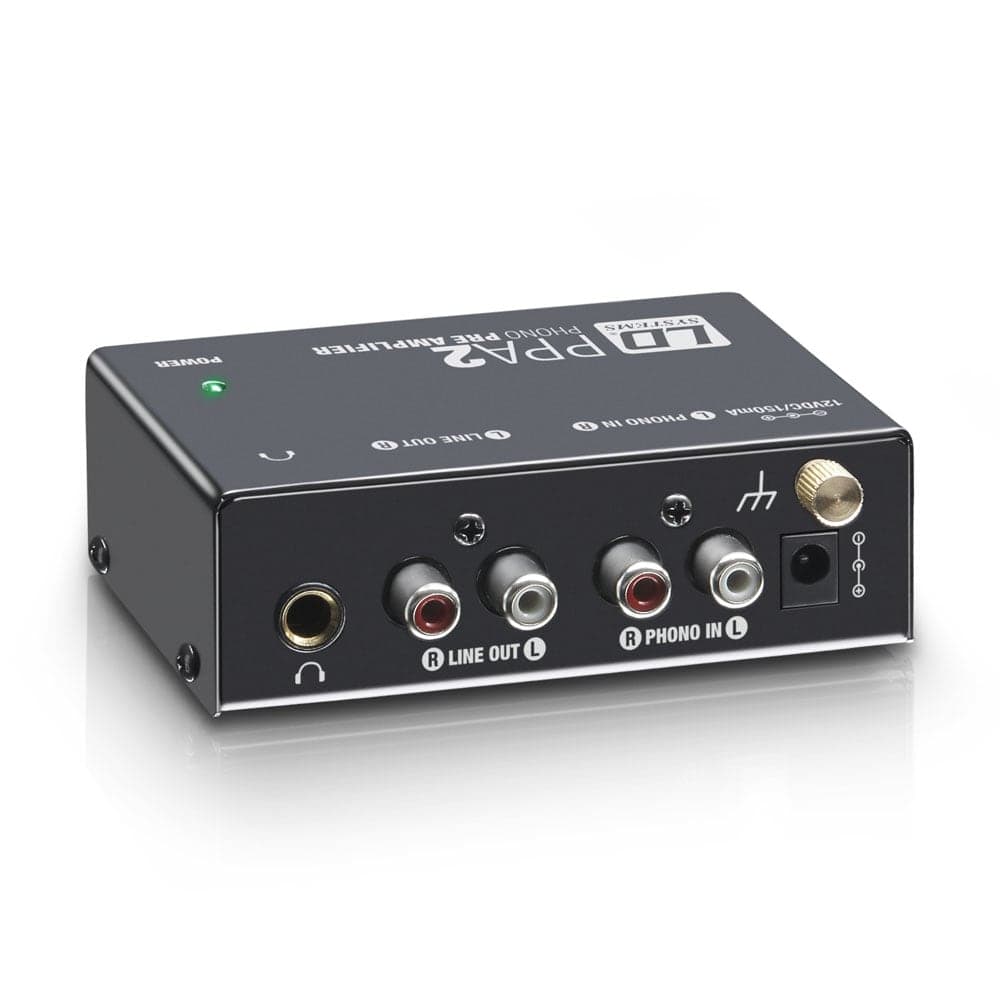

Input connectors: Earth terminal, 2 x RCA
Line outputs: Headphones, Line Stereo
Line output connectors: 2 x RCA, 6.3 mm TRS
Operating voltage: External Power Supply, 12 V DC (included)
Current draw: 0.15A
Dimensions: 104 x 36 x 67 mm=
Weight: 0.28 kg
