LD Systems RSMP Radio Streaming Media Player

With the RSMP, LD Systems has an all-in-one media player in its portfolio that covers a multitude of sources and gives users every freedom in content management.

Universal media player

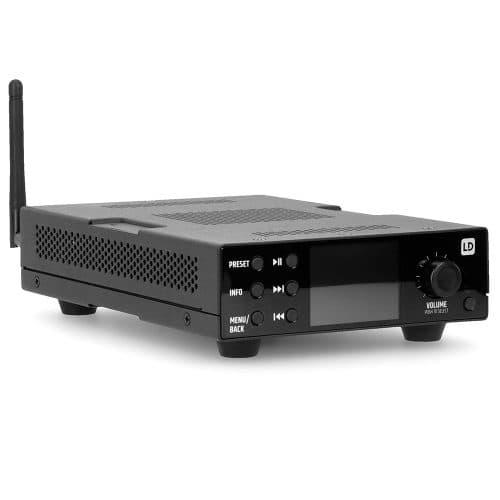

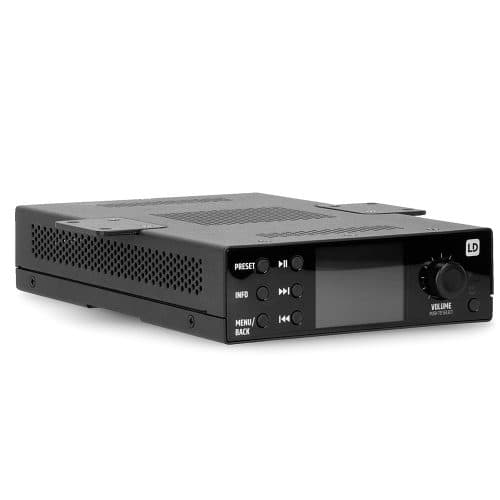

The LD Systems RSMP is a universal media player for permanent sound reinforcement solutions. It combines an integration of FM, DAB and DAB+ tuner, Spotify, Amazon Music and Deezer streaming, Internet radio as well as a USB media player for playing MP3 files via a USB stick – and all this in an extremely compact housing that requires only a third of the width of a 19” rack (1U).

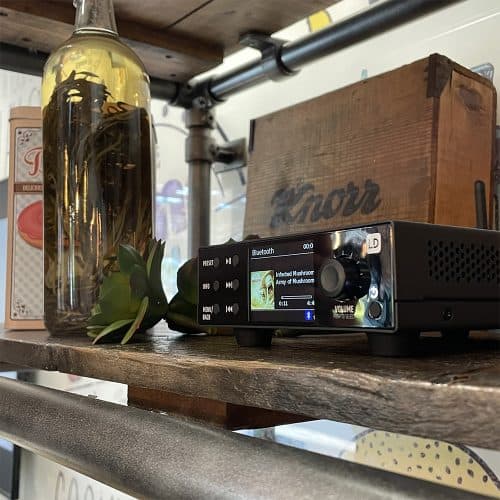

An optional rack tray allows three RSMPs to be side by side in the rack to save space. Even more flexibility is provided by the rubber feet supplied. It helps for table use and other accessories for mounting on the wall or under a tabletop.

Internet Radio

The Internet Radio Module enables worldwide reception of more than 50,000 Internet radio stations. The connection to the Internet is either via LAN port or dual-band WLAN (2.4 GHz and 5 GHz). An FM and a DAB+ tuner are available for the playback of conventional radio programmes.

Compatibility with the Streaming Services

Maximum content freedom for music and podcasts is provided by compatibility with the streaming services using RSMP. The use of the Bluetooth 5.0 radio standard ensures secure transmissions and long ranges when streaming. The integrated MP3 music player with USB-A 2.0 interface is also suitable as a local playout option.

Independent Preset Storage Locations

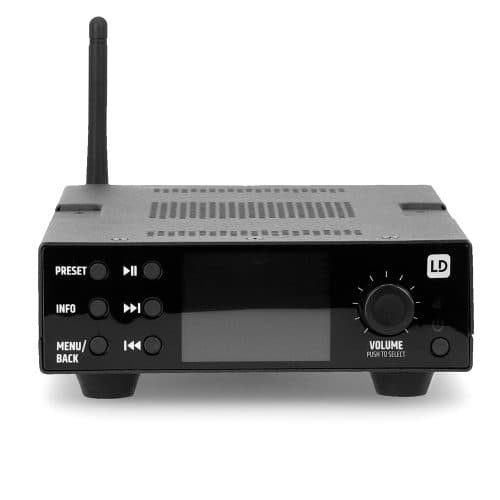

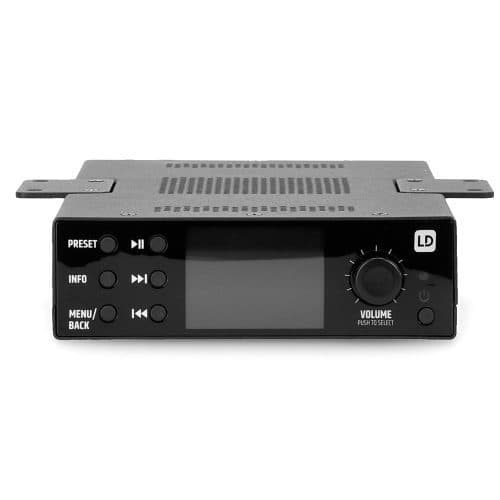

For convenient content selection, the RSMP Radio Streaming Media Player provides independent preset storage locations for Internet Radio/Podcast, FM, DAB+, Spotify and Amazon Music. In addition, the combination of a large 2.4” colour display, quick access buttons and rotary controls makes configuration easy.

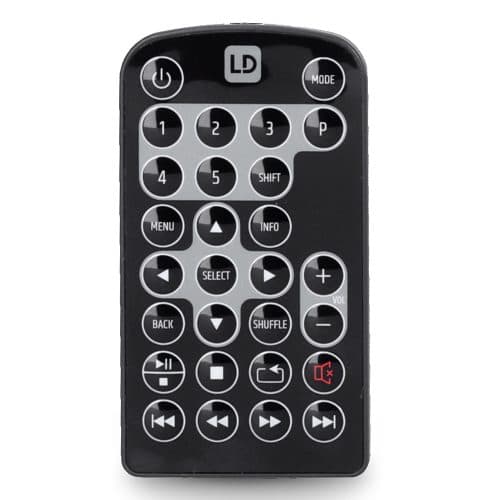

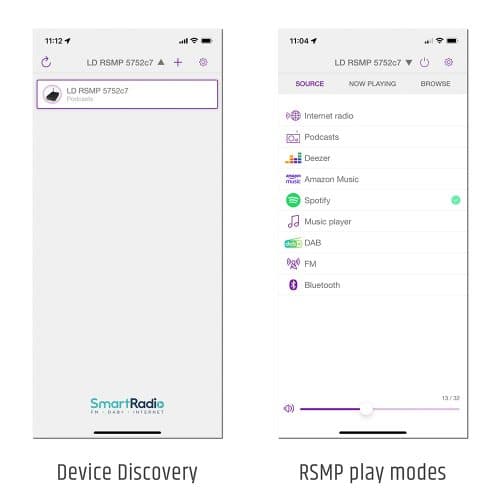

Using the free UNDOK app from Frontier Smart Technologies (iOS & Android), the RSMP can also be conveniently controlled via a smartphone or tablet, including source and media selection. In parallel, the RSMP is comes with an infrared remote control.

RSMP Key Highlights:

• Multi-source content player
• Streaming via Spotify Connect, Amazon Music and Deezer
• Reception of more than 50,000 Internet radio stations

Features

• Multi-source content player
• Streaming via Spotify Connect, Amazon Music and Deezer
• Reception of more than 50,000 Internet radio stations
• Integrated FM and DAB/DAB+ tuner
• MP3 audio player with USB 2.0 Type-A interface for USB sticks
• Bluetooth 5.0 standard for streaming and control
• Compatible with free UNDOK Remote app (iOS/Android)
• Internet connection via LAN and WLAN (2.4 GHz & 5 GHz)
• Large 2.4” colour display
• Remote control included

Spec

Product type: Installation Media Player
Audio modes: Audio Streaming services, Bluetooth Audio Receiver, DAB/DAB+, FM Radio, Internet Radio, USB Player (.mp3)

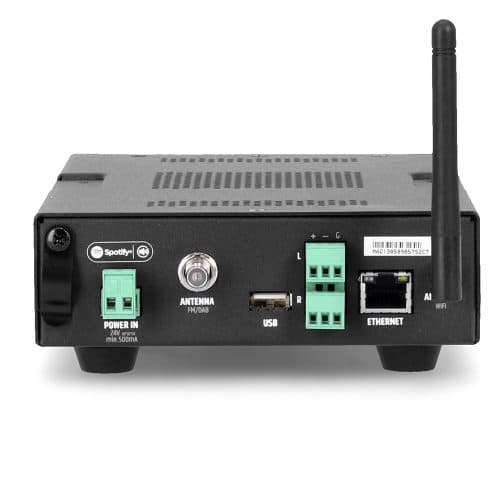

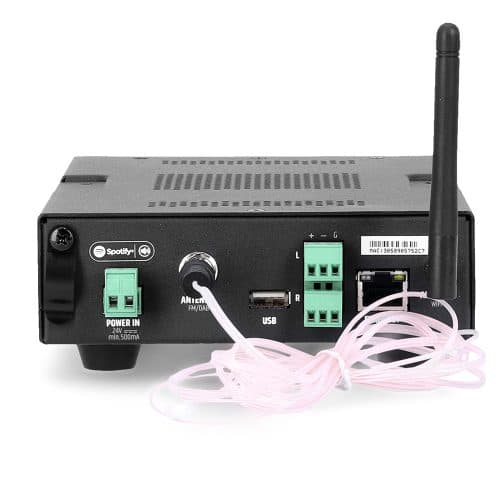

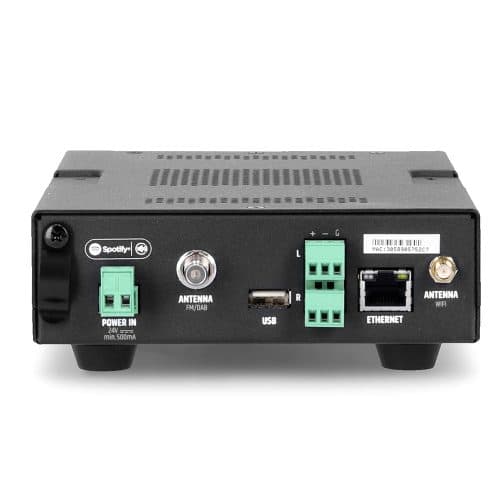

Outputs: 1 x Balanced Stero Line out (via terminal blocks)
Output type: Balanced stereo line signal
Bluetooth Standard: 5.0

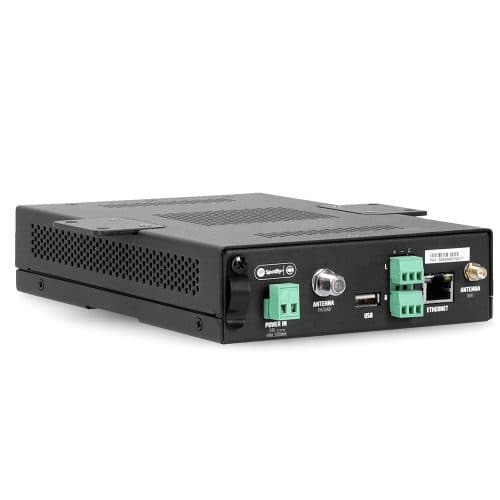

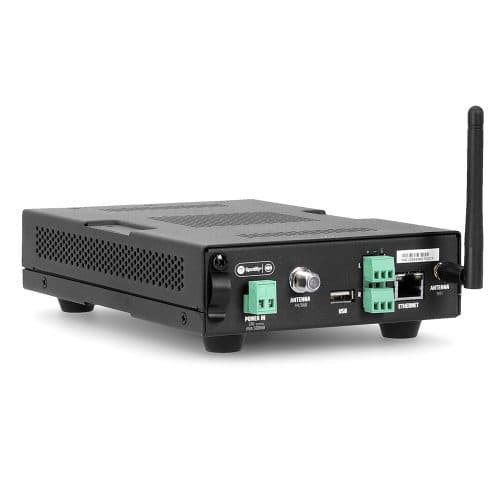

Network: Wired (RJ45) & Wireless (2.4GHz & 5GHz Bands)
Display: 2.4″ TFT Colour Display
Cooling: Convection

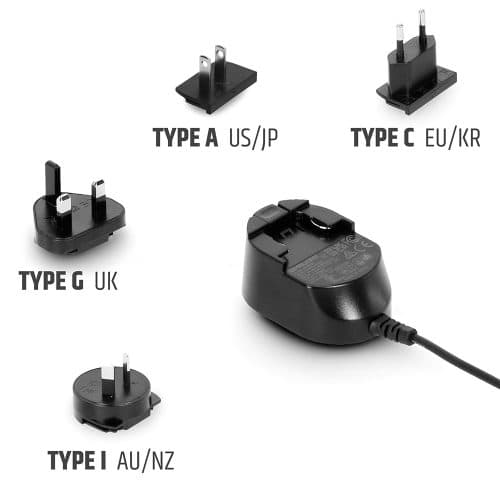

Power Supply: 24 V DC / 500 mA (via terminal block)
Housing Material: Steel
Dimensions: 143 x 54 x 235 mm
Weight: 0.9 kg
Power Consumption:

• Max: 4W
• Idle: 0.03W
• Standby: 2.5W
