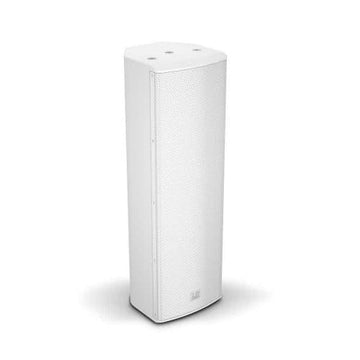

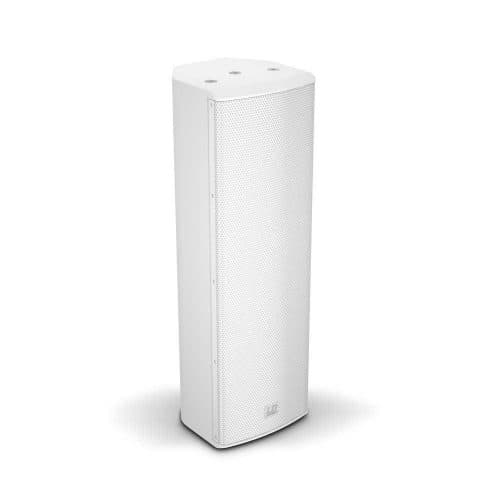

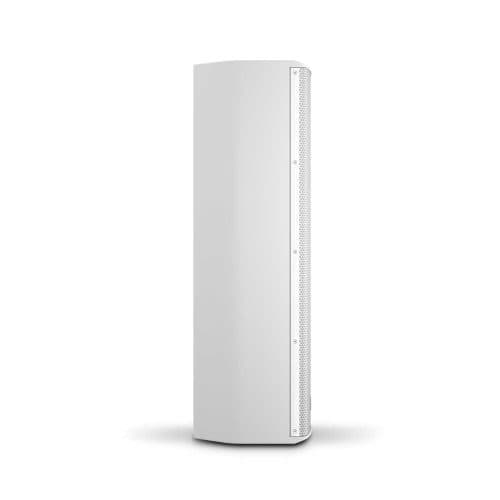

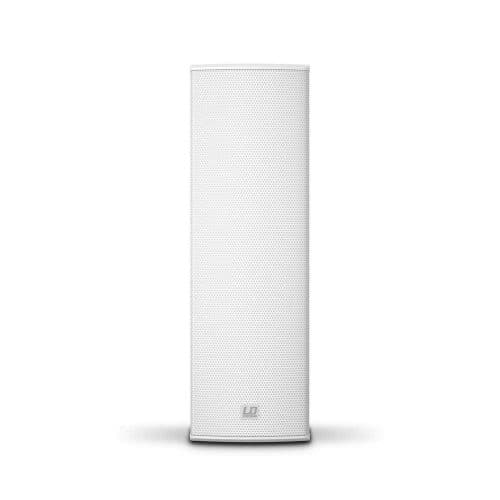

LD Systems SAT 262 G2 – 2 x 6.5″ Passive Installation Speaker White
The LD Systems SAT 262 G2 White brings you a passive installation speaker that offers discreet integration into virtually any setting. Sporting a slim and streamlined design, the SAT 262 G2 features 2 x 6.5″ custom woofers; as well as a 1″ Celestion compression driver that connects to a rotating CD horn with 80 x 60-degree dispersion. Thus, making the SAT 262 G2 ideal for both vertical and horizontal use.
Additionally, the SAT 262 G2 White boasts a maximum SPL of 116dB over a frequency response curve of 65-19kHz with a load capacity of 180W. The reflex casing is also made of 12mm MDF, so you know it’s built to last. Plus, there are four M8 mounting holes for convenient mounting ability.

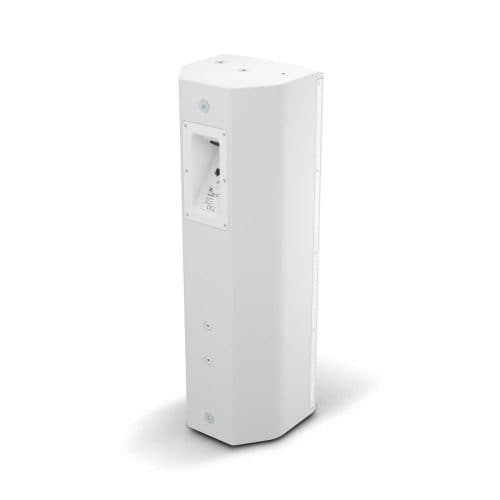

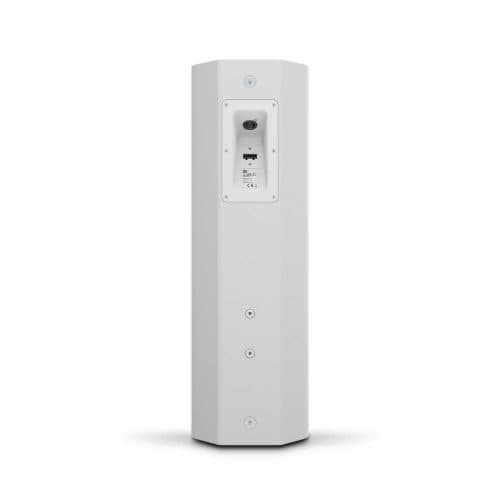

On top of that, the SAT 262 G2 White inputs are a speakON-compatible socket and a terminal block. While an additional terminal block serves as an output for convenient parallel connections.

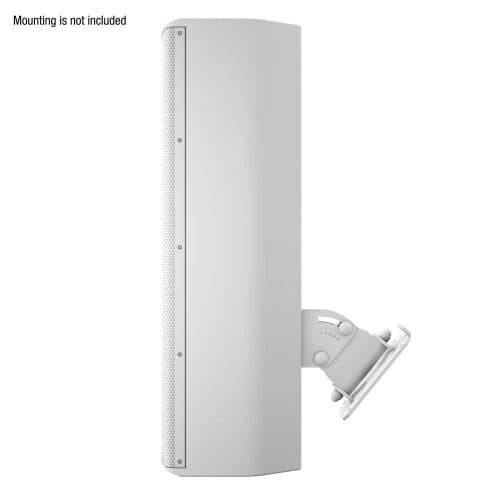

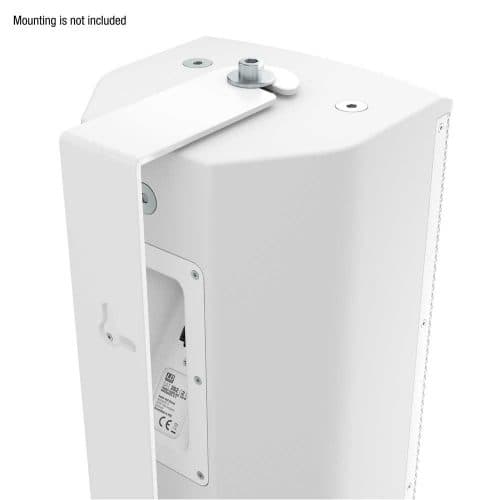

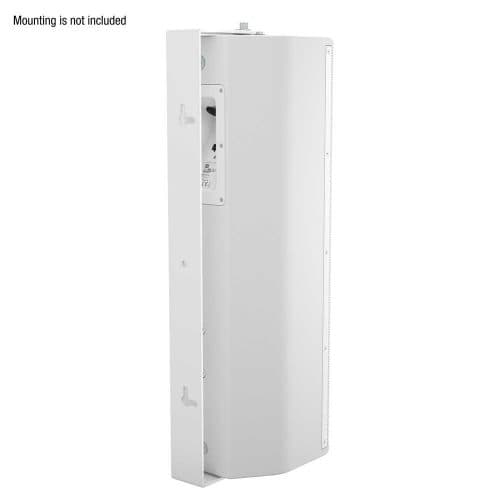

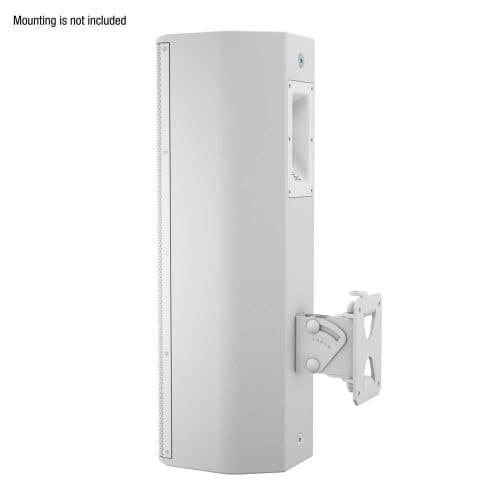

Finally, to facilitate wall mounting, you can also purchase special wall holder accessories. The SAT 262 G2 is also available in black.
Above all, if you’re looking for a permanent installation speaker to mount on a wall, you can’t go past the SAT 262 G2. It’s sure to deliver an amazing sound that you won’t be able to get enough of
Features
- Passive 2-way bass-reflex installation speaker
- 180 W permanent load capacity
- 116 dB maximum sound-level pressure
- 2 x 6.5″ custom woofer and a 1” Celestion tweeter driver
- Rotating CD horn with 80° x 60° dispersion
- For vertical or horizontal use
- SpeakON-compatible and terminal block input

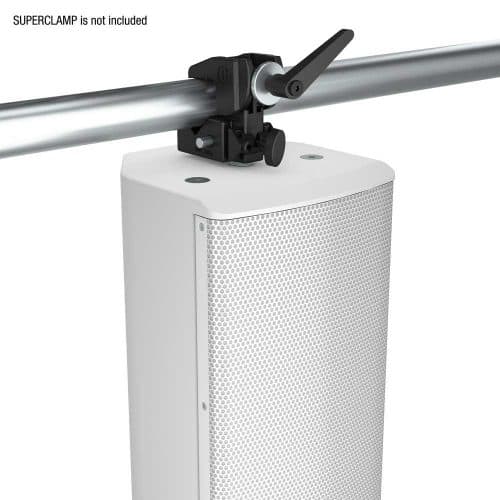

- 4 x M8 mounting holes
- Shock-resistant front grille for optimum speaker protection
- Extensive range of smart accessories for installation
- Available in black or white
Spec
Product type: Installation Loudspeakers
Type: Wall-mounted Loudspeaker
Low/mid driver dimensions: 2 x 6.5 “
Woofer size: 2 x 165.1 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil (mm): 38.1 mm
Horn: CD horn
HF driver dimensions: 1 “
HF Driver Size: 25.4 mm
HF driver magnet: Ferrite
HF driver brand: Celestion
HF driver voice coil: 1 “
HF Driver Voice Coil: 25.4 mm
Dispersion (H x V): 80 x 60 °
Load rating (RMS): 180 W
Peak power: 360 W
Frequency response: 65 – 19000 Hz
SPL (1W/1m): 93 dB
Max. SPL: 116 dB
Impedance: 8 Ohm(s)
Protection circuits: HF Driver
Loudspeaker inputs: 2
Speaker input connections: Speakon compatible , terminal block
Loudspeaker outputs: 1
Speaker output connections: terminal block
Speakers per amplifier channel (DSP44/45K): 4
Cabinet material: 12 mm MDF
Cabinet surface: texture paint
Cabinet colour: White
Cabinet construction: Bass Reflex
Width: 200 mm
Height: 630 mm
Depth: 205 mm
Weight: 9.8 kg
