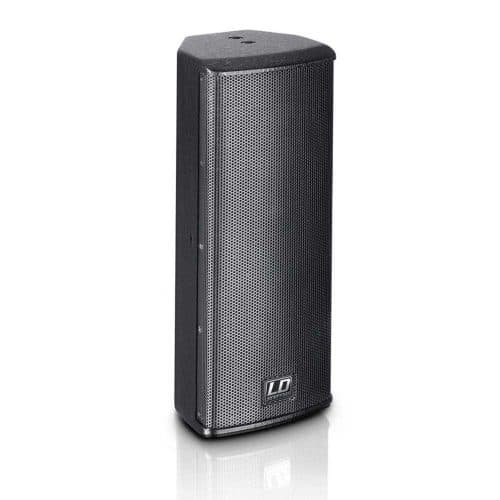

LD Systems SAT242G2 SAT 242 G2 2 x 4 Inch Passive Install Speaker

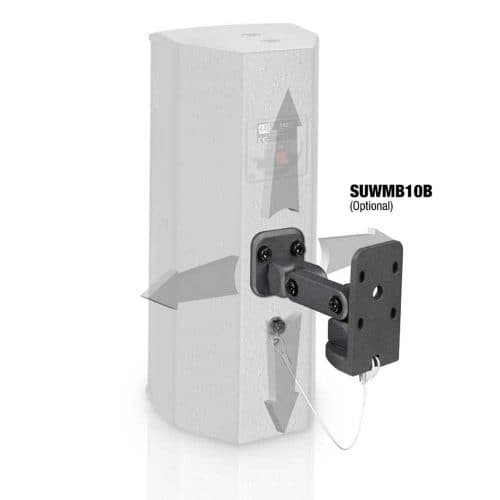

The LD Systems SAT242G2 gives you a sleek, compact passive installation speaker in Black. Boasting heaps of features, the SAT242G2 is loaded with 4″ custom woofers and a 1″ silk dome tweeter with waveguide. Combining for a maximum sound pressure level of 108dB. The SAT242G2 also has a 100 W RMS power rating and can be used as either a single full-range speaker or with an additional LD Systems subwoofer for even more bass and low end.What’s more, the SAT242G2 is housed in a cabinet made of 12mm MDF; with a durable textured finish available in both black and white. Connected via spring terminals, you’ll also find M6 inserts as well as an included mounting bracket that gives you endless mounting options and possibilities. On top of that, there’s an additional universal joint mount sold separately for even more flexibility.
Features
- 2 x 4″ passive Installation Speaker
- 4″ Custom Woofers
- 1″ Silk Dome Tweeter
- Max SPL 108dB
- 100 W RMS Power Rating
- 12MM MDF Casing
- Available in Black or White
Spec
Product Type: Installation Loudspeakers
Type: Wall-mounted Loudspeaker
Low/mid driver dimensions: 2 x 4 “
Woofer size: 2 x 101 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
HF driver dimensions: 1 “
HF Driver Size: 25 mm
HF driver magnet: Ferrite
HF driver brand: Custom-made
Dispersion (H x V): 60 x 60 °
Load rating (RMS): 100 W
Frequency response: 75 – 20000 Hz
SPL (1W/1m): 88 dB
Max. SPL: 108 dB
Impedance: 8 Ohm(s)
Protection circuits: HF Driver
Loudspeaker inputs: 1

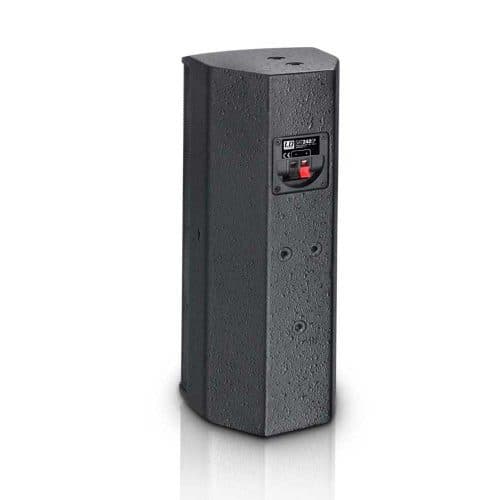

Speaker input connections: Clamp connector
Speakers per amplifier channel (DSP44/45K): 4
Cabinet material: 12 mm MDF
Cabinet surface: texture paint
Cabinet colour: Black
Cabinet construction: Closed
Width: 140 mm
Height: 378 mm
Depth: 135 mm
Weight: 4,15 kg
