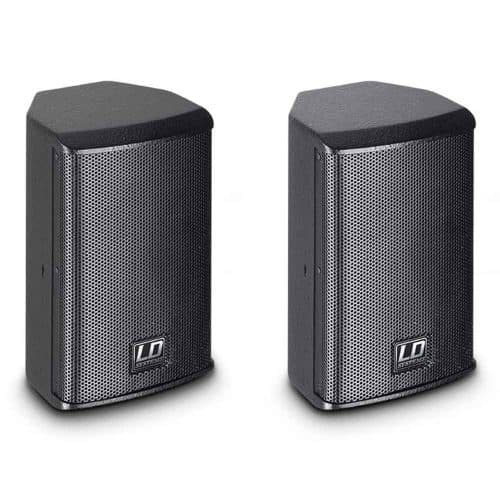

LD Systems SAT42G2 4 Inch Passive Install Monitors (Pair)
The LD Systems SAT42G2 gives you a pair of black, 4″, 2-way installation speakers. Boasting an ultra-compact size, the SAT42G2 is the perfect solution for smaller installations. All while offering unobtrusive integration in practically any surroundings whether you have a bar, restaurant, retail shop, or at home.
Delivering a balanced sound, the SAT42G2 has a dispersion angle of 60° x 60° as well as a maximum sound pressure level of 103dB. All thanks to the 4″ custom woofers and 1″ silk dome tweeter with wave-guide. What’s more, with an impedance of 16ohms, the SAT42G2 permits parallel operation of up to eight speakers on 2 ohms.
Then, if you’re looking for even deeper bass, you can combine your SAT42G2 speakers with one of the LD installation subwoofers. Housed in a 12mm MDF cabinet with a rugged textured coating, the SAT42G2’s are built to last. They even come in the option of both black or white, so you can choose the colour that will suit your installation best!

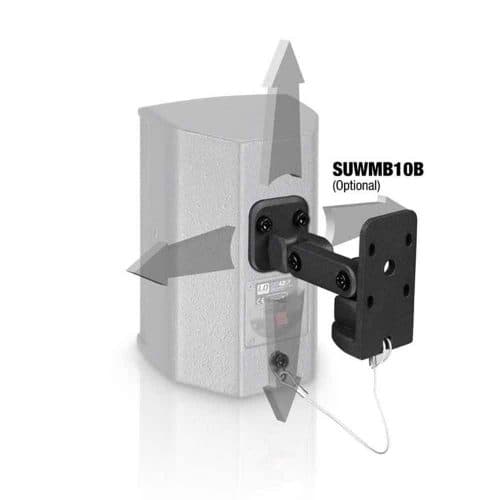

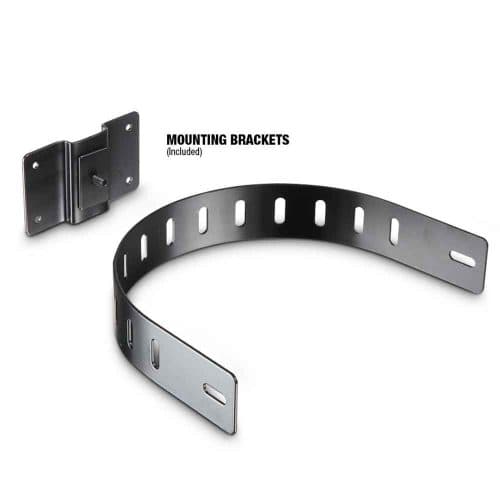

Finally, the SAT42G2’s spot M6 inserts as well as an included mounting bracket for plenty of mounting possibilities. But if you want even more mounting options, you can also purchase a universal joint mount separately.
Features
- 4″ Wall-mounted Loudspeaker
- Ultra-Compact 2-way speakers
- Perfect for smaller installations
- Bars, Restaurants, Retail, or Home use
Spec
Product type: Installation Loudspeakers
Type: Wall-mounted Loudspeaker
Low/mid driver dimensions: 4 “
Woofer size: 101 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
HF driver dimensions: 1 “
HF Driver Size: 25 mm
HF driver magnet: Ferrite
HF driver brand: Custom-made
Dispersion (H x V): 60 x 60 °
Load rating (RMS): 60 W
Frequency response: 75 – 20000 Hz
SPL (1W/1m): 85 dB
Max. SPL: 103 dB
Impedance: 16 Ohm(s)
Protection circuits: HF Driver
Loudspeaker inputs: 1

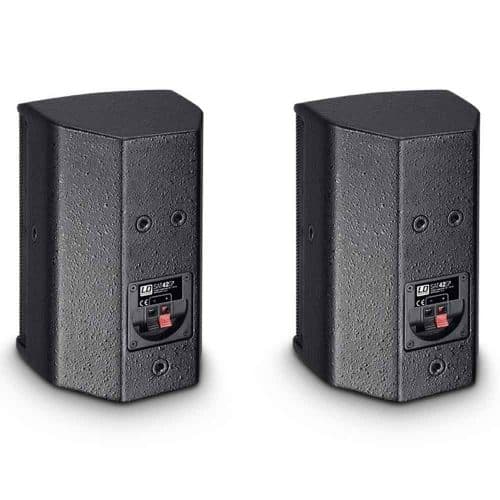

Speaker input connections: Clamp connector
Speakers per amplifier channel (DSP44/45K): 8
Cabinet material: 12 mm MDF
Cabinet surface: texture paint
Cabinet colour: Black
Cabinet construction: Closed
Width: 140 mm
Height: 230 mm
Depth: 125 mm
Weight: 5 kg
