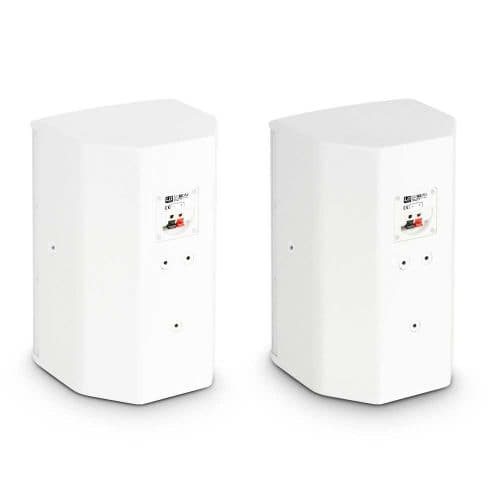

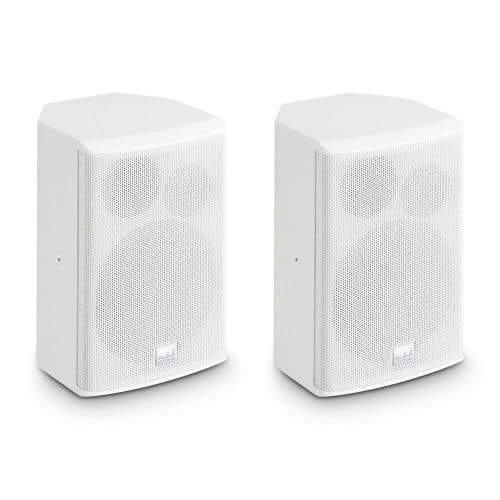

LD Systems SAT62G2W 6 Inch Install Monitor Pair White
The LD Systems SAT62G2W gives you a pair of white 6″ installation speakers that are perfectly suited for a number of applications. Thanks to its sleek design, the SAT62G2W blends seamlessly into your surroundings; whether it be a bar, restaurant, retail shop, or even at home.
Boasting a bass-reflex design with a 6.5″ custom woofer and a 1″ silk dome tweeter; it also uses waveguide to offer powerful frequency reproduction between 55Hz and 20kHz. As well as a sound-level pressure of up to 108dB. Therefore, you’ll find the SAT62G2W perfect for full-range operation, as well as a satellite combined with your LD subwoofer. With an RMS power rating of 80W, its impedance of 16 ohms allows parallel operation of up to eight SAT62G2W speakers on 2 ohms.

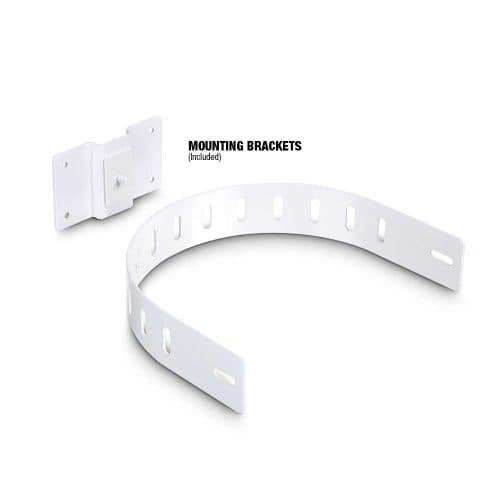

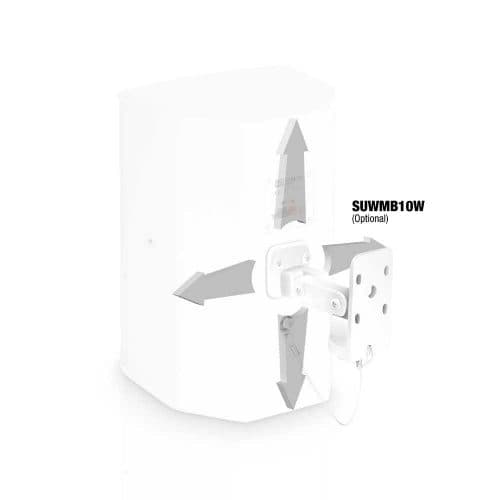

Housed in a 12mm MDF cabinet, the SAT62G2W features a rugged textured coating that’s available in either black or white. You’ll also find an included mounting bracket as well as M6 rigging points that give you even more possibilities for mounting. While there’s an additional universal joint sold separately as an optional accessory.
Features
- 6″ Pair of Installation Speakers
- 6.5″ Custom Woofer
- 1″ Silk Dome Tweeter
Spec
Product Type: Installation Loudspeakers
Type: Wall-mounted Loudspeaker
Low/mid driver dimensions: 6.5 “
Woofer size: 165 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
HF driver dimensions: 1 “
HF Driver Size: 25 mm
HF driver magnet: Ferrite
HF driver brand: Custom-made
Dispersion (H x V): 60 x 60 °
Load rating (RMS): 80 W
Frequency response: 55 – 20000 Hz
SPL (1W/1m): 89 dB
Max. SPL: 108 dB
Impedance: 16 Ohm(s)
Protection circuits: HF Driver
Loudspeaker inputs: 1
Speaker input connections: Clamp connector
Speakers per amplifier channel: (DSP44/45K) 8
Cabinet material: 12 mm MDF
Cabinet surface: texture paint
Cabinet colour: White
Cabinet construction: Bass Reflex
Width: 200 mm
Height: 320 mm
Depth: 200 mm
Weight: 8.2 kg
