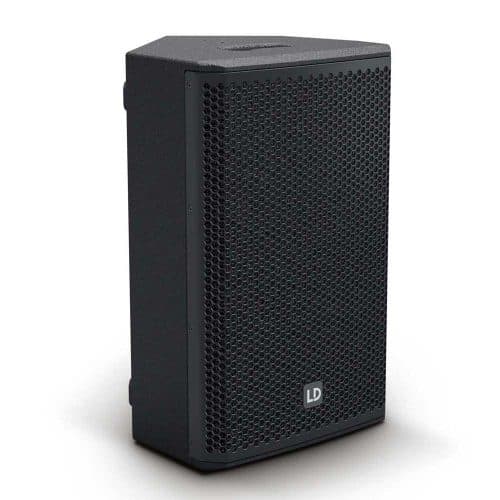

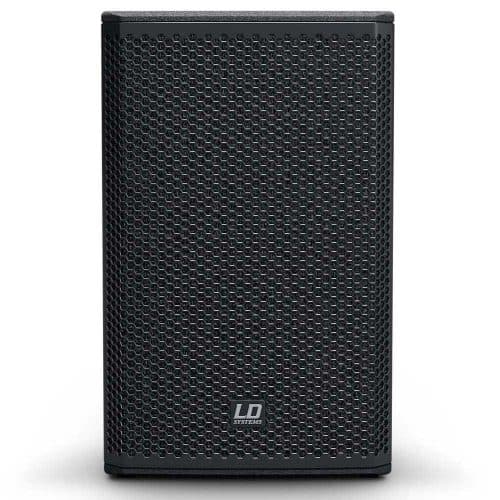

LD Systems Stinger 10 G3 10″ Passive Speaker
The LD Systems Stinger 10 G3 gives you a 10″ passive loudspeaker designed for long-term reliability. Boasting a multifunctional bass reflex cabinet as well as a full-range speaker, satellite, and ground monitor. So it’s perfectly suited for both mobile and fixed PA systems.
satellite, and ground monitor. So it’s perfectly suited for both mobile and fixed PA systems. Providing 300 watts of continuous power, the maximum SPL is 120dB. While its special 10″ woofer and BMS HF driver work to give you powerful bass reproduction and fresh natural highs.
The waveguide of the tweeter has also been developed using the Boundary Element Method. A numerical simulation of the sound radiation and dispersion that reduces reflections from the floor. Therefore preventing sidelobe levels and achieving a controlled dispersion.
Above all, the Stinger 10 G3 is an all-round workhouse. Housed in a durable cabinet made from robust birch plywood, you get exceptional stability and durability. You’ll also find a steel grille, dual-tilt stand, flight points, and ergonomic handles. It’s an affordable solution that will perfectly suit your on-stage or fixed installations.
Features
- 2-way passive 10” bass reflex PA speaker
- 300 watts RMS power handling
- 120 dB maximum SPL
- 10“ custom woofer and BMS compression driver
- BEM optimized HF waveguide for uniform coverage
- Birch ply cabinet with ultra rugged polyurea finish and M10 suspension points
- Shock-resistant front grill provides maximum speaker protection
- 36 mm Dual-Tilt pole receptacle for 0° or 5° mounting angles
- Large selection of smart installation and transport accessories
Spec
Product type: PA loudspeaker
Type: passive
Low/mid driver dimensions: 10 “
Woofer size: 254 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 2 “
Woofer voice coil (mm): 50.8 mm
Horn BEM optimized: CD Horn
HF driver dimensions: 1 “
HF Driver Size: 25.4 mm
HF driver magnet: Ferrite
HF driver brand BMS
HF driver voice coil: 1 “
HF Driver Voice Coil: 25.4 mm
Dispersion (H x V): 90 x 50
Load rating (RMS): 300 W
Peak power: 600 W
Frequency response: 65 – 20000 Hz
SPL (1W/1m): 96 dB
Max. SPL: 121 dB
Impedance: 8 Ohm(s)
Protection circuits: HF Driver

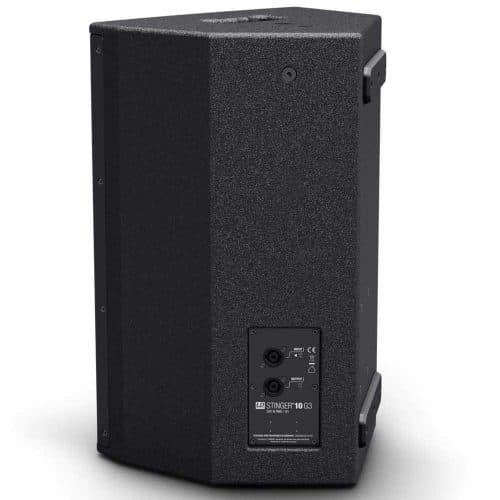

Loudspeaker inputs: 1
Speaker input connections: Speakon compatible
Loudspeaker outputs: 1
Speaker output connections: Speakon compatible
Speakers per amplifier channel (DSP44/45K): 4
Cabinet material: 12 mm Plywood
Cabinet surface: Polyurea
Cabinet construction: Bass Reflex
Monitor angle: 54 °
Width: 325 mm
Height: 527 mm
Depth: 318 mm
Weight: 11,5 kg
