LD Systems Stinger 12 G3 12″ Passive Speaker
LD Systems Stinger 12 G3
The LD Systems Stinger 12 G3 gives you a 12″ professional 2-way passive loudspeaker. Boasting a number of impressive features, the Stinger 12 G3 is perfect as a full-range speaker, satellite, and ground monitor. While perfectly suited to both mobile and fixed PA systems.
A powerful solution, the Stinger 12 G3 provides 400 watts of continuous power with a maximum SPL of 125dB. While its specially designed 12″ woofer combined with the BMS HF driver delivers a powerful bass reproduction with fresh natural highs. On top of that, the waveguide of the tweeter has been developed using the Boundary Element Method (BEM); numerical simulation of the sound radiation, and dispersion. It reduces reflections from the floor and ceiling, preventing sidelobe levels. Therefore, achieving a controlled and homogeneous dispersion.

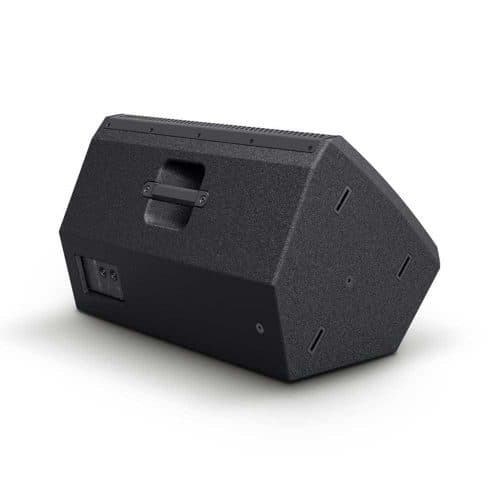

Above all, the Stinger 12 G3 is an all-round powerhouse speaker. Housed in a durable cabinet made from robust birch plywood with polyurea coating. The Stinger 12 G3 features a steel grill, Dual-Tilt stand attachment, flight points, and ergonomic handles. So you’ll have the perfect solution for all your PA applications, whether on stage or fixed installs.
Features
- 2-way passive 12” bass reflex PA speaker
- 400 watts RMS power handling
- 125 dB maximum SPL

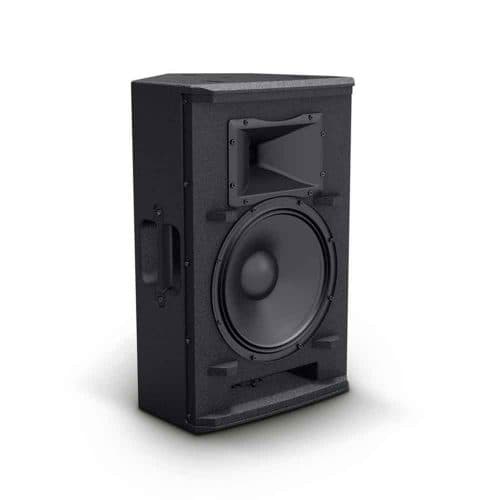

- 12“ custom woofer and BMS compression driver
- BEM optimized HF waveguide for uniform coverage
- Birch ply cabinet with ultra rugged polyurea finish and M10 suspension points

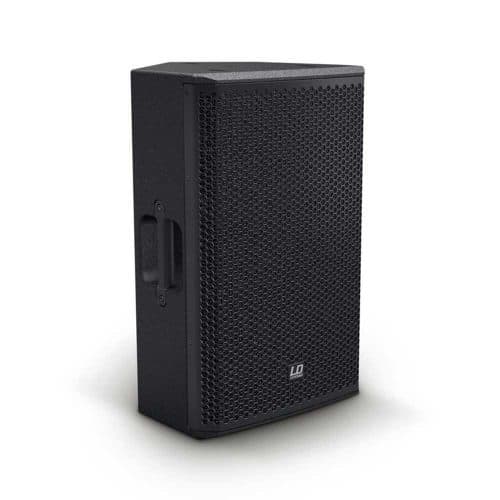

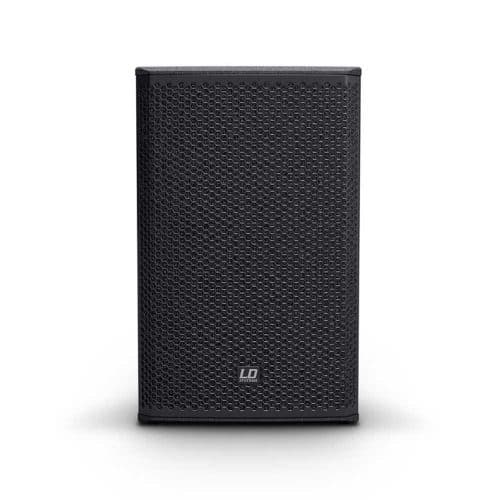

- Shock-resistant front grill provides maximum speaker protection

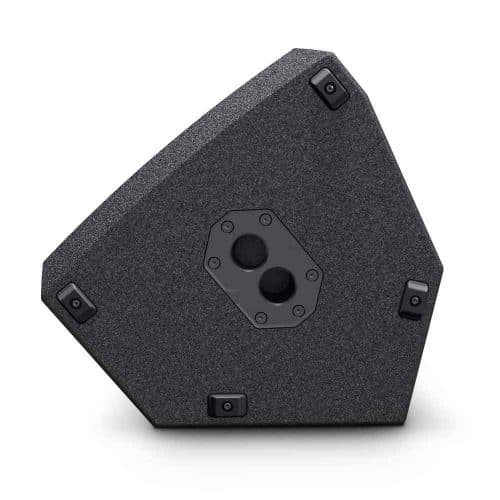

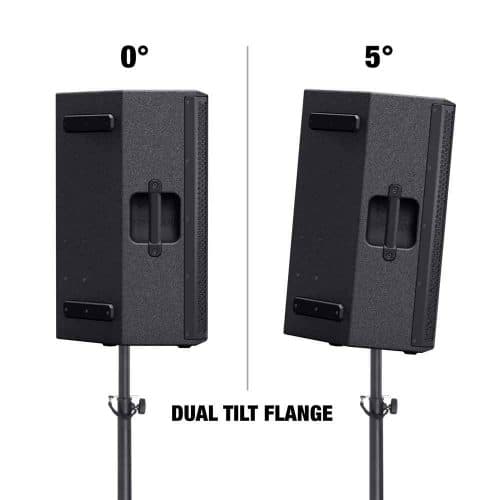

- 36 mm Dual-Tilt pole receptacle for 0° or 5° mounting angle
- Large selection of smart installation and transport accessories
Spec
Product type: PA loudspeaker
Type: passive
Low/mid driver dimensions: 12 “
Woofer size: 304.8 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 2.5 “
Woofer voice coil (mm): 63.5 mm
Horn BEM optimized: CD Horn
HF driver dimensions: 1 “
HF Driver Size: 25.4 mm
HF driver magnet: Ferrite
HF driver brand: BMS
HF driver voice coil: 1 “
HF Driver Voice Coil: 25.4 mm
Dispersion (H x V): 90 x 50 °
Load rating (RMS): 400 W
Peak power: 800 W
Frequency response: 58 – 20000 Hz
SPL (1W/1m): 99 dB
Max. SPL: 125 dB
Impedance: 8 Ohm(s)
Protection circuits: HF Driver
Loudspeaker inputs: 1

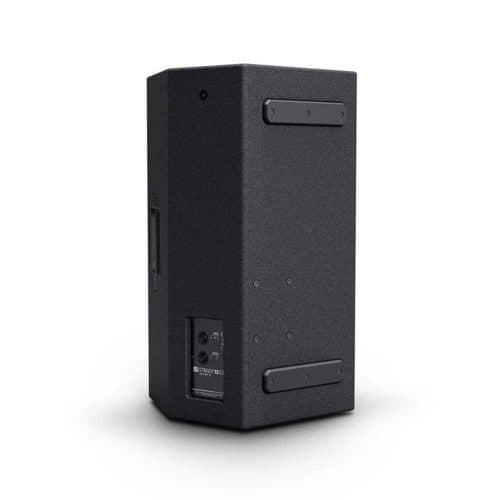

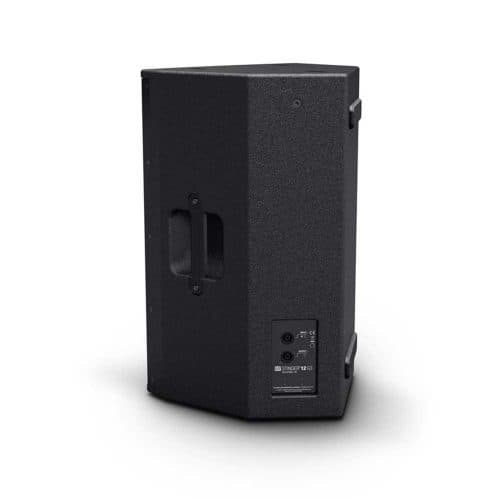

Speaker input connections: Speakon compatible
Loudspeaker outputs: 1
Speaker output connections: Speakon compatible
Speakers per amplifier channel (DSP44/45K): 3
Cabinet material: 15 mm Plywood
Cabinet surface: Polyurea
Cabinet construction: Bass Reflex

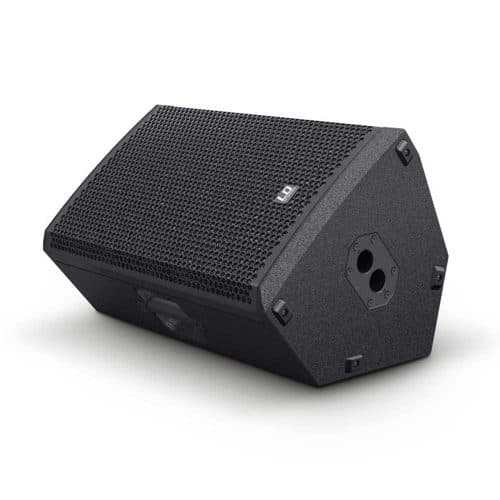

Monitor angle: 54 °
Width: 390 mm
Height: 627 mm
Depth: 377 mm
Weight: 19.4 kg
