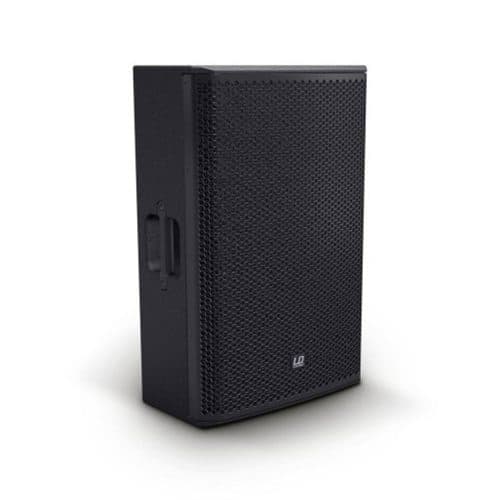

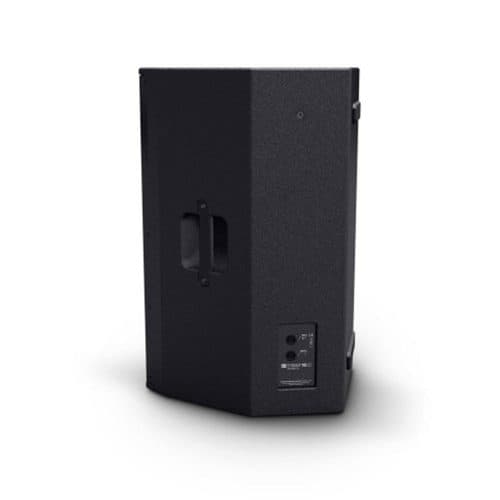

LD Systems Stinger 15 G3 15″ Passive Speaker
The LD Systems Stinger 15 G3 gives you a professional, 15″ passive 2-way loudspeaker. Offering a range of features and functionality; its multifunctional bass reflex cabinet means the Stinger 15 G3 can operate as a full-range speaker, satellite, and ground monitor. So its perfectly suited for both mobile and fixed PA systems.
Features
- Passive 2-way bass-reflex PA speaker
- 500 watts RMS
- 127 dB maximum sound pressure level

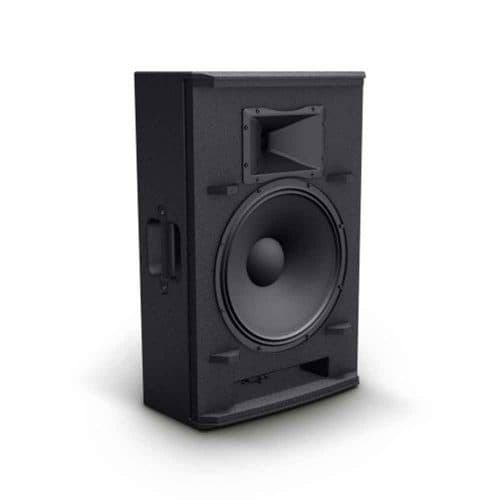

- 15″ Custom Woofer and BMS driver
- Homogeneous dispersion pattern through a BEM-optimised tweeter wave guide
- Birch plywood cabinet with extremely durable polyurea coating

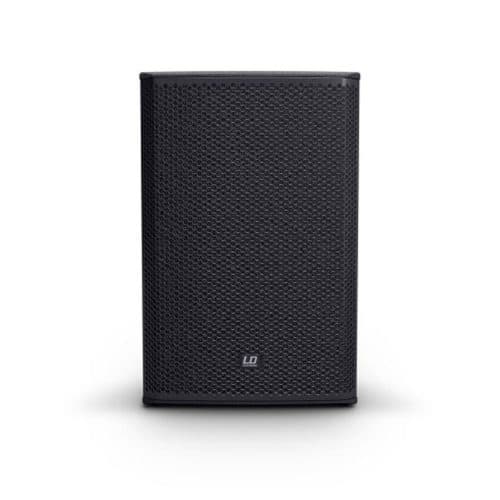

- Shock-resistant front grille to protect the loudspeaker

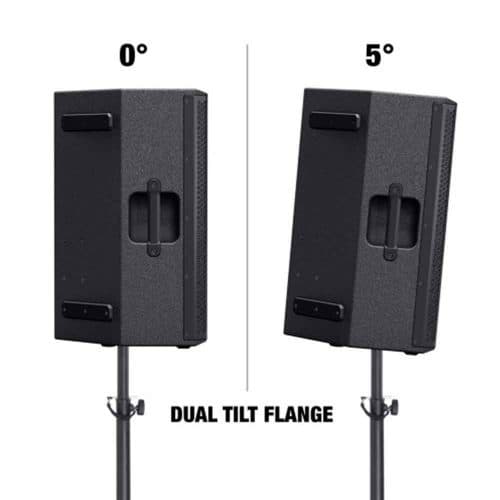

- 36 mm Dual Tilt stand attachment with 0° and 5° tilt angle
- Extensive and smart accessories for installation and transport
Spec
Product type: PA loudspeaker
Type: passive
Low/mid driver dimensions: 15 “
Woofer size: 381 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 3 “
Woofer voice coil (mm): 76.2 mm
Horn: CD horn
HF driver dimensions: 1 “
HF Driver Size: 25.4 mm
HF driver magnet: Ferrite
HF driver brand: BMS
HF driver voice coil: 1 “
HF Driver Voice Coil: 25.4 mm
Dispersion (H x V): 90 x 50 °
Load rating (RMS): 500 W
Peak power: 1000 W
Frequency response: 50 – 20000 Hz
SPL (1W/1m): 100 dB
Max. SPL: 127 dB
Impedance: 8 Ohm(s)
Protection circuits: HF Driver

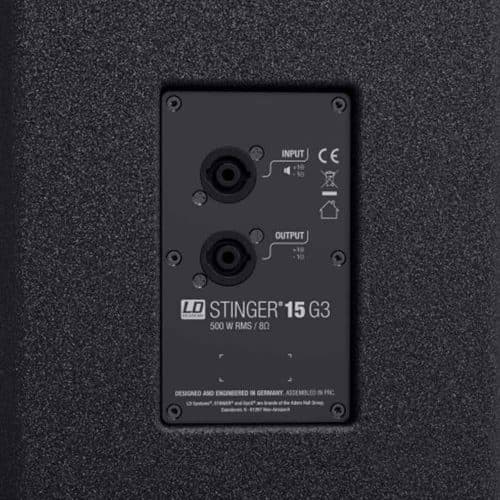

Loudspeaker inputs: 1
Speaker input connections: Speakon compatible
Loudspeaker outputs: 1
Speaker output connections: Speakon compatible
Speakers per amplifier channel: (DSP44/45K) 3
Cabinet material: 15 mm Plywood
Cabinet surface: Polyurea
Cabinet construction: Bass Reflex

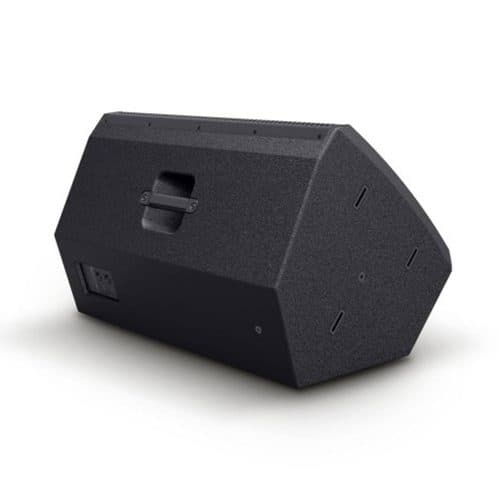

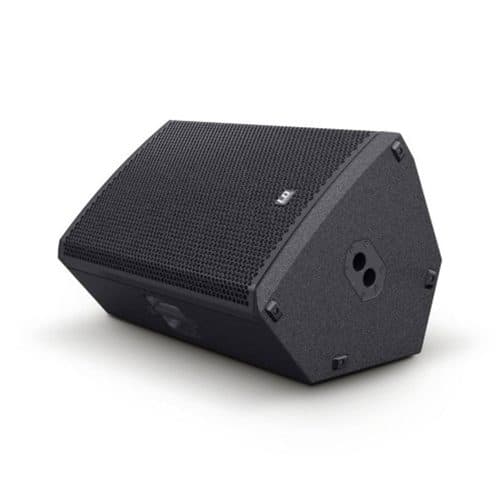

Monitor angle: 54 °
Width: 480 mm
Height: 737 mm
Depth: 455 mm
Weight: 25,7 kg
