LD Systems Stinger 28 A G3 Powered Dual 8″ PA Speaker 1000W



LD Systems Stinger 28 A G3

The LD Systems STINGER 28 A G3 has been engineered for rock-solid reliability day in, day out this active 2-way system is a truly professional performer. With its rugged bass reflex construction and carefully contoured, user-friendly presets it is equally suitable for full-range, satellite or monitor applications. The Stinger28 A G3 is powered by high-efficiency Class D amplification with a hefty 500 watts RMS output. It drives two custom designed 8” woofers and a BMS compression driver delivering a punchy low end and smooth, crisp highs. The HF waveguide has been designed using BEM, the numerical modeling of sound radiation and propagation. It reduces floor and ceiling reflections, effectively eliminates side lobes and achieves a controlled uniform coverage pattern. The Stinger 28A G3 incorporates LD Systems’ proprietary DynX® DSP technology to ensure top-level performance with maximum clarity and punch at all times. Processing includes crossover and multi-band limiter functions for accurate time alignment and pristine, distortion-free audio. Designed to be a real workhorse throughout, the enclosure is made of rigid birch ply and coated with ultra-tough polyurea for extraordinary strength and durability. Sporting a steel front grille, Dual-Tilt pole receptacle, multiple suspension points and ergonomic handles the Stinger® 28 A G3 is an attractively priced choice for truly professional sound reinforcement. A large selection of accessories facilitate live and installed applications.

Features

• Active 2 x 8″ 2-way bass-reflex PA speaker
• 131 dB max. SPL and 500-watt RMS performance with a highly-efficient digital amplifier
• Perfect all-rounder for full-range, satellite and monitor applications
• Practical presets for fast and user-specific frequency tuning
• Homogeneous dispersion pattern thanks to a BEM-optimised tweeter wave guide
• Two 8″ custom woofers and BMS tweeter driver
• Distortion-free sound at even maximum volumes, thanks to DynX® DSP technology
• 2 line/mic input channels with individual gain controllers plus mono mix output

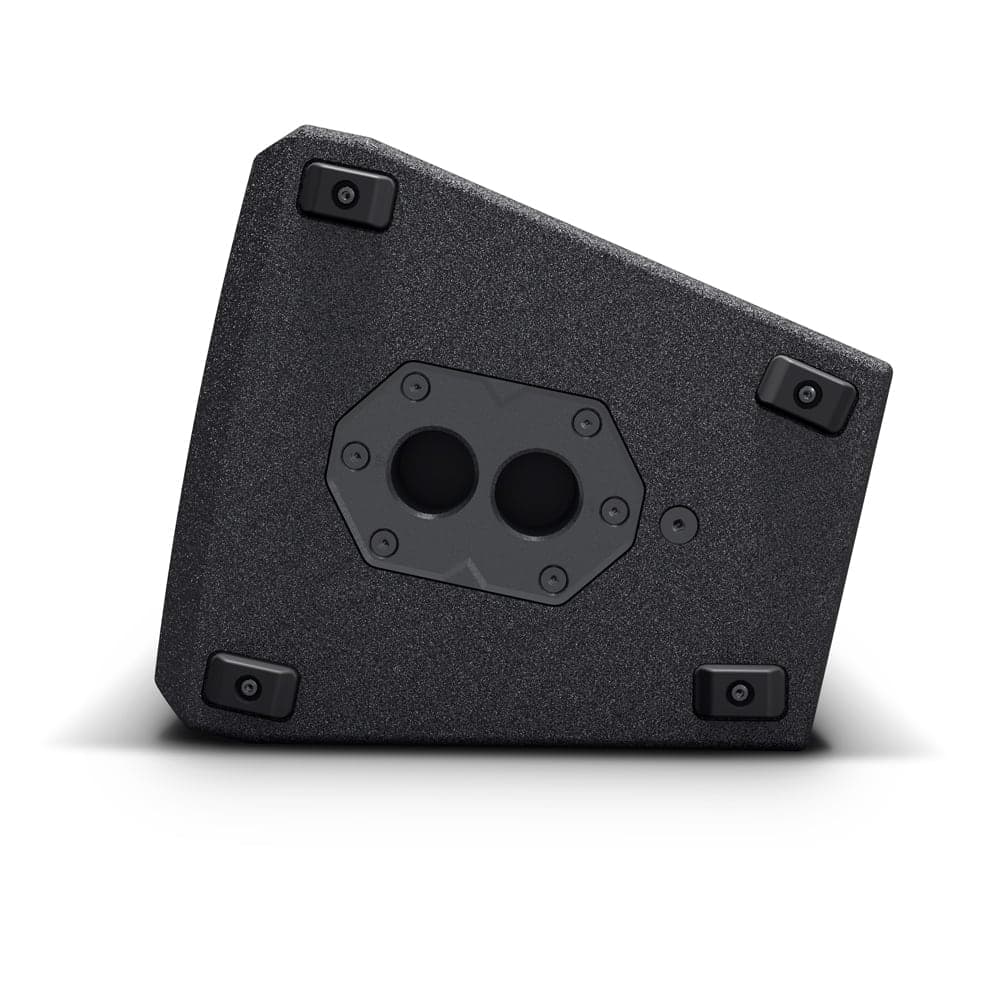

• Birch plywood housing with ultra-robust polyurea coating and M10 rigging points

Spec

Product number: LDEB282AG3

Product type: PA loudspeaker

Type: active

Woofer driver: 2 x 8″ (Ferrite)

Woofer voice coil: 2″

Horn: BEM optimized CD Horn

HF driver dimensions: 1″ (BMS Ferrite)

HF driver voice coil: 1″

Amplifier: Class D

Dispersion (H x V): 90 x 50°

RMS: 500W

Peak power: 1000W

Frequency response: 58 – 20000Hz

Max. SPL (peak): 131dB

Protection circuits: over-current, Multiband limiter, over voltage, thermal overload

Input sensitivity: -5dBu

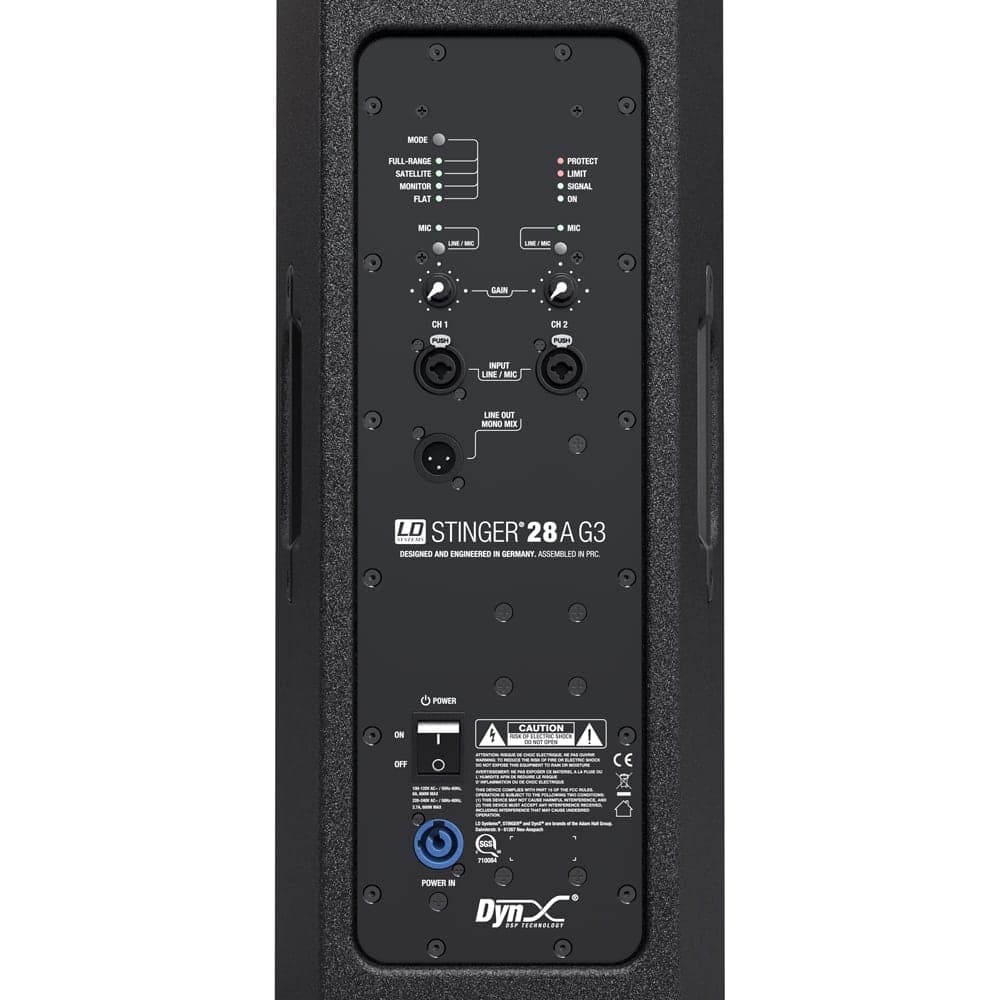

Controls: mode, 2 x Mic/Line, 2 x gain

Indicators: Signal, On, Limit, mode, Protect (protection circuit engaged)

Inputs: 2x Combo XLR/Jack (mic/line switchable)

Outputs: 1x XLR (line)

Operating voltage: 200 – 240 V / 50 – 60 Hz

Operating Temperature: 0 – 40°C

Cabinet material: 12 mm Plywood

Cabinet surface: Polyurea

Dimensions: 270 x 756 x 290 mm

Weight: 19 kg
