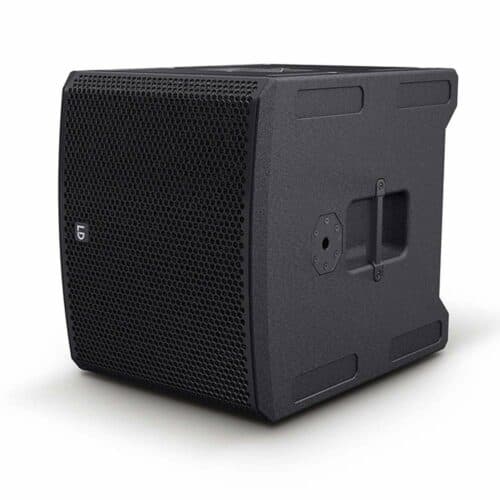

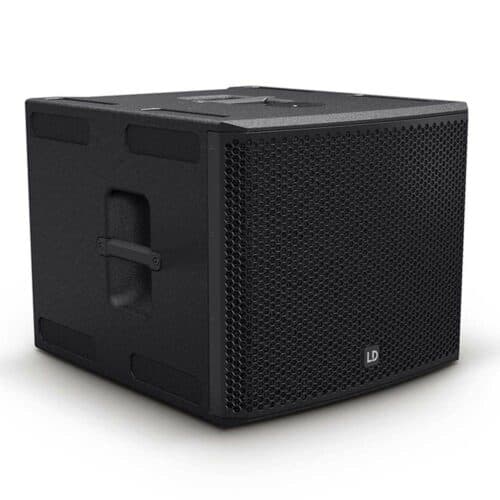

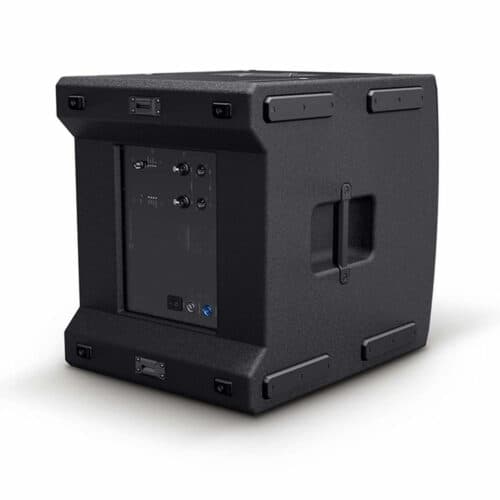

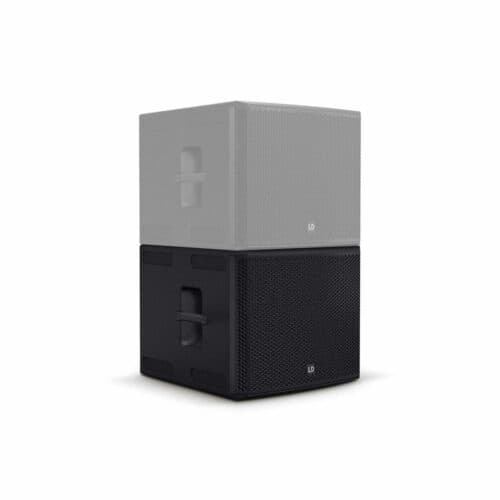

LD Systems Stinger Sub 15AG3 – Active 15″ Inch Bass Reflex PA Subwoofer
The LD Systems Stinger Sub 15AG3 is an Active 15” Inch bass-reflex PA subwoofer. It drives a custom-designed 15” woofer delivering a huge bottom end with a terrific punch and excellent definition.
Features
- Active 15” bass reflex PA subwoofer
- High-efficiency 450 watts RMS digital power stage and 133 dB max. SPL

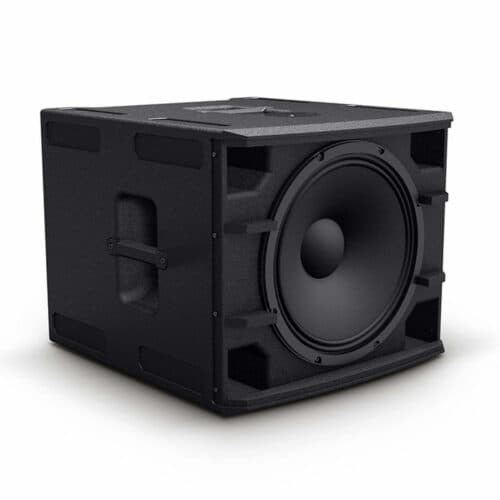

- 15” custom design woofer for extended low end down to 40 Hz
- DynX® DSP technology for distortion-free performance
- 80, 100 and 120 Hz low pass presets
- Cardioid subwoofer array presets
- Horizontal or vertical placement
- 18 mm birch ply cabinet with ultra rugged polyurea finish

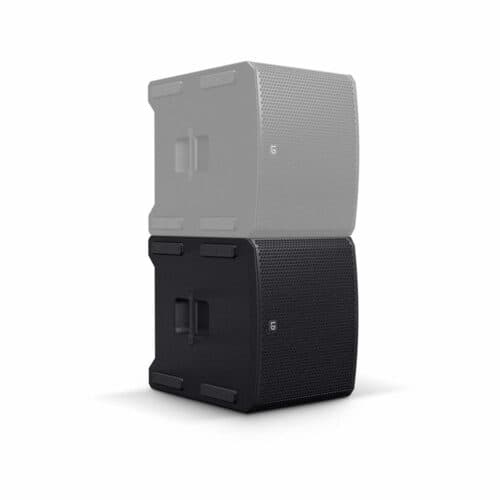

- Ergonomic handles and stacking recesses for easy transport and setup

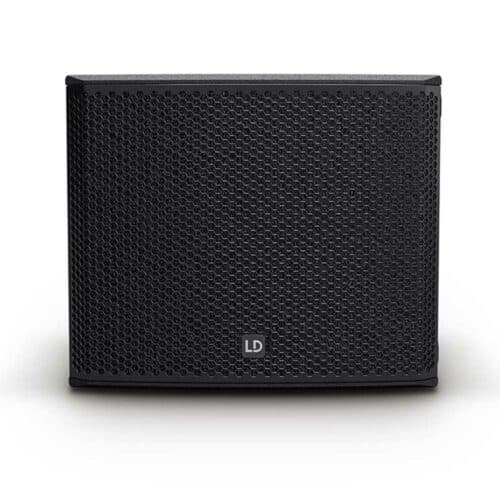

- The shock-resistant front grill provides maximum speaker protection

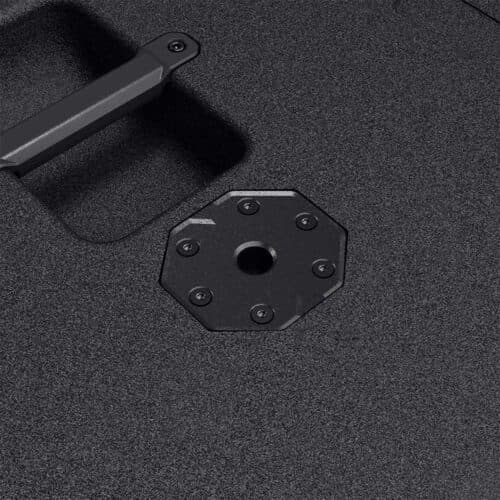

- Insert for M20 threaded poles
- Smart transport accessories
Spec
Product number: LDESUB15AG3
Product type: PA subwoofer
Type: active
Low/mid driver: 15″ (381mm)
Woofer voice coil: 3″
Amplifier: Class D

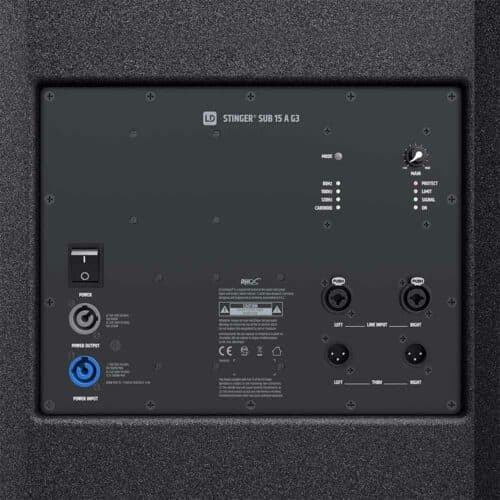

Inputs: 2x XLR / Jack combo
Outputs: 2x XLR
RMS: 450W
Peak power: 900W
Frequency response: 40Hz to 200Hz
Max. SPL: 133dB (peak)
Protection circuits: limiter, over voltage, short circuit, DC
Input sensitivity: 0.3V
Indicators: protect (protection circuit engaged), mode, limit, on, signal
Operating voltage: 240V / 50Hz
Operating Temperature: 0 – 40°C
Relative humidity: < 80% (non-condensing)
Cabinet material: 18 mm Plywood
Dimensions: 567 x 477 x 624mm
Weight: 32.4 kg
