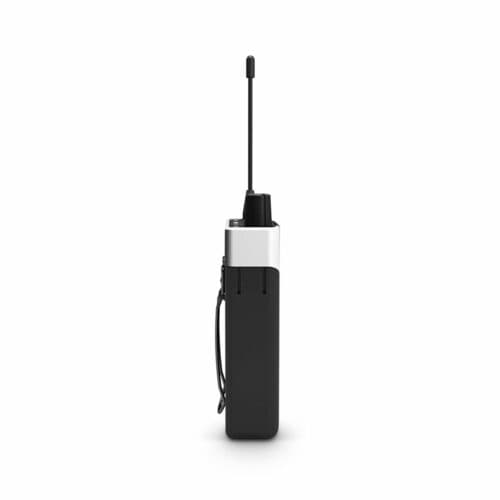

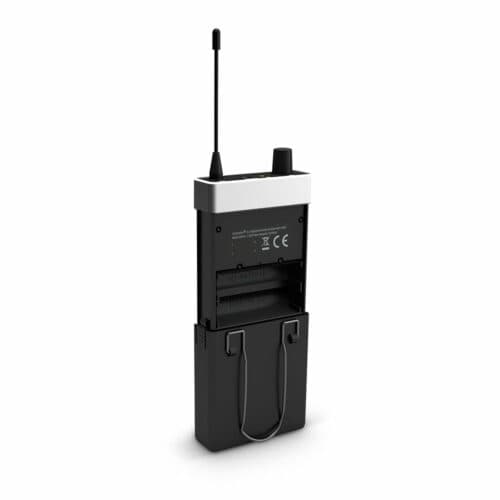

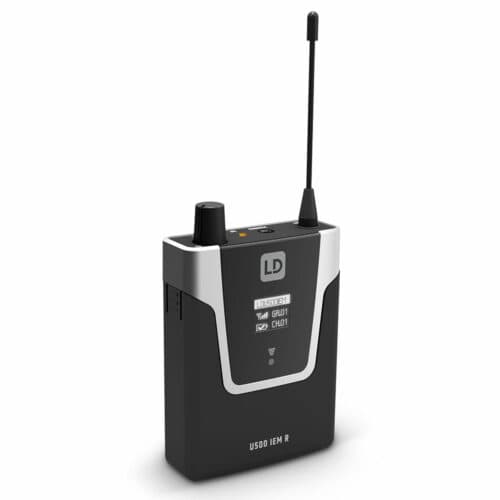

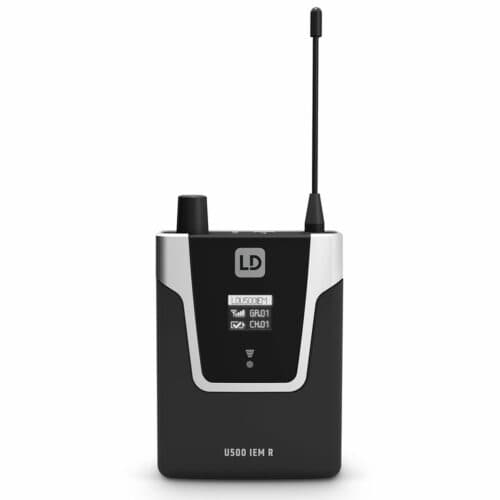

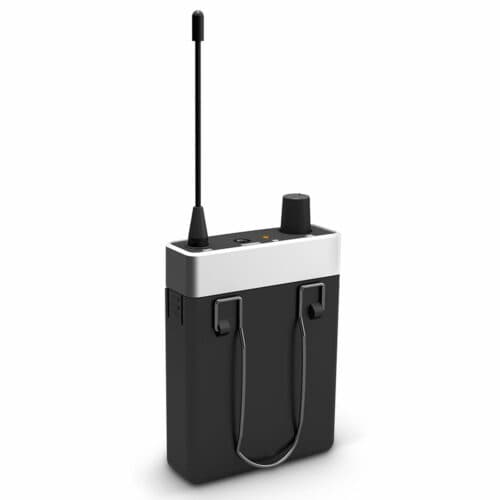

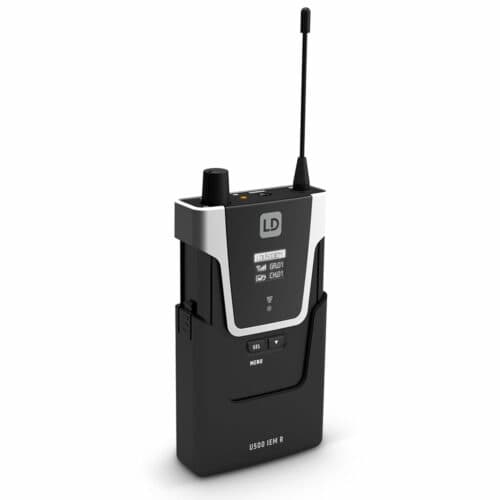

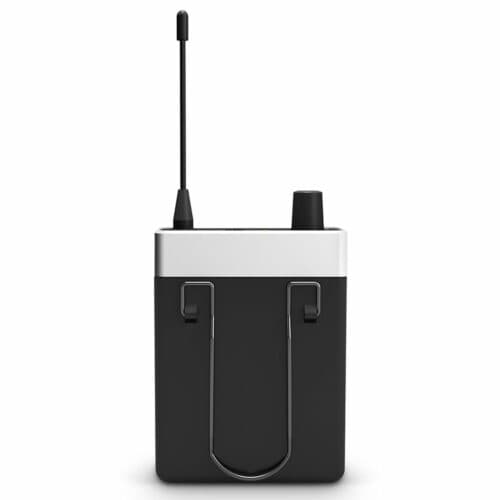

LD Systems U505 IEM R – Receiver (584 – 608 MHz)

LD Systems U505 IEM R – Receiver (584 – 608 MHz)

The LD Systems U505 IEM R is a Receiver with a frequency bandwidth between 584 – 608 MHz. The U505 IEM R allows you to move freely on stage while delivering the perfect monitor mix. U500® In-Ear Monitoring Systems feature 96 selectable channels and 2, 10 or 30 mW switchable RF output power for a transmission range greater than 100 m.

Convenient infrared synchronisation of transmitter and receiver permits quick and trouble-free setup. The systems come with high-contrast OLED information displays and allow for individual user name assignments. In addition, you can save 10 custom presets.

Efficient Signaling

The U505 IEM R offers a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear Systems’ noise floor is exceptionally low. Drawing little current only, the U500® IEM Bodypack Receiver operates up to 10 hours on two AA batteries.

The U505 IEM R also features a volume control that allows convenient in-performance monitoring level adjustment. Three selectable squelch levels ensure interference-free operation at all times.

U505 IEM R Key Features

• Reliable in-ear monitoring with more than 100 m range
• 96 available channels
• The U505 IEM R Bodypack Receiver offers three selectable squelch levels

Features

• Reliable in-ear monitoring with more than 100 m range
• 96 available channels
• 2, 10 or 30 mW ERP selectable transmission power
• Convenient infrared frequency syncing
• Individual user name assignment and memory for 10 custom presets
• Extended frequency response
• 3-band EQ with parametric mids
• Switchable limiter
• Stereo and mono modes of operation
• High-contrast OLED display
• Transmitter with direct monitoring headphone output
• Bodypack receiver with three selectable squelch levels
• 10 h of bodypack receiver operation on two AA batteries
• U500® IEM transmitter compatible with U300® IEM bodypacks

Spec

Product type: In-ear Monitoring Accessories

Type: Receivers

Transmission frequency range: 584 – 608 MHz

Channels: 12

Headphones output: 3.5 mm TRS

Transmission method: FM, mono/stereo

Frequency response: 40 – 16000 Hz

Audio output: 3.5 mm TRS

Minimum connected impedance: 16 Ohm(s)

Max. audio output level: 33 mW @ 16 Ohm mW, 80 mW @ 33 Ohm mW

Antenna connector: Fixed to housing

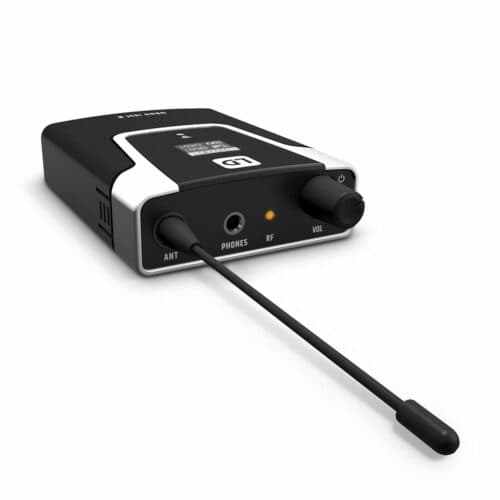

Controls: Down, On / Off, Up, volume

Indicators: Multifunctional OLED-Display, RF (LED)

Operating voltage: 2 x 1.5 V AA

Operating time: < 10 hours

Width: 64 mm

Height: 100 mm

Depth: 24 mm

Weight: 0,095 kg

Accessories (included): 2 x AA batteries, Antenna

Features: battery status LED
