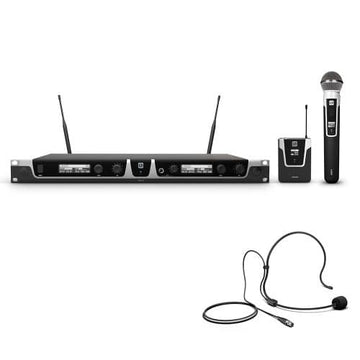

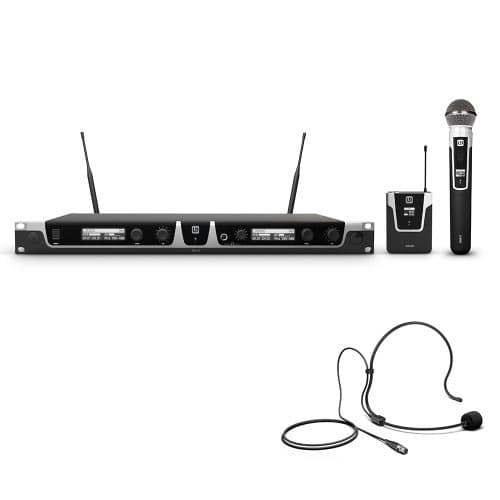

LD Systems U505HBH2 Dual Wireless Microphone System
The LD Systems U505HBH2 was developed in Germany to bring you an affordable, professional technology with great sound quality. The U505HBH2 system for vocals and speech delivers impressive performance and high reliability, which will certainly exceed your expectations. LD have designed this specifically for professional users to ensure that your performance is an impressive and emotive experience.
Selectable transmit power up to 30 mW provides the U505HBH2 vocal set with a free-field range of over 100 metres. The True Diversity UHF wireless system features an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy setup.
High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, signal strength and battery status. Also, you can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present.
The U505HBH2’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.
Item includes:
- Wireless System
- Bodypack
- Headset
- Dynamic Handheld Microphone
Features
- True diversity UHF wireless system
- Shock-mounted dynamic and condenser microphone capsules
- Automatic channel scan
- Easy one-touch infrared frequency syncing
- Pilot tone squelch circuit prevents noise
- Switchable RF transmitter output (2, 10 or 30 mW)
- Rugged enclosures
- High-contrast OLED display
Spec
Product type: Wireless Microphone Systems
Type: Headsets / Handhelds
Transmission frequency range: 584 – 608 MHz
Weight: 5,3 kg

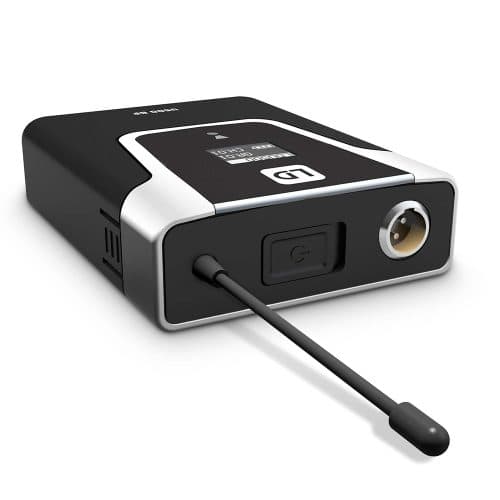

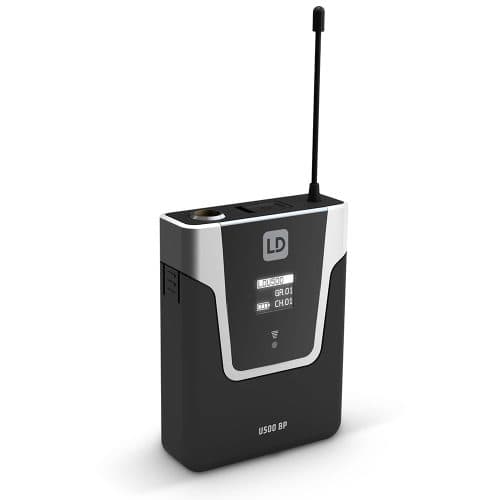

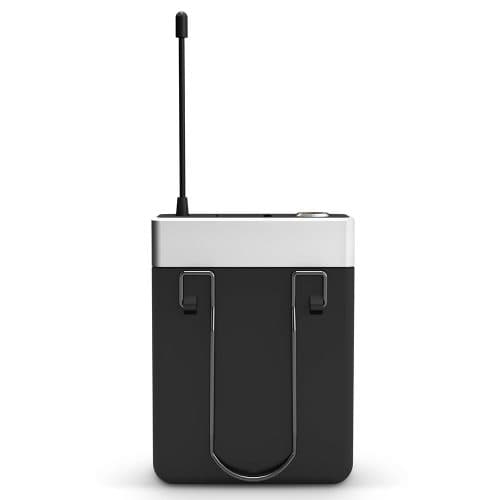

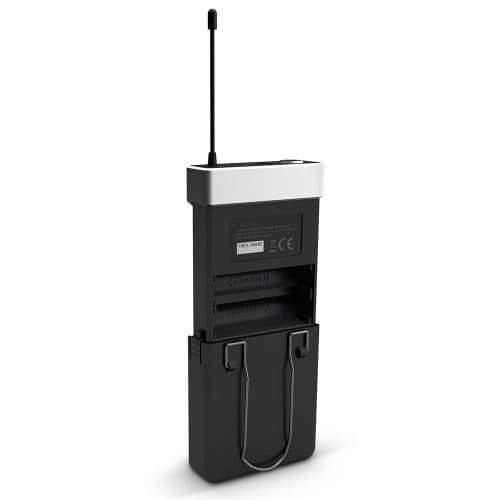

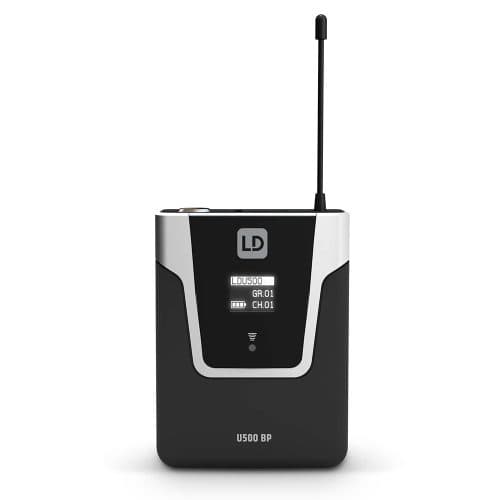

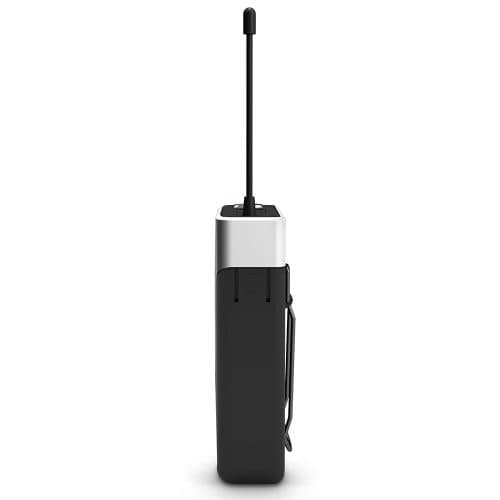

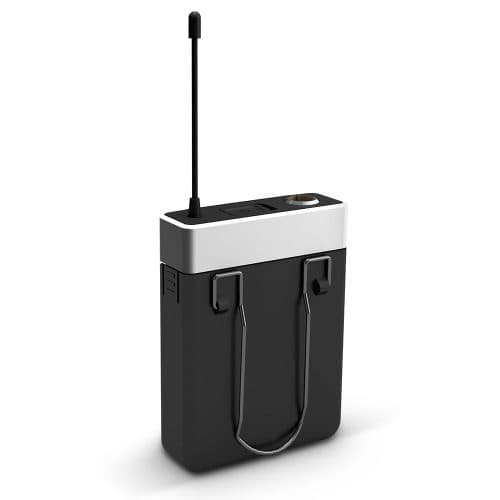

LDU505BP – LD Systems U505 HBH 2 Bodypack transmitter
Product type: Wireless Microphone System Accessories
Type: Bodypack
Transmission frequency range: 584 – 608 MHz
Channels: 96 (8 groups of 12 channels)
Frequency response: 30 – 16000
Groups: 8
Inputs: Mini-XLR (3-pin)
Signal-to-noise ratio: >90 dB
Rated HF output power: Variable (2mW, 10mW, 30mW)
Controls: Set
Indicators: OLED Display
Operating voltage: 2 x AA battery
Operating time: >10 h (with alkaline batteries)
Width: 65 mm
Height: 86 mm
Depth: 23 mm
Weight: 0,09 kg
Other features: switchable RF power

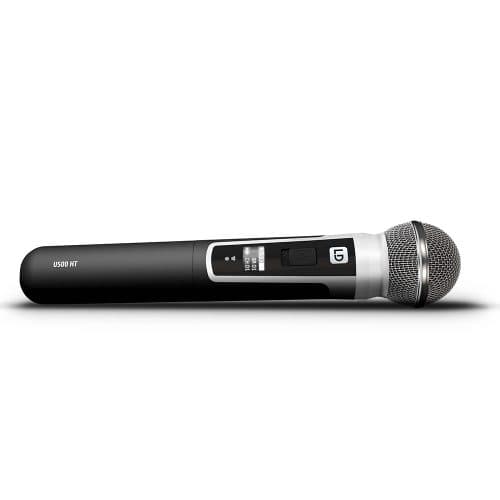

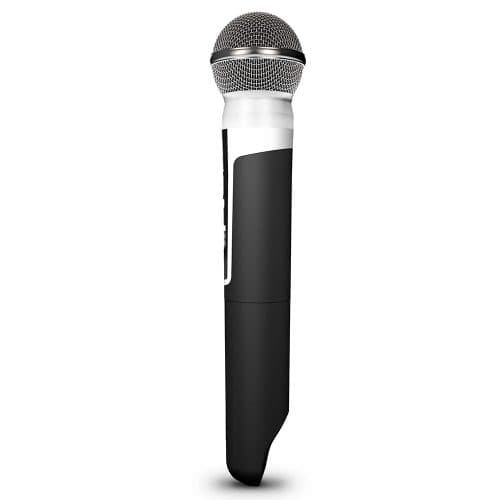

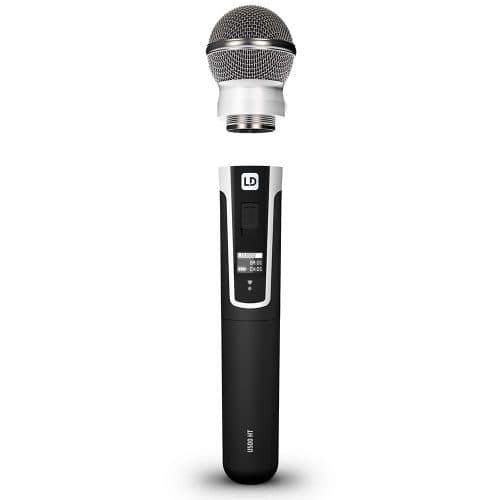

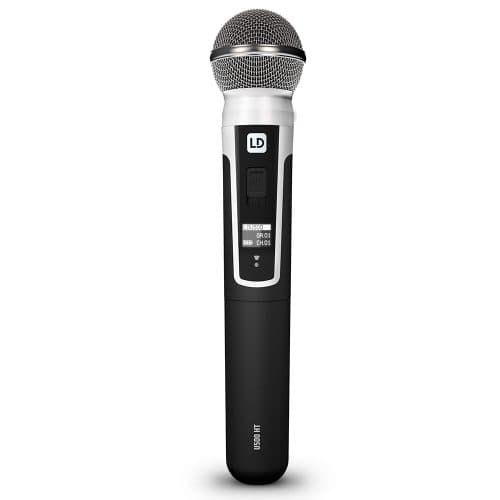

LDU505MD – LD Systems U505 HBH 2 Dynamic handheld microphone
Product type: Wireless Microphone System Accessories
Type: Microphones
Transmission frequency range: 584 – 608 MHz
Channels: 96 (8 groups of 12 channels)
Frequency response: 60 – 16,000
Groups: 8
Directivity: Cardioid
Microphone type: Dynamic
Signal-to-noise ratio: >95 dB
Rated HF output power: Variable (2mW, 10mW, 30mW)
Controls: select
Indicators: OLED Display
Operating voltage: 2 x AA battery
Operating time: >10 h (with alkaline batteries)
Weight: 0,25 kg
Length: 257 mm
Diameter: 51 mm
Other features: switchable RF power

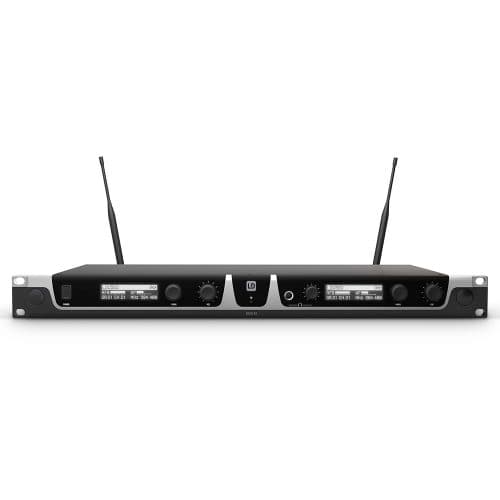

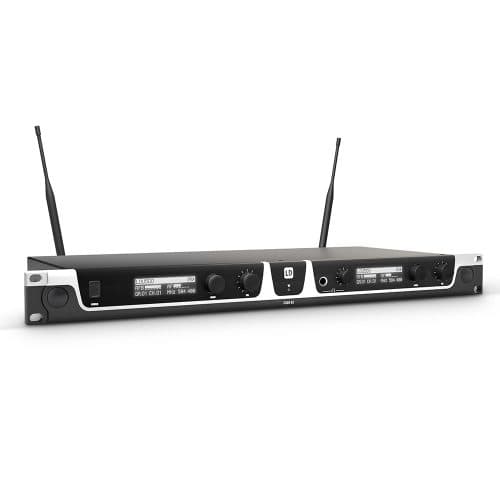

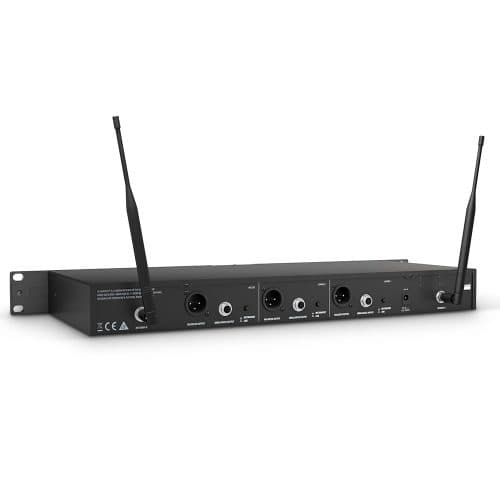

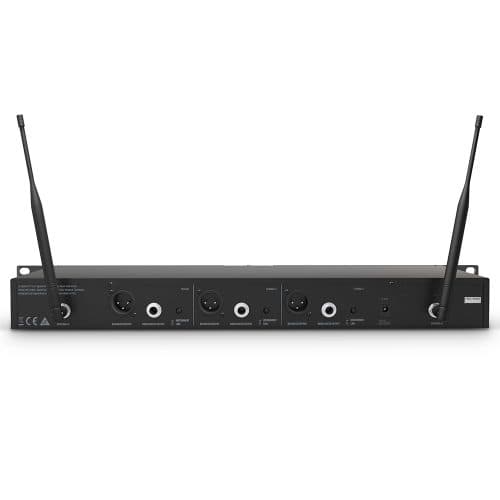

LDU505R2 – LD Systems U505 HBH 2 Dual receiver
Product type: Wireless Microphone System Accessories
Type: true diversity
Transmission frequency range: 584 – 608 MHz
Modulation Type: FM
Channels: 2 x 96 (8 groups of 12 channels)
Frequency response: 30 – 16000
Groups: 8
Antenna inputs: 2
Antenna connector: BNC
Signal-to-noise ratio: > 100 dB
Noise reduction: Squelch
Total Harmonic Distortion (THD): < 0.1 %
Audio output, balanced: 2 x XLR
Controls: volume
Audio output, unbalanced: 2 x 6.3 mm TS
Indicators: 2 x OLED Display
Audio mix output, balanced: XLR
Accessories (included): power adapter
Width: 484 mm
Audio mix output, unbalanced: 6.3 mm jack
Height: 44 mm
Depth: 200 mm
Max. output level: +10 dBu
Weight: 2,05 kg
Headphones output: 1
Headphones outputs: 6.3 mm TRS
Other features: Pilot tone
Operating voltage: 12 V DC, 1000 mA

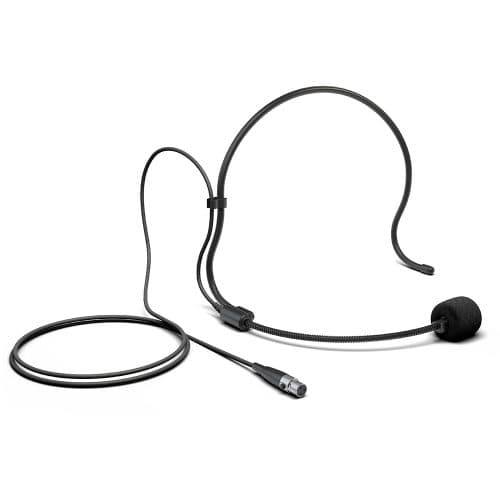

LDWS100MH1 – LD Systems U505 HBH 2 Headset
Product type: Wireless Microphone System Accessories
Type: Headsets
Frequency response: 20 – 20.000
Directivity: Cardioid
Nominal impedance: 680 Ohm(s)
Phantom power requirements: 5 V
Microphone input: Mini-XLR (3-pin, female)
Accessories (included): Foam windscreen
Weight: 0,049 kg
