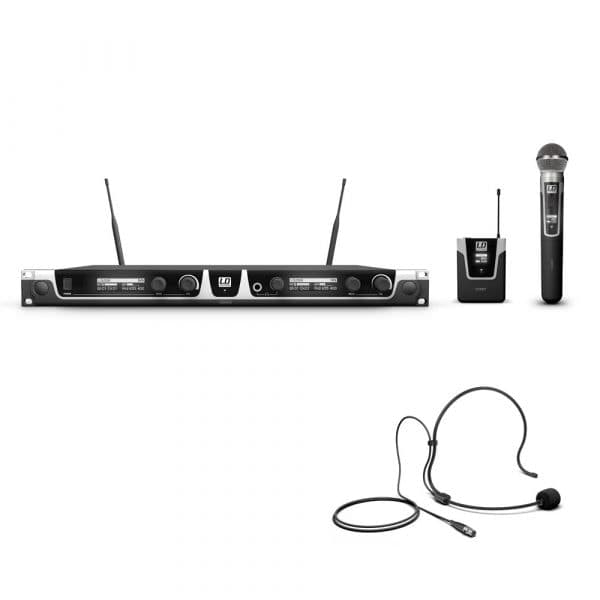

LD Systems U506 HBH2 – Dual Wireless Microphone System

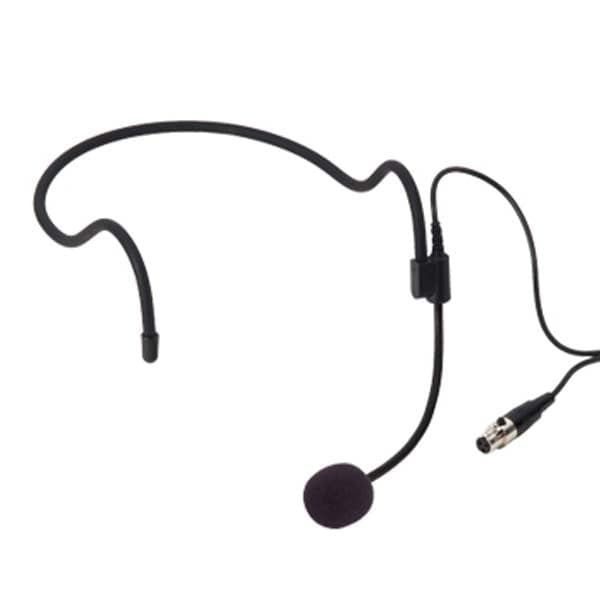

The LD Systems U506 HBH2 is a dual wireless vocal microphone that offers professional technology and sound quality. Comprising of a dynamic handheld microphone and bodypack + headset, this system offers maximum flexibility while delivering amazing quality and reliability for your event.

Features

• True diversity UHF wireless system

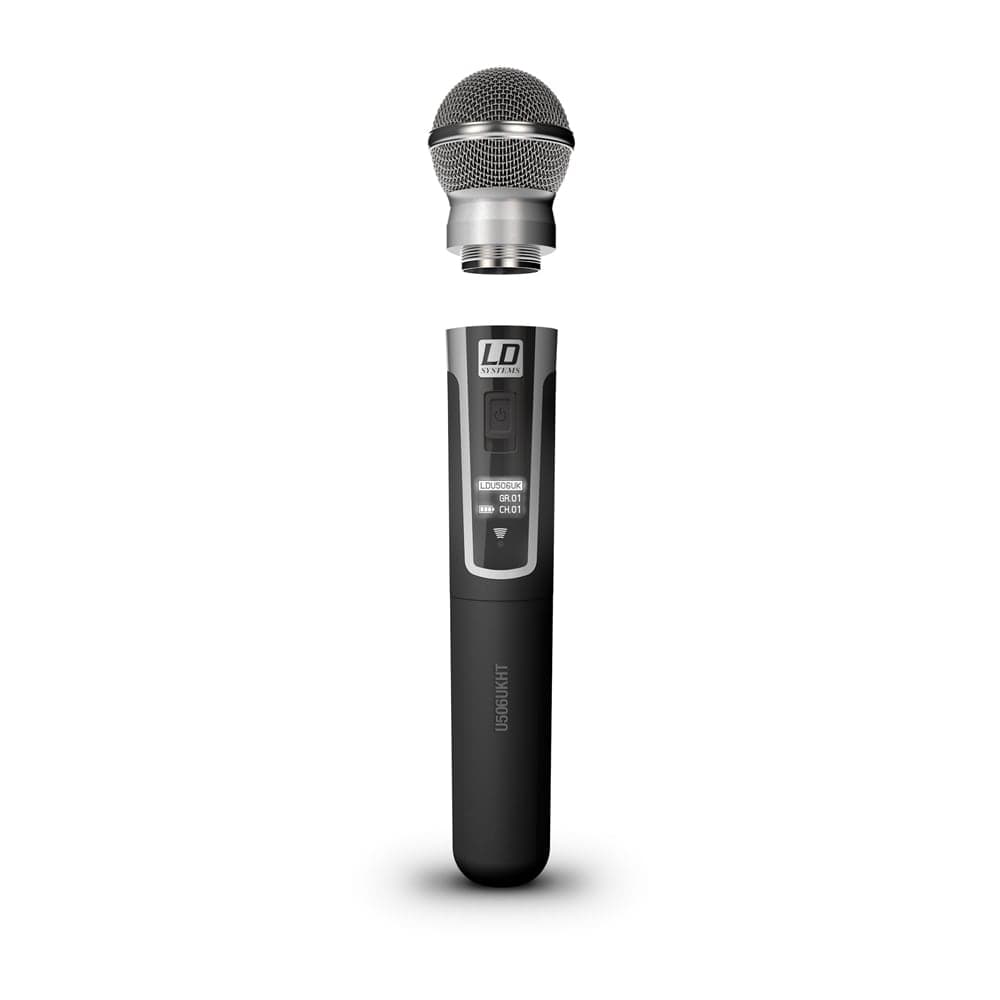

• Shock-mounted dynamic and condenser microphone capsules
• Automatic channel scan
• Easy one-touch infrared frequency syncing
• Pilot tone squelch circuit prevents noise
• Switchable RF transmitter output (2, 10 or 30 mW)
• Rugged enclosures
• High-contrast OLED display

Spec

Product Code: LDU506UKHHD2

Microphone Type: Dual Headsets / Handheld

Operating Frequency: 655 – 679 MHz MHz

Presets: 96 Channels (8 groups of 12 channels)

Frequency response: 30Hz – 16kHz

THD: < 0.9 %

Signal-to-noise ratio: >90dB, > 105dB

Squelch: Yes

Pilot Tone: Yes

RF Output Power: Variable (2mW, 10mW, 30mW)

Power Requirements:

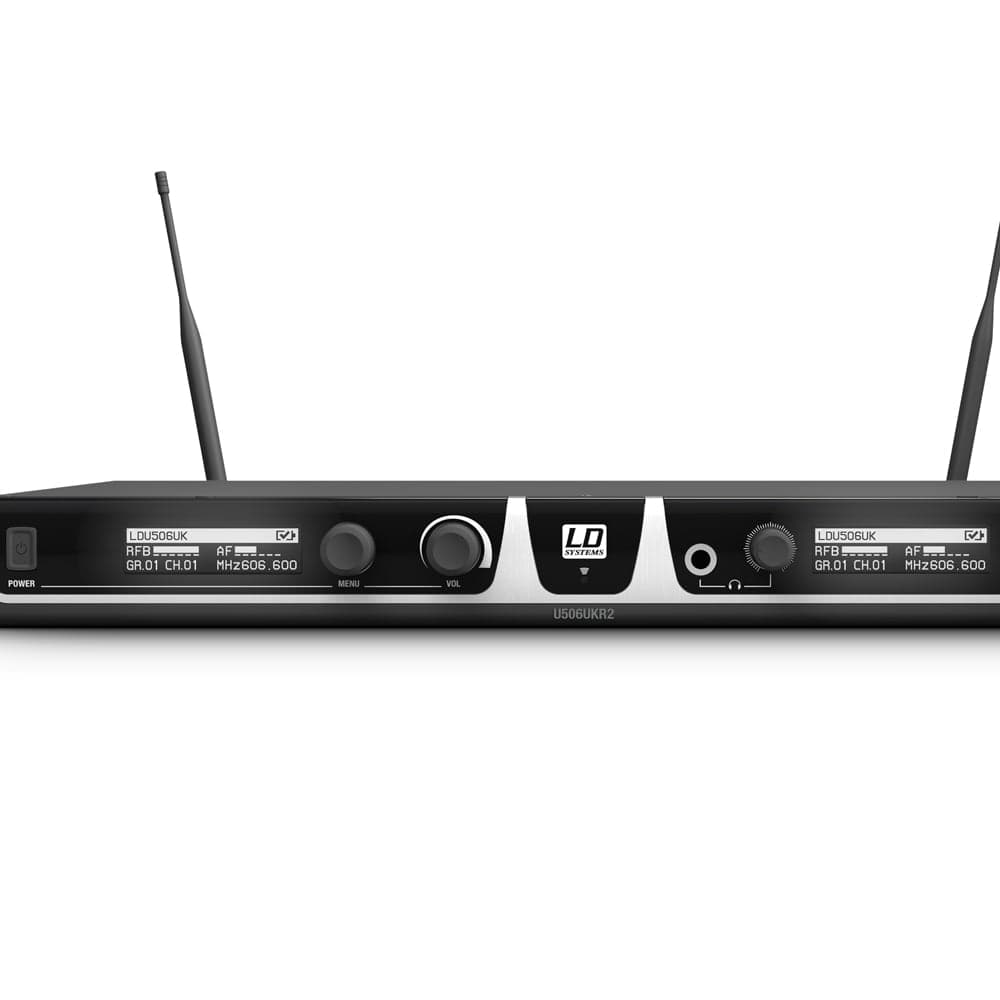

• Receiver: Power Supply 12V DC (included)
• Body Pack: 2x AA batteries
• Handheld: 2x AA batteries

Operating time (batteries): >10 hr (with alkaline batteries)

Dimensions:

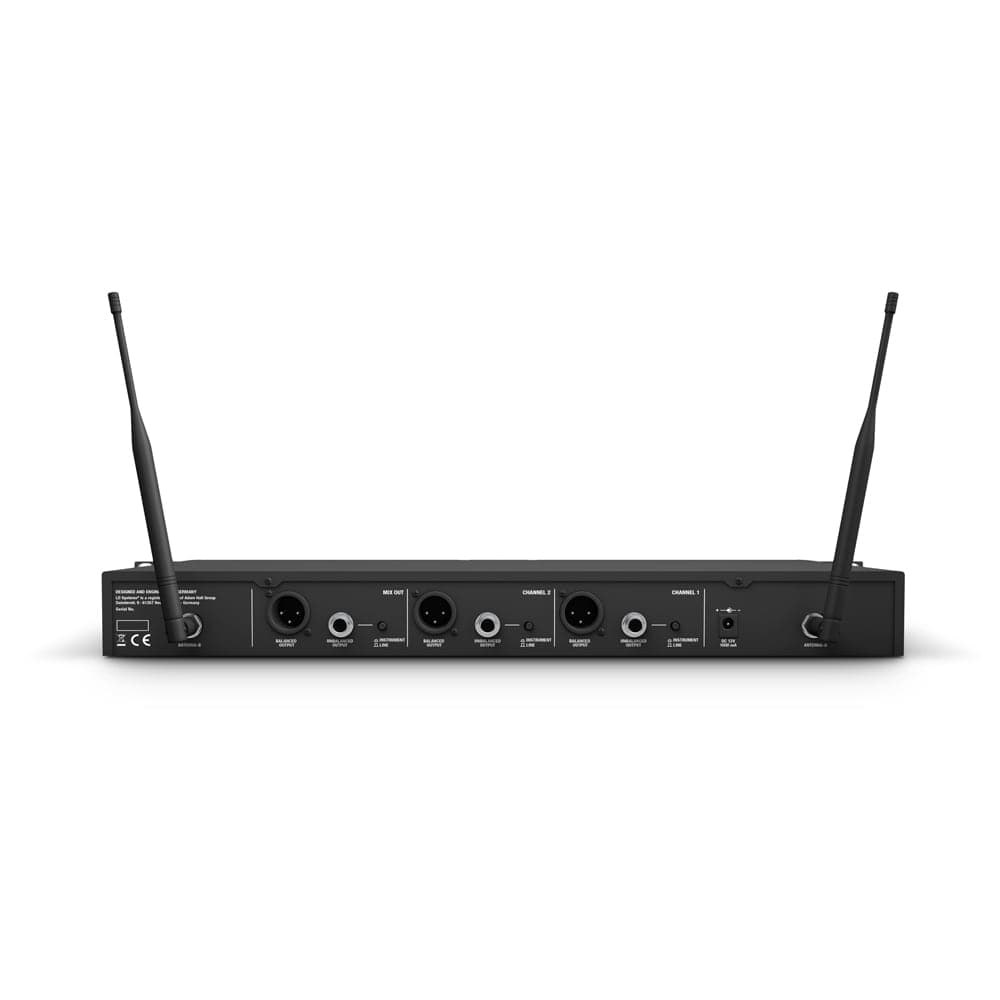

• Receiver: 484 x 44 x 200 mm

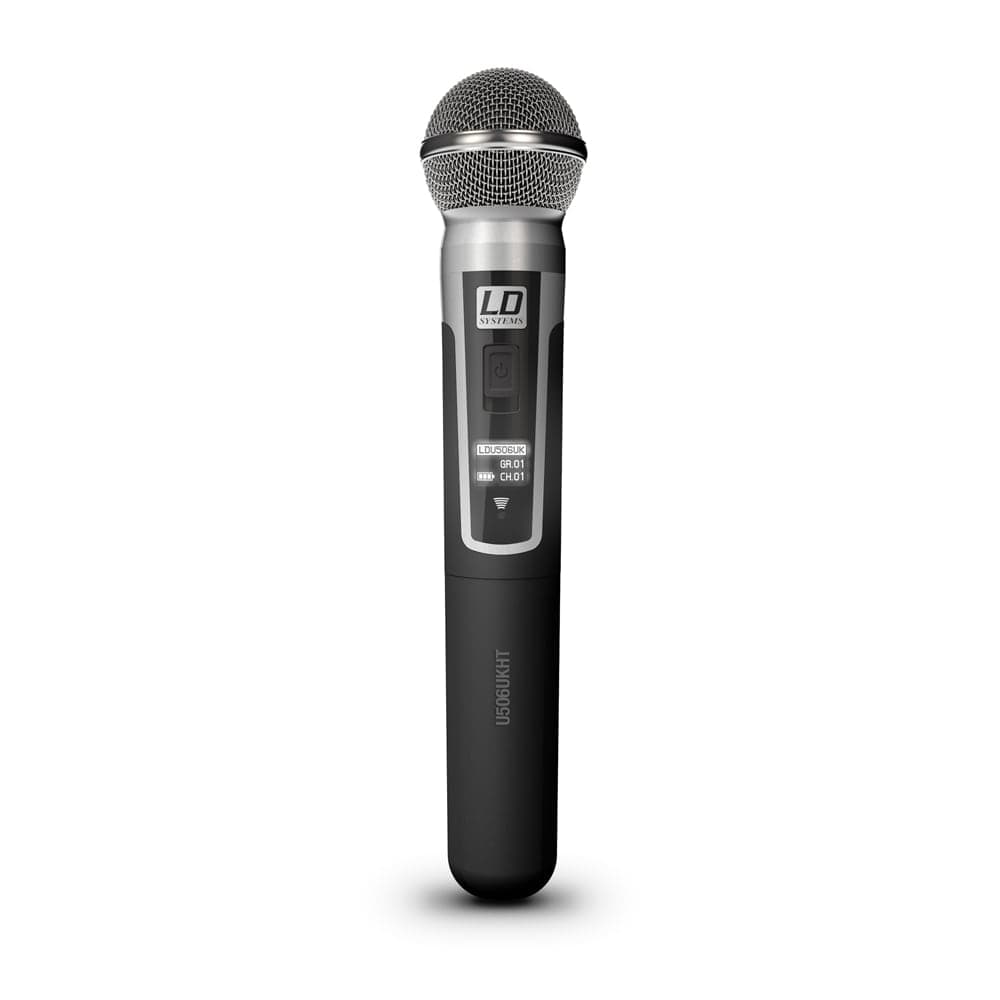

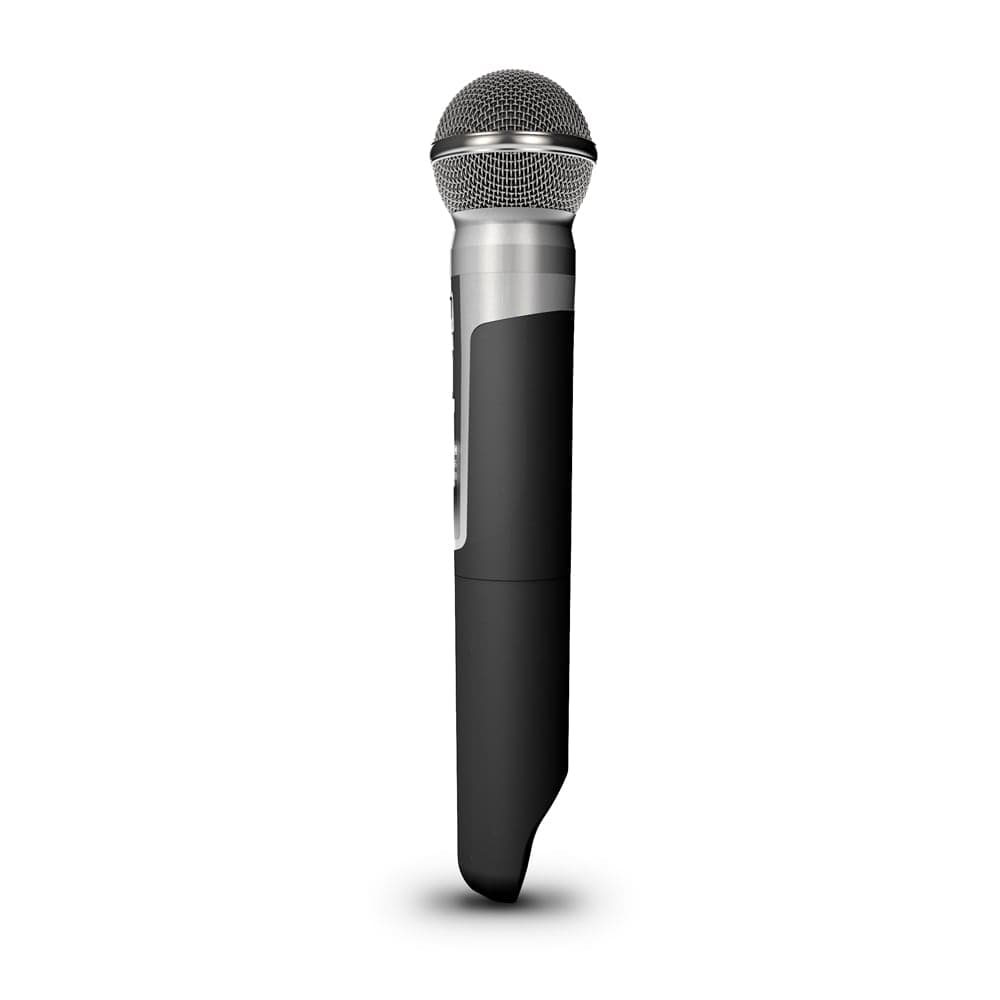

• Handheld: Ø 51 x 257 mm

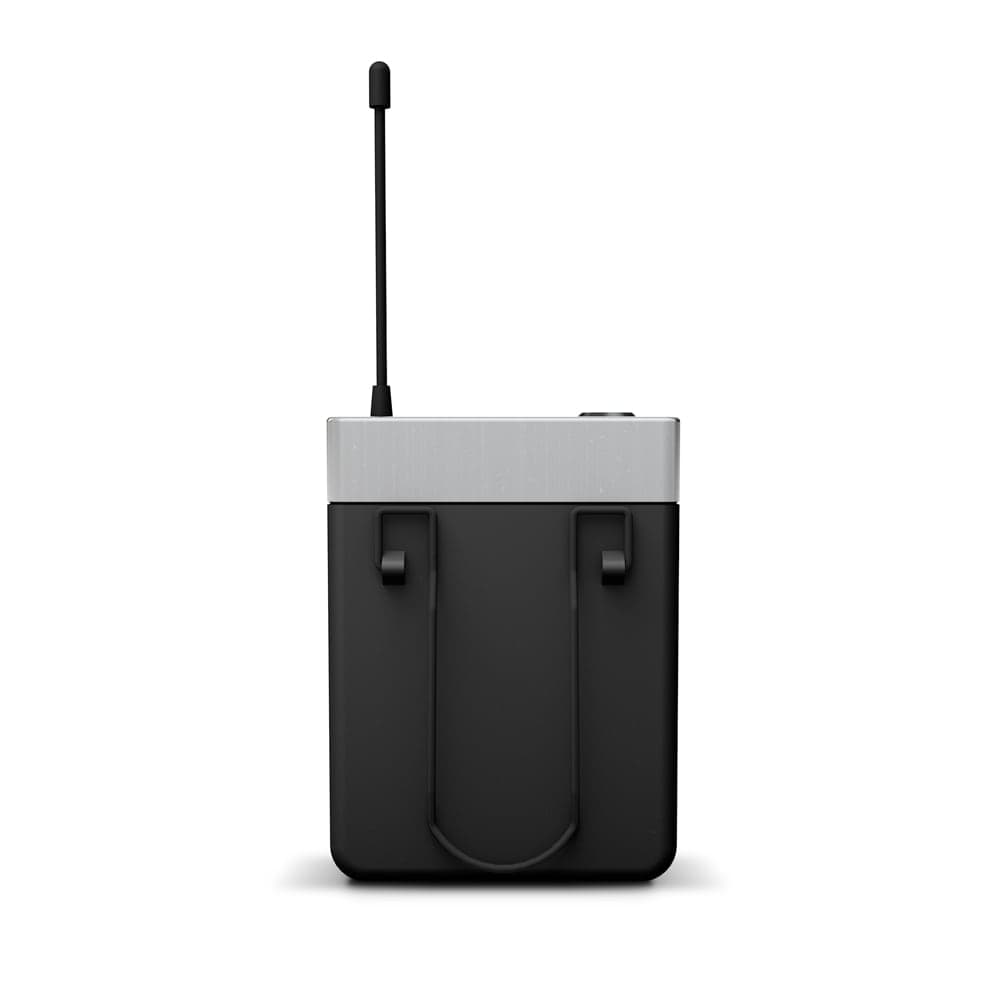

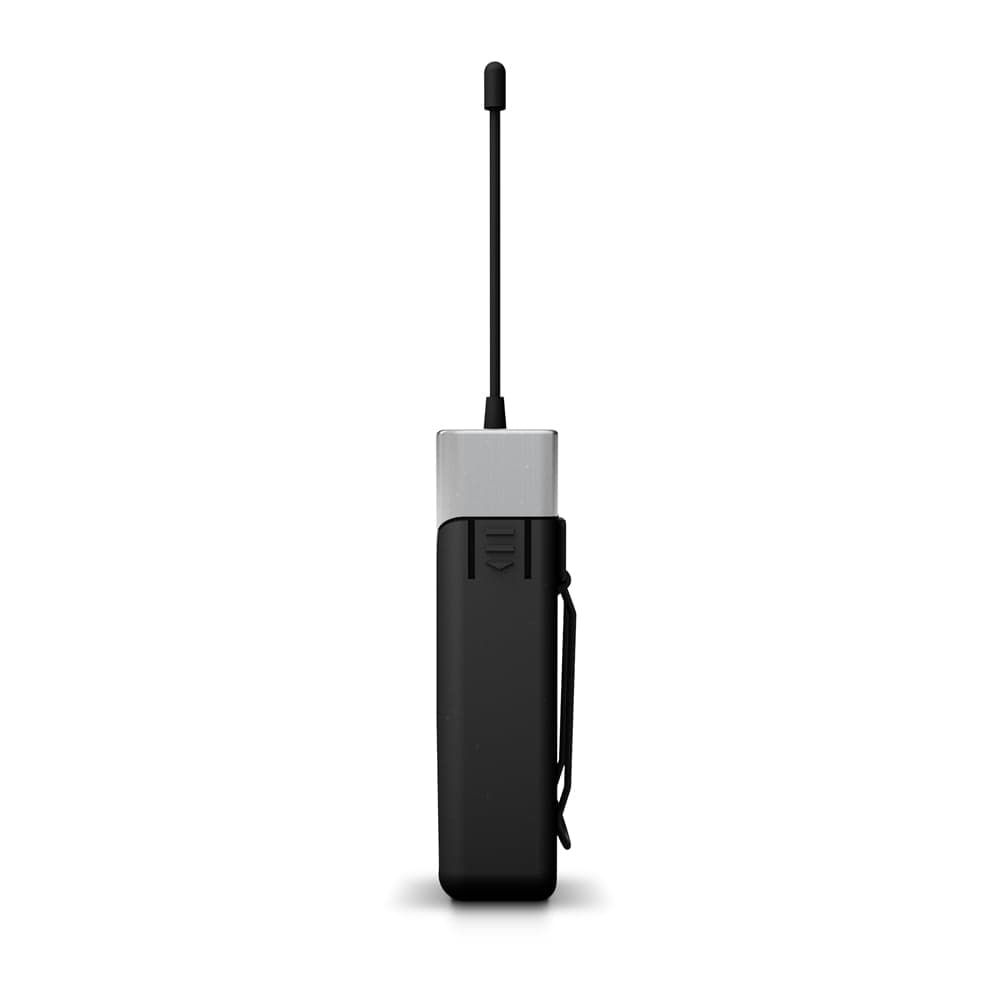

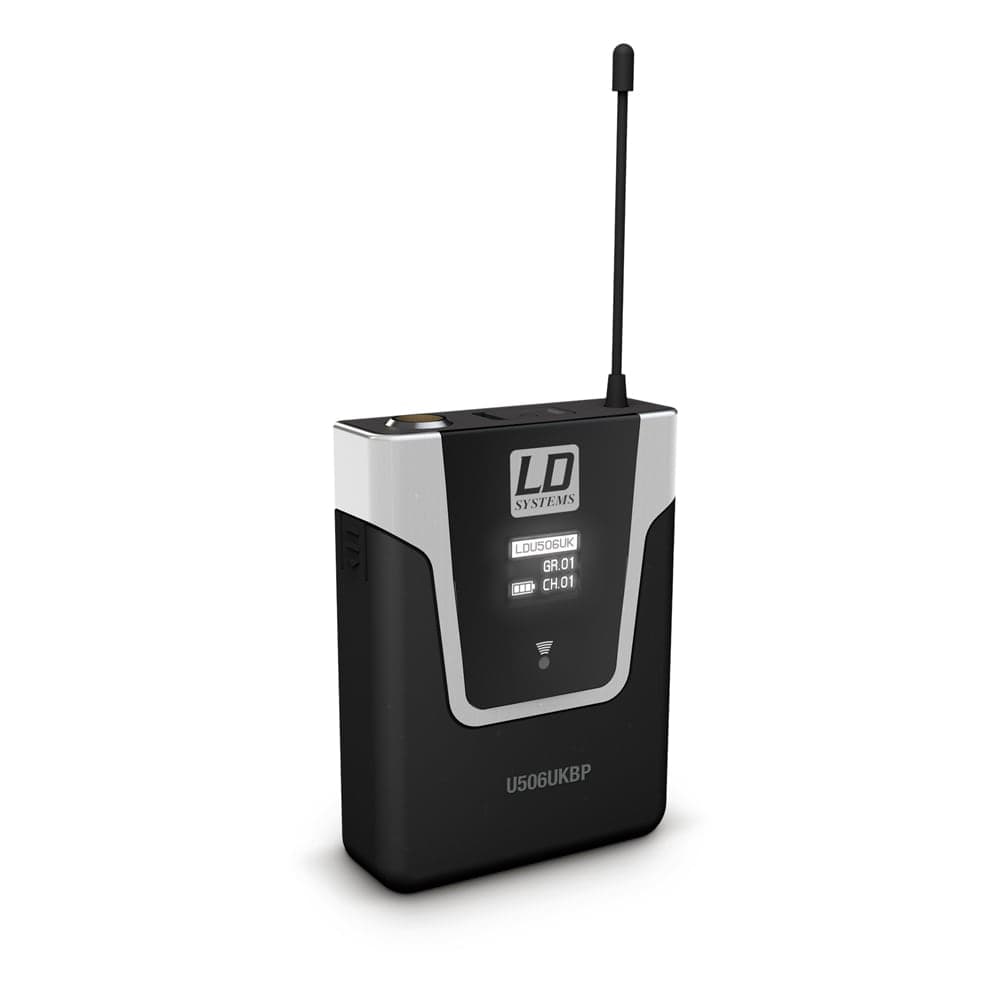

• Bodypack: 23 x 86 mm

Weight:

• Receiver: 2.05 kg
• Handheld: 0.25 g
• Body Pack: 90 g
