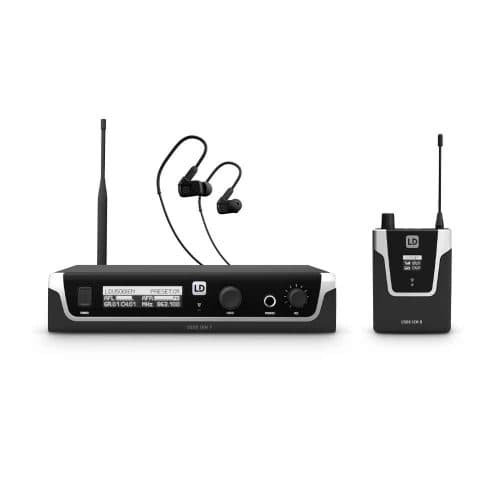

LD Systems U506 IEM HP In-Ear Monitoring System w/ Earphones
The U506 IEM HP In-Ear Monitoring System with Earphones gives you the perfect solution for moving freely on-stage while ensuring the perfect monitor mix is delivered straight to your ears
Features
- Reliable in-ear monitoring with more than 100 m range
- 96 available channels
- 2, 10 or 30 mW ERP selectable transmission power
- Convenient infrared frequency syncing
- Individual user name assignment and memory for 10 custom presets
- Extended frequency response
- 3-band EQ with parametric mids
- Switchable limiter
- Stereo, focus and mono modes of operation
- High-contrast OLED display
- Transmitter with direct monitoring headphone output
- Bodypack receiver with three selectable squelch levels
- 10 h of bodypack receiver operation on two AA batteries
- Simultaneous operation of up to 12 systems
- U500® IEM transmitter compatible with U300® IEM bodypacks
Spec

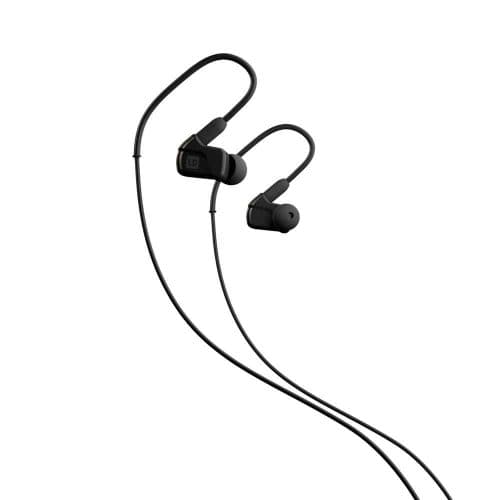

LDIEHP2 – LD Systems U506 IEM HP Professional In-Ear Headphones
Product type Headphones
Type Stereo-In-Ear Headphones
Converter principle Dynamic
Impedance 32 Ohm(s)
Connection type 3.5 mm TRS
Frequency response 20 – 18000 Hz
Cable length 1.55 m
Weight 0,022 kg
Accessories (included) Transport case

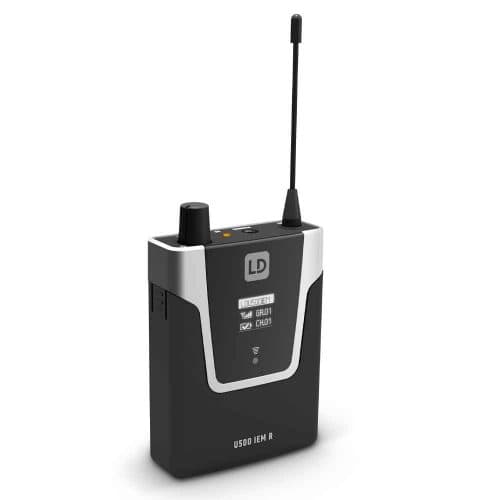

LDU506IEMR – LD Systems U506 IEM HP Receiver
Product type In-ear Monitoring Accessories
Type Receivers
Transmission frequency range 655 – 679 MHz
Channels 12
Transmission method FM, mono/stereo
Frequency response 40 – 16000 Hz
Audio output 3.5 mm TRS
Max. audio output level 80 mW @ 33 Ohm mW
Indicators RF (LED)
Operating time < 10 Std.
Antenna connector Fixed to housing
Controls volume
Operating voltage 2 x 1.5 V AA
Width 64 mm
Features battery status LED
Height 100 mm
Depth 24 mm
Weight 0,095 kg
Accessories (included) Antenna

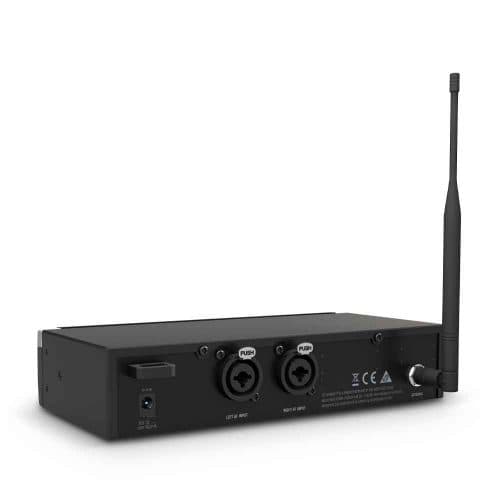

LDU506IEMT – LD Systems U506 IEM HP Transmitter
Type Transmitters
Modes of operation mono/stereo
Rated HF output power Variable (2mW, 10mW, 30mW)
Signal-to-noise ratio 93 dB
Total Harmonic Distortion (THD) 0.3 %
Dynamic range 88 dB
Inputs 2
Input connectors XLR (balanced)
Input impedance (kOhms) 12 kOhm
Antenna connector BNC
Controls volume headphones
Operating voltage 12 – 18 V DC
Accessories (included) power adapter
