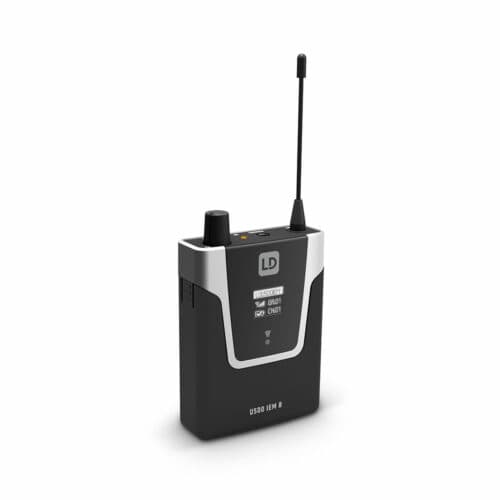

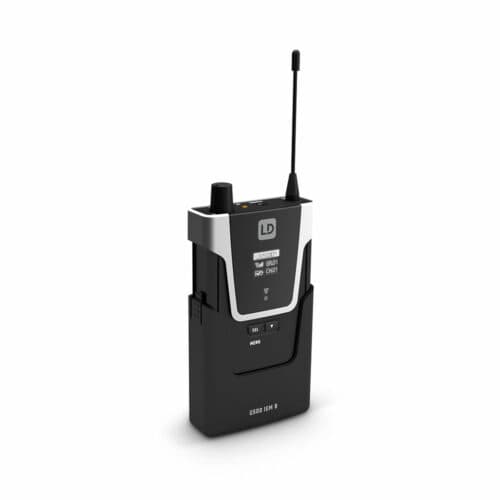

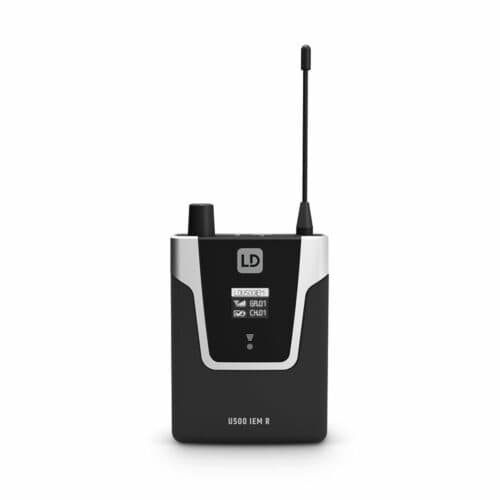

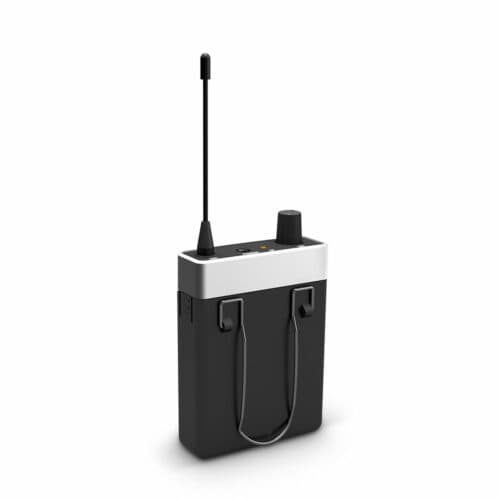

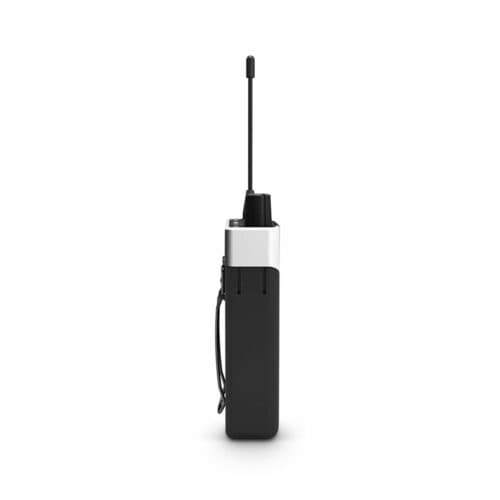

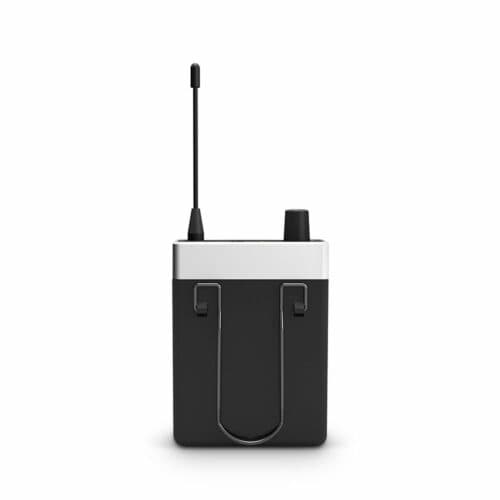

LD Systems U506 IEM R Receiver
The LD Systems U506 IEM R allows for Reliable in-ear monitoring with more than 100 m range. U500® In-Ear Monitoring Systems feature 96 selectable channels and; 2, 10 or 30 mW switchable RF output power for a transmission range greater than 100 m.
Features
- Reliable in-ear monitoring with more than 100 m range
- 96 available channels
- 2, 10 or 30 mW ERP selectable transmission power
- Convenient infrared frequency syncing
- Individual user name assignment and memory for 10 custom presets
- Extended frequency response
- 3-band EQ with parametric mids
- Switchable limiter
- Stereo and mono modes of operation
- High-contrast OLED display
- Transmitter with direct monitoring headphone output
- Bodypack receiver with three selectable squelch levels
- 10 h of bodypack receiver operation on two AA batteries
- U500® IEM transmitter compatible with U300® IEM bodypacks
Spec
Product type: In-ear Monitoring Accessories
Type: Receivers
Transmission frequency range: 655 – 679 MHz
Channels: 12
Transmission method: FM, mono/stereo
Frequency response: 40 – 16000 Hz

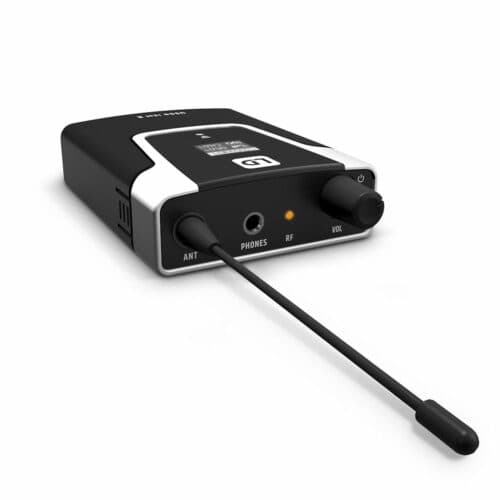

Audio output: 3.5 mm TRS
Max. audio output level: 33 mW @ 16 Ohm mW, 80 mW @ 33 Ohm mW
Antenna connector: Fixed to housing
Controls: Down, On / Off, Up, volume
Indicators: Multifunctional OLED-Display, RF (LED)
Operating voltage: 2 x 1.5 V AA
Operating time: < 10 hours
Width: 64 mm
Height: 100 mm
Depth: 24 mm
Weight: 0,095 kg

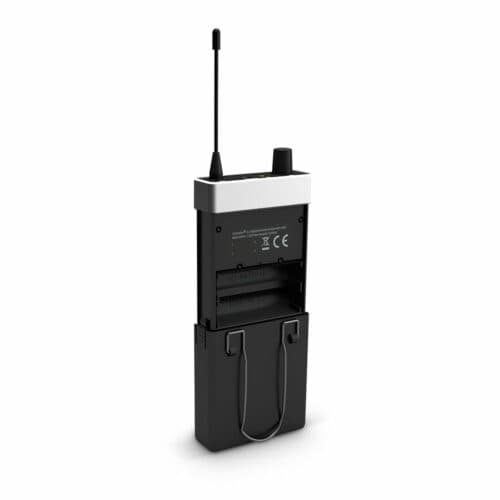

Accessories (included): 2 x AA batteries, Antenna
Features: battery status LED
