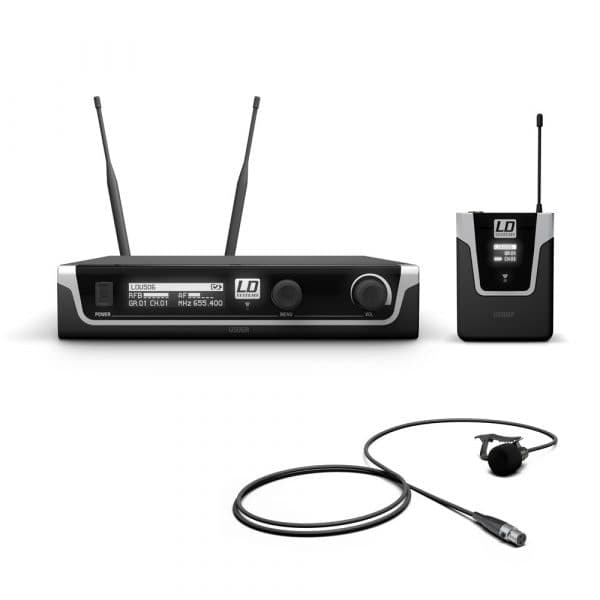

LD Systems U506BPL Wireless Lapel Microphone System



LD Systems U506BPL

The LD Systems U506BPL wireless lapel microphone is developed in Germany to bring you affordable, professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. Designed specifically for professional users to ensure that your performance is an impressive and emotional experience. Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. Operating on the 606 – 614 MHz frequency band, where up to 12 single systems (6 dual systems) can be operated simultaneously. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronization of transmitter and receiver to facilitate easy setup. High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. Perfect for live vocal performances, speech and public addressing, and many more applications.

Features

• True diversity UHF wireless system
• Shock-mounted microphone capsule

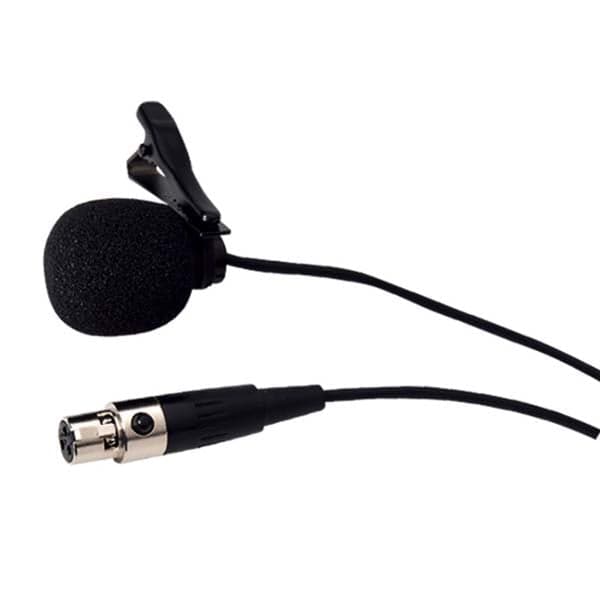

• Clip on lapel prevents the microphone from moving during performances
• Automatic channel scan
• Easy one-touch infrared frequency syncing
• Pilot tone squelch circuit prevents noise
• Switchable RF transmitter output (2, 10 or 30 mW)
• Rugged enclosures

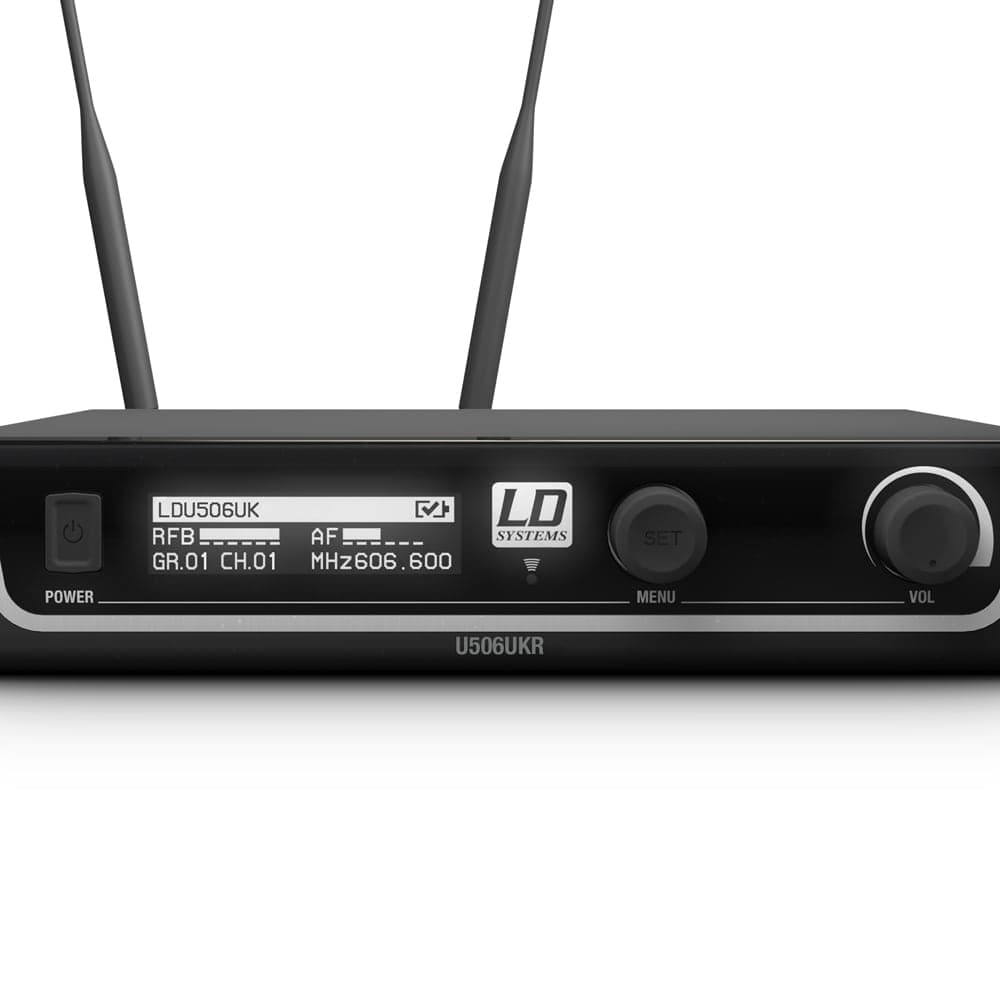

• High-contrast OLED display

Spec

Product Code: LDU506BPL

Microphone Type: Lavalier Bodypack

Operating Frequency: 655 – 679 MHz

Presets: 96 Channels (8 groups of 12 channels)

Frequency response: 30Hz – 16kHz

THD: < 0.9 %

Signal-to-noise ratio: >95 dB

Squelch: < 0.1 %

Pilot Tone: Yes

RF Output Power: Variable (2mW, 10mW, 30mW)

Power Requirements:

• Receiver: Power Supply 12V DC (included)
• Body Pack: 2x AA batteries

Operating time (batteries): >10 hr (with alkaline batteries)

Dimensions:

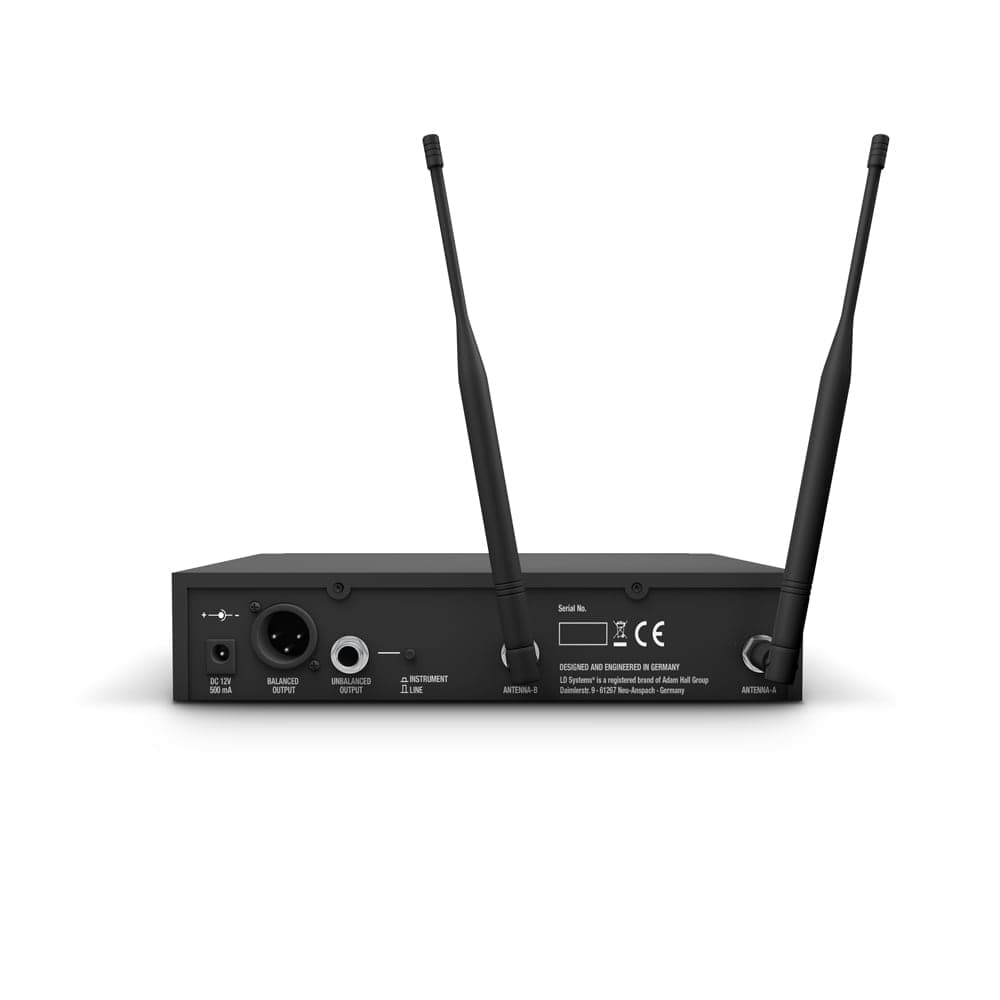

• Receiver: 484 x 44 x 200 mm

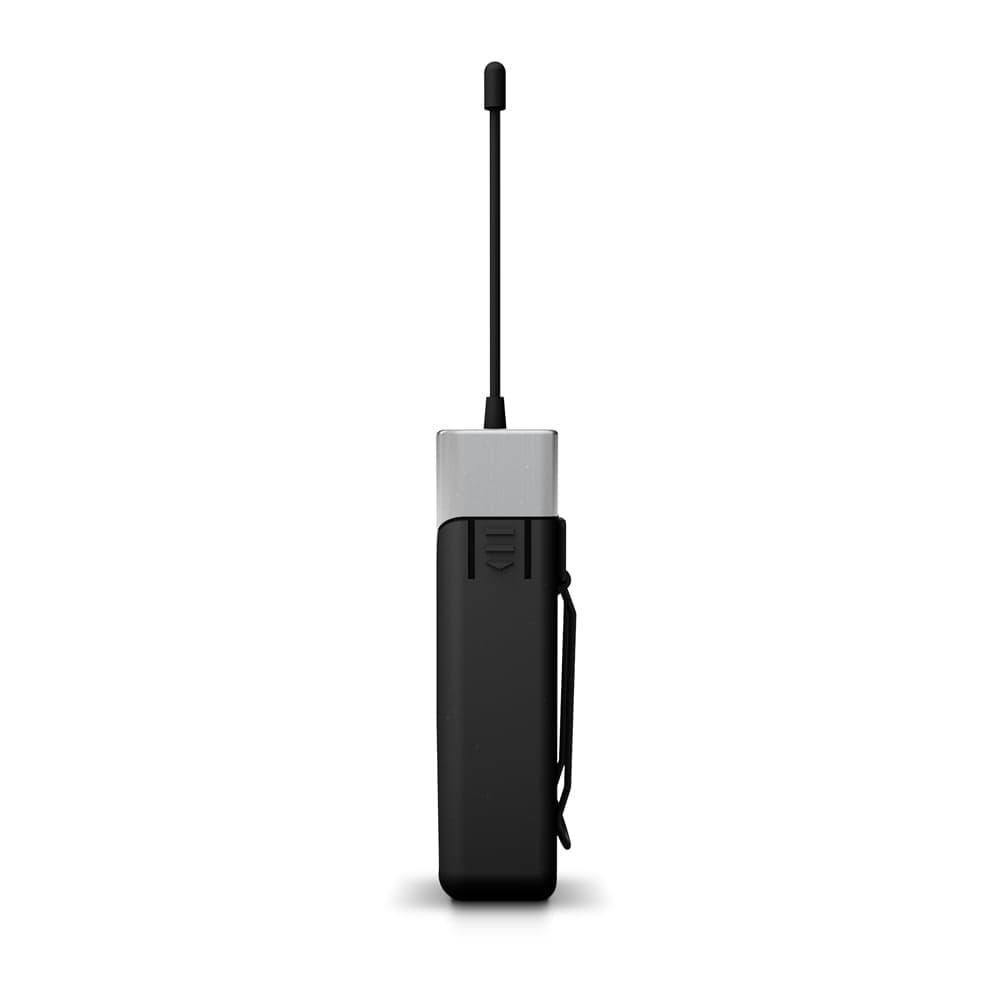

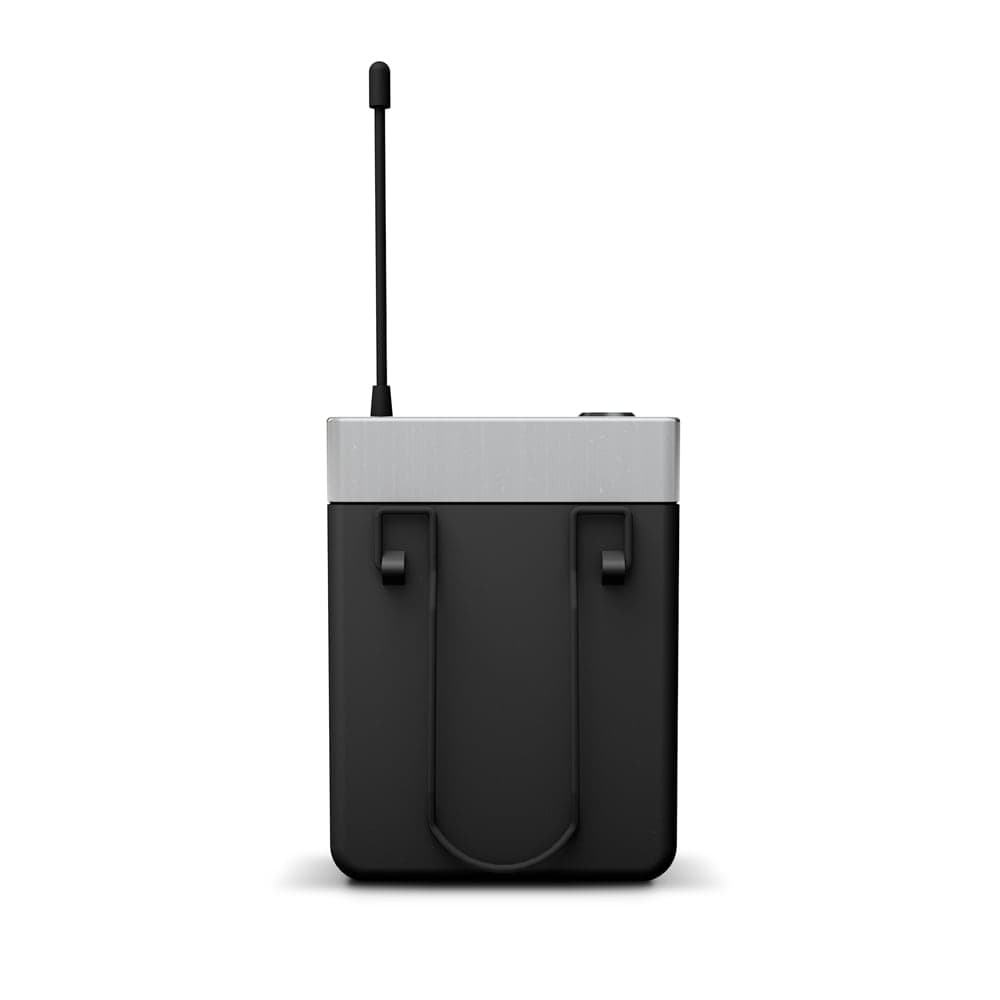

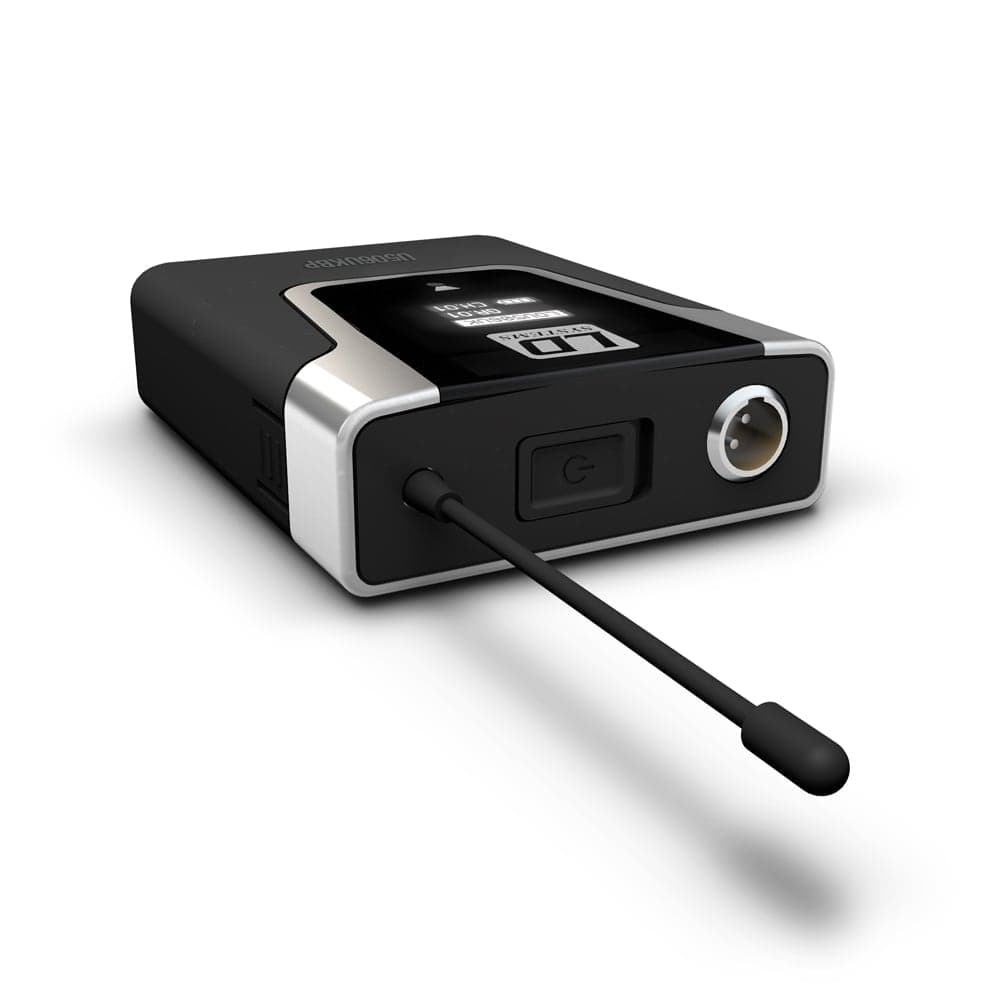

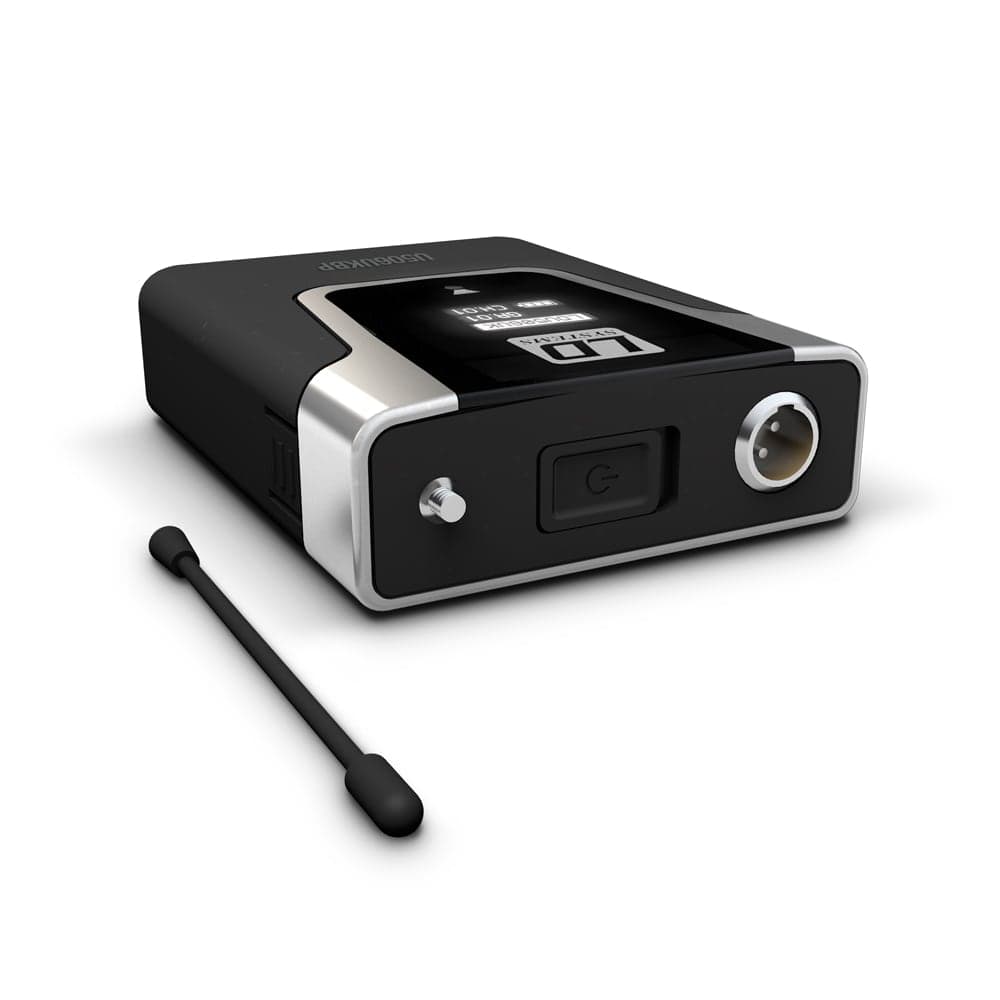

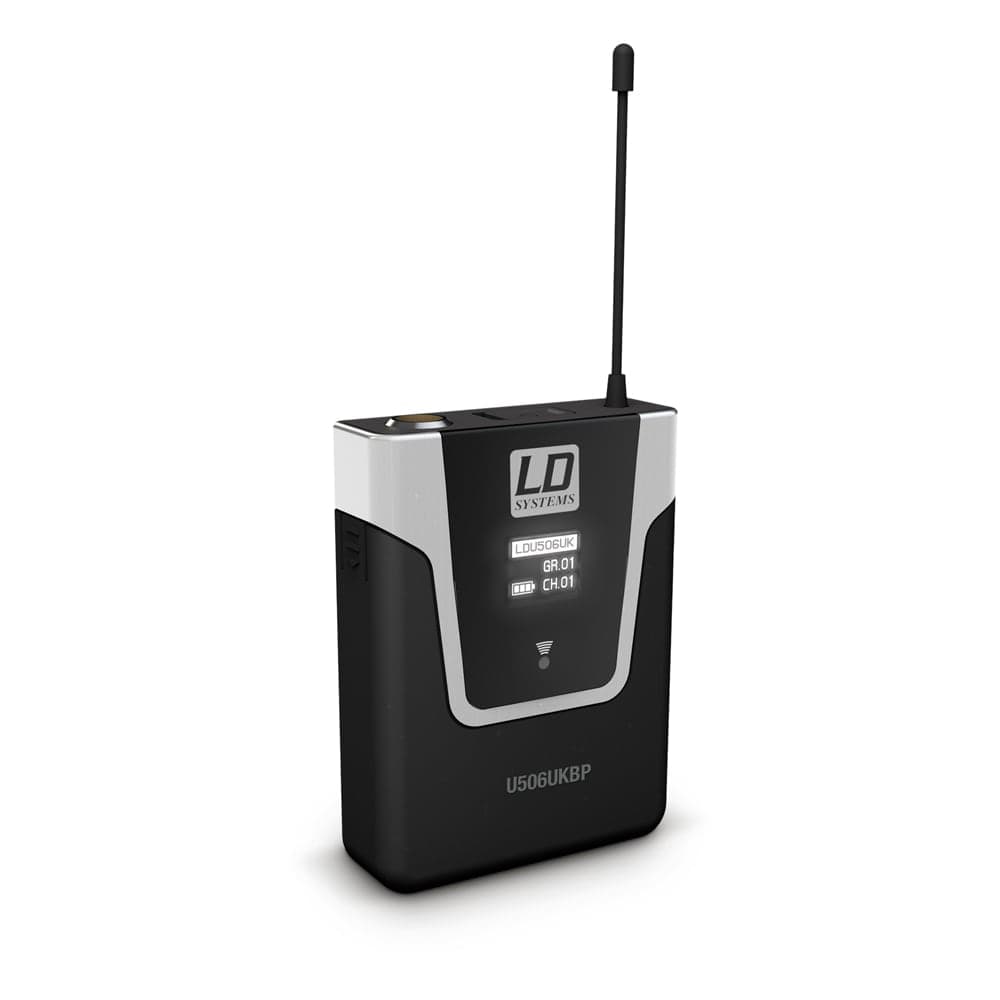

• Transmitter: 65 x 86 x 23 mm

Weight:

• Receiver: 0.85 kg
• Transmitter: 90 g
