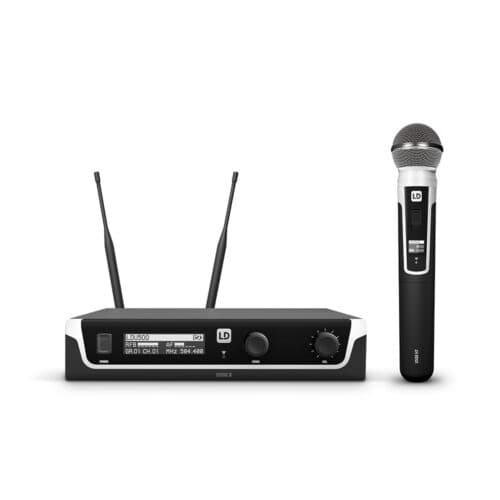

LD Systems U506HHD – Wireless Microphone System

The LD Systems U506HHD wireless vocal microphone system. It brings you affordable, professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations.

Features

• True diversity UHF wireless system

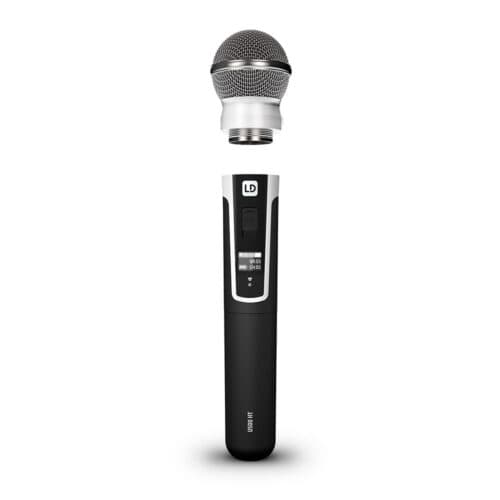

• Shock-mounted dynamic  microphone capsule
• Automatic channel scan
• Easy one-touch infrared frequency syncing
• Pilot tone squelch circuit prevents noise
• Switchable RF transmitter output (2, 10 or 30 mW)
• Rugged enclosures

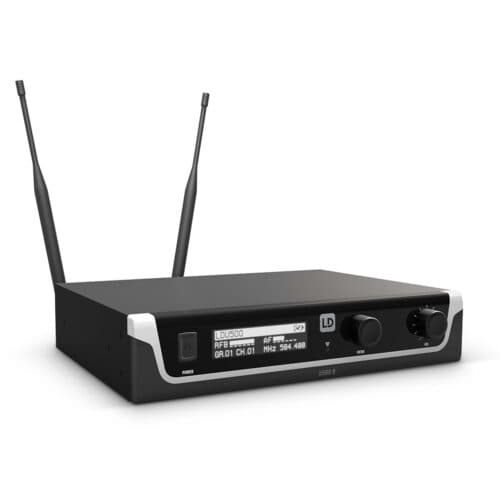

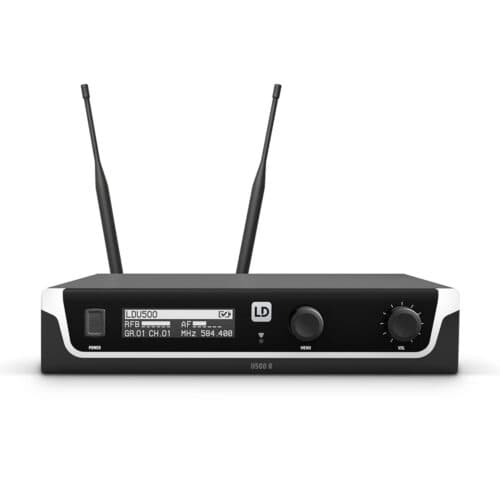

• High-contrast OLED display

Spec

Product Code: LDU506HHD

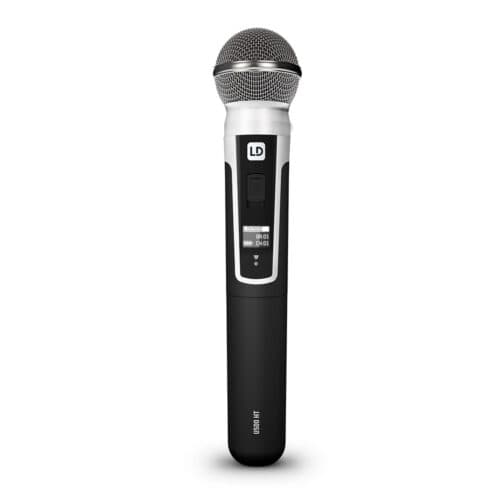

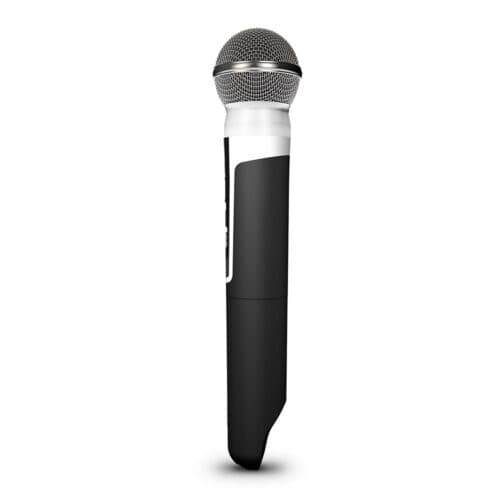

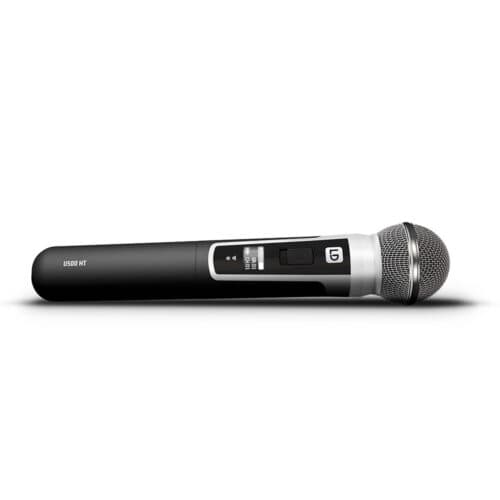

Microphone Type: Dynamic Handheld, Cardioid

Operating Frequency: 655 – 679MHzz

Presets: 96 Channels (8 groups of 12 channels)

Frequency response: 60Hz – 16kHz

THD: < 0.9 %

Signal-to-noise ratio: >95 dB

Squelch: < 0.1 %

Pilot Tone: Yes

RF Output Power: Variable (2mW, 10mW, 30mW)

Power Requirements:

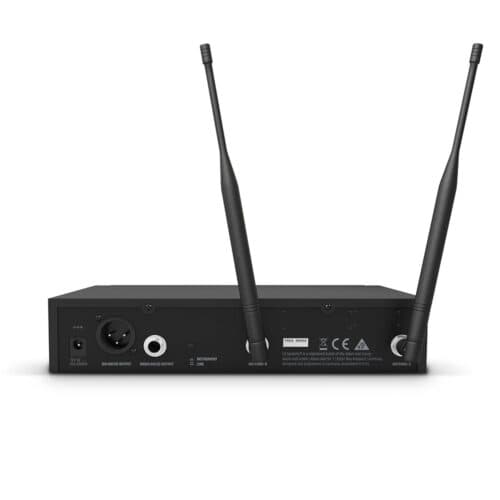

• Receiver: Power Supply 12V DC (included)
• Body Pack: 2x AA batteries

Operating time (batteries): >10 hr (with alkaline batteries)

Dimensions:

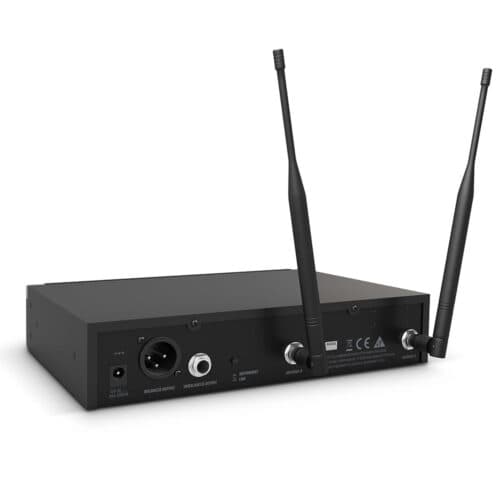

• Receiver: 484 x 44 x 200 mm
• Transmitter: Ø 50 x 257 mm

Weight:

• Receiver: 0.85 kg
• Transmitter: 0.25 g
