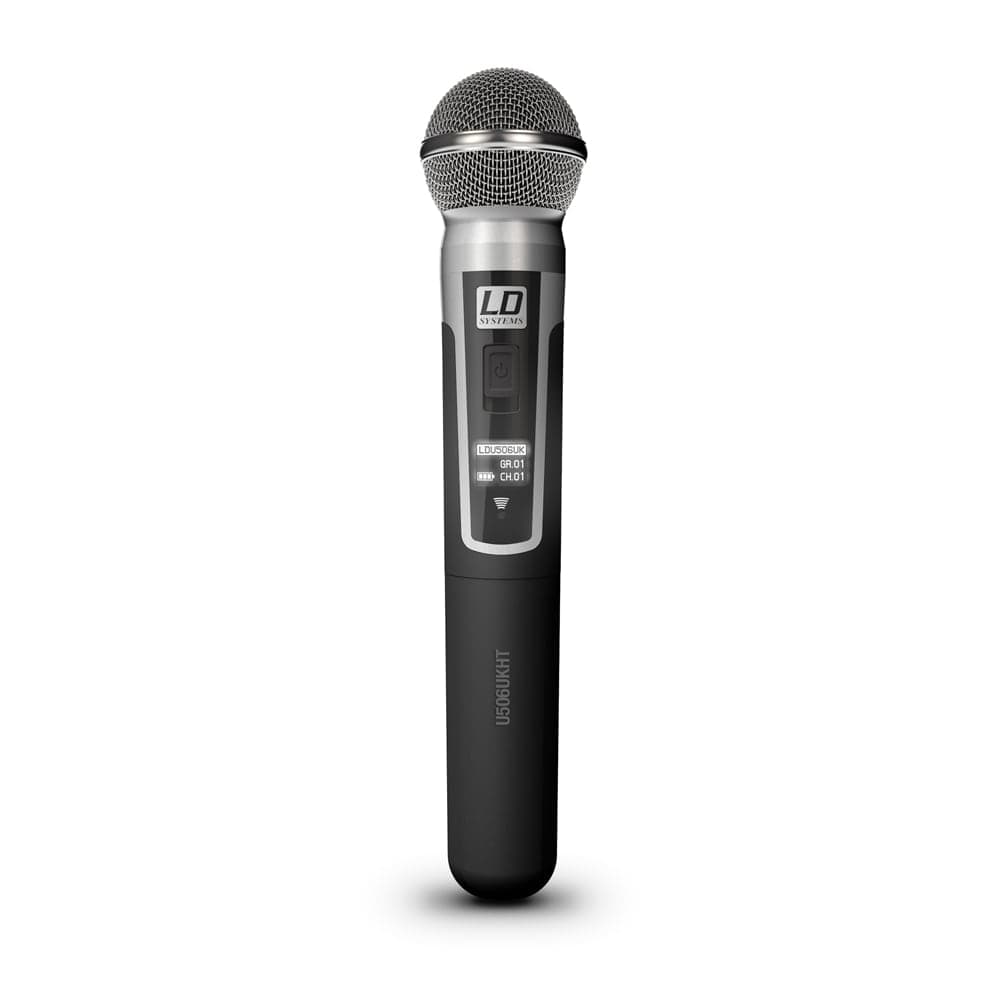

LD Systems U506MD Dynamic Handheld Microphone



LD Systems U506MD

The LD Systems U506MD is a high-quality wireless handheld dynamic microphone. Perfect as a replacement for an existing system or to add more flexibility to your current wireless microphone setup. Featuring automatic channel scanning, convenient infrared synchronization, intuitive menu navigation and an easily-readable OLED display featuring battery status indicator and username assignment. The U500® Series True Diversity UHF radio systems are ready to use in an instant. Operating in the B6:(655 - 679 MHz) frequency band with selectable RF output power and squelch control with pilot tone.  Ensuring optimum audio and transmission quality without artefacts and a free-field range of over 100m. Interchangeable microphone capsules enable the hand-held transmitter to be tailored to suit different speaking or singing voices. For direct connection to guitar and bass amps, the outputs of the single and double receiver are switchable to instrument level. The wide frequency range of 30 - 16,000 Hz also handles the lowest bass notes.

Features

• True diversity UHF wireless system
• Shock-mounted dynamic microphone capsules
• Automatic channel scan
• Easy one-touch infrared frequency syncing
• Pilot tone squelch circuit prevents noise
• Switchable RF transmitter output (2, 10 or 30 mW)
• Rugged enclosures
• High-contrast OLED display

Spec

Product type: Wireless Microphone System Accessories

Type: Microphones

Transmission frequency range: 655 – 679MHz

Channels: 96 (8 groups of 12 channels)

Microphone type: dynamic

Directivity: cardioid

Frequency response: 60 – 16,000Hz

Rated HF output power: Variable (2mW, 10mW, 30mW)

Controls: menu, Power On/Off, set

Indicators: OLED Display

Operating voltage: 2 x 1.5 V AA

Operating time: >10 h (with alkaline batteries)

Length: 252mm

Diameter: 52mm

Weight: 0.25kg
