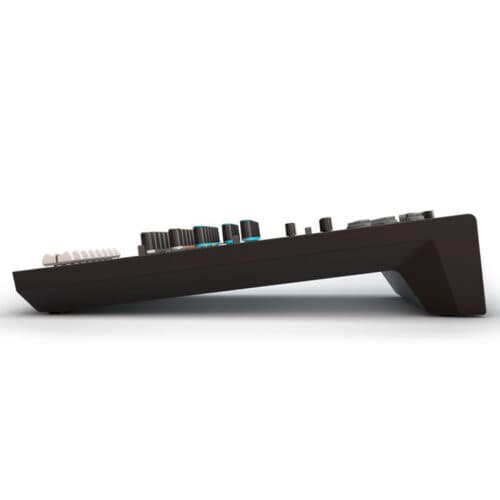

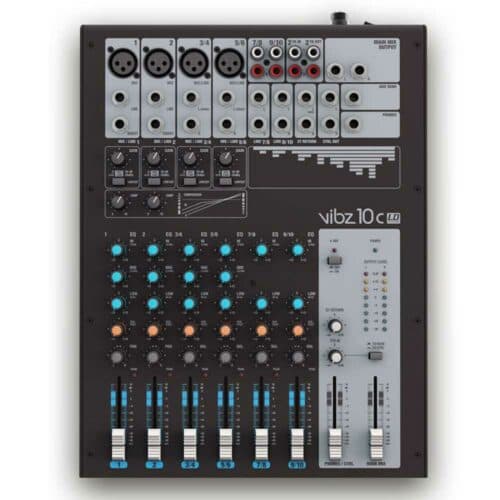

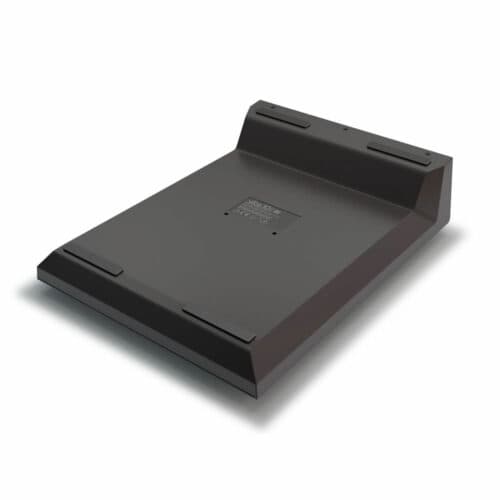

LD Systems VIBZ 10PA – 10 Channel Mixing Console with Compressor
The LD Systems VIBZ 10PA is a versatile 10-channel mixer with 4 microphone channels. It offers 4x stereo line inputs and Effective 3-band EQ. Furthermore, 2x stereo channels provide a 2-band EQ and the VIBZ 10PA includes a sliding adjustable compressor. 4x Mono Mic and Line Input Channels are available so you can use either 6.3 mm TRS or XLR inserts.
The master section of the mixer has an effects loop, adjustable monitor outputs and a headphone jack. The VIBZ 10PA also has inputs and outputs for recording and playback devices. The input signal can also be set on the master or monitor output and the volume adjusted.
With its transparent, detailed sound and easy operation, VIBZ 10PA is the perfect choice for small bands, installations and home recording or sub mixer applications. It also comes with an external power supply that can be tightly secured to the mixer. Additionally, a footswitch for the effects section and an adapter for mounting the VIBZ 10PA onto microphone stands is available as an accessory.
Main Section Controls
The main section of the VIBZ 10PA offers; 2-track Assignment (Main, Contr. Room), 2-track In Volume, Master Volume, Phantom Power, Phones / Control Room Volume, Stereo Return Volume.
Mono Channel Controls the VIBZ 10PA offers is a; 3-band EQ (High, Mid, Low), AUX (DFX) Post, Channel Volume, Compressor, Gain, Low Cut (75 Hz), pan.
Stereo Channel Controls the VIBZ 10PA offers is; 2-band EQ (High, Low), 3-band EQ (High, Mid, Low), AUX Post, Balance, Channel Volume, Gain, Low Cut.
Also available is the LD Systems VIBZ 12DC – 12 Channel Mixing Console with DFX and Compressor.
Features
- Professional 10-channel mixer
- 4 high quality and low-noise microphone pre-amps
- Mono compatible stereo channels
- Integrated compressor
- 3-Band parametric EQ on 4 channels
- 2-Band EQ on 2 Stereo channels
- AUX output for external FX or fold-back applications
- External power supply
- German design
Spec
Product type: Mixers
Type: Live
Channels: 10
Mono Channels:
Mono Mic and Line Input Channels: 4
Mono Mic input connectors: 6.3 mm TRS, XLR
Channel Inserts: 2
Channel Insert Connectors: 6.3 mm TRS
Mono Mic Input Type: Electronically balanced
Mono Mic Input Frequency Range: 10 – 45000 Hz
Amplification Range mono Mic Input: 0 – 50 dB
Mono Mic Input Input THD-N: 0.0058%
Mono Mic Input Impedance: 4k Ohm(s)
Mono Mic Input S/N Ratio: 113 dB
Mono Line Input Type: Electronically balanced
Mono Line Input Frequency Range: 10 – 45000 Hz
Amplification Range mono Line Input: 0 – 50 dB
Mono Line Input Input THD-N: 0.0045 %
Mono Line Input Impedance: 21k Ohm(s)
Mono Line Input S/N Ratio: 116 dB
Mono Channel Equalizer High: +/- 15 dB @ 12000 Hz
Mono Channel Equalizer Mid: +/- 15 dB @ 2500 Hz
Mono Channel Equalizer Low: +/- 15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels: 3-band EQ (High, Mid, Low), AUX (DFX) Post, Channel Volume, Compressor, Gain, Low Cut (75 Hz), pan
Phantom power: 48 V DC switchable
Stereo Channels:
Stereo Line Input Channels: 4
Stereo Line Input Connectors: 6.3 mm TRS
Stereo Line Input Type: Electronically balanced, unbalanced
Stereo Line Input Frequency Range: 10 – 45000 Hz
Amplification Range stereo Line Input: 0 – 50 dB
Stereo Line Input Input THD-N: 0.0045 %
Stereo Line Input Impedance: 3,7k Ohm(s)
Stereo Line Input S/N Ratio: 116 dB
Stereo channel equalizer treble: +/- 15 dB @ 12000 Hz
Stereo channel equalizer mids: +/- 15 dB @ 2500 Hz
Stereo channel equalizer bass: +/- 15 dB @ 80 Hz
Controls Stereo Line Input Channels: 2-band EQ (High, Low), 3-band EQ (High, Mid, Low), AUX Post, Balance, Channel Volume, Gain, Low Cut
Main Section:
AUX / Effects Send Channels: 1
AUX / Effects Send Connectors: 6.3 mm stereo jack unbalanced
Stereo AUX Return Channels: 1 x stereo
Stereo AUX Return Connectors: 6.3 mm TRS
Stereo Tape Out Channel: 1 x stereo
Stereo Tape Out Connectors: 2 x RCA (Cinch)
Stereo Tape-In Channel: 1 x stereo
Stereo Tape-In Connectors: 2 x RCA (Cinch)
Unbalanced stereo Main Outputs: 1
Unbalanced stereo Main Output Connections: 6.3 mm TRS
Unbalanced Stereo Main Out Impedance: 120 Ohm(s)
Max. Unbalanced Stereo Main Out Level: 20 dBu
Stereo Control Room Out: 1
Stereo Control Room Out Connectors: 6.3 mm TRS
Headphones output: 1
Headphones outputs: 6.3 mm TRS
Digital Effects Processor: no
Main section controls: 2-track Assignment (Main, Contr. Room), 2-track In Volume, Master Volume, Phantom Power, Phones / Control Room Volume, Stereo Return Volume
Indicators: Phantom Power, Power
Operating voltage: 18V DC – 1 A, External PSU, 230 V
Width: 265 mm
Height: 78 mm
Depth: 352 mm
Weight: 2.3 kg
