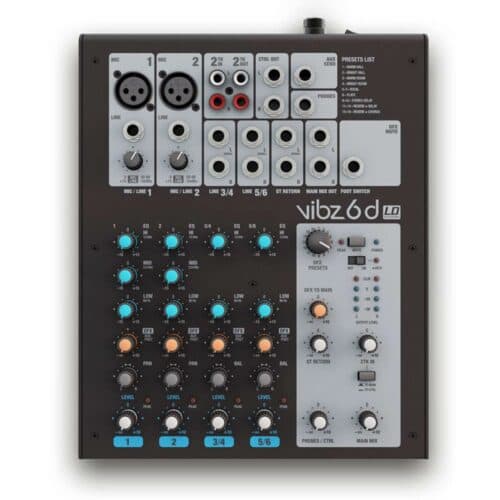

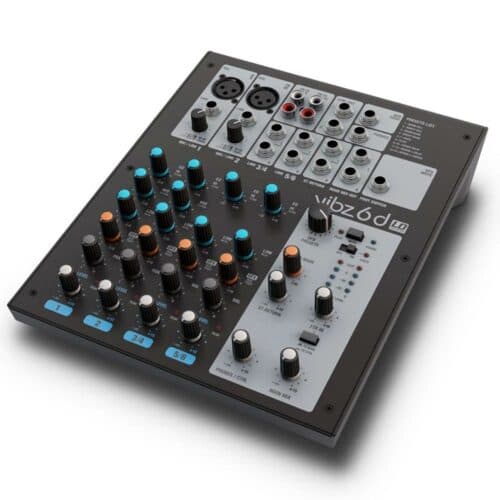

LD Systems VIBZ 6D – 6 Channel Mixing Console with DFX
The LD Systems VIBZ 6D is a versatile 6-channel mixer with 16 digital effects. It offers 2x microphone channels with 3-band EQ. 2x mono-compatible stereo line channels are also available with a 2-band EQ.
Features
- Compact 6-channel mixer
- 2 high quality and low-noise microphone pre-amps
- On board digital FX with 16 presets
- AUX output for FX or fold-back applications
- External power supply
- German design
Spec
Product type: Mixers
Type: Live
Channels: 6
Mono Channels:
Mono Mic and Line Input Channels: 2
Mono Mic input connectors: 6.3 mm TRS, XLR
Mono Mic Input Type: Electronically balanced
Mono Mic Input Frequency Range: 10 Hz
Amplification Range mono Mic Input: 0 – 50 dB
Mono Mic Input Input THD-N: 0.0058%
Mono Mic Input Impedance: 4k Ohm(s)
Mono Line Input Type: Electronically balanced
Mono Line Input Frequency Range: 10 Hz
Amplification Range mono Line Input: 0 – 50 dB
Mono Line Input Input THD-N: 0.0045 %
Mono Line Input Impedance: 21k Ohm(s)
Mono Line Input S/N Ratio: 116 dB
Mono Channel Equalizer High: +/- 15 dB @ 12000 Hz
Mono Channel Equalizer Low: +/- 15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels: 3-band EQ (High, Mid, Low), AUX (DFX) Post, Channel Volume, Gain, pan
Phantom power: 48 V DC switchable
Stereo Channels:
Stereo Line Input Channels: 2
Stereo Line Input Connectors: 6.3 mm TS
Stereo Line Input Type: unbalanced
Stereo Line Input Frequency Range: 10 – 54000 Hz
Stereo Line Input Input THD-N: 0.0045 %
Stereo Line Input Impedance: 3,7k Ohm(s)
Stereo Line Input S/N Ratio: 116 dB
Stereo channel equalizer treble: +/- 15 dB @ 12000 Hz
Stereo channel equalizer bass: +/- 15 dB @ 80 Hz
Controls Stereo Line Input Channels: 2-band EQ (High,Low), AUX (DFX) Post, Balance, Channel Volume

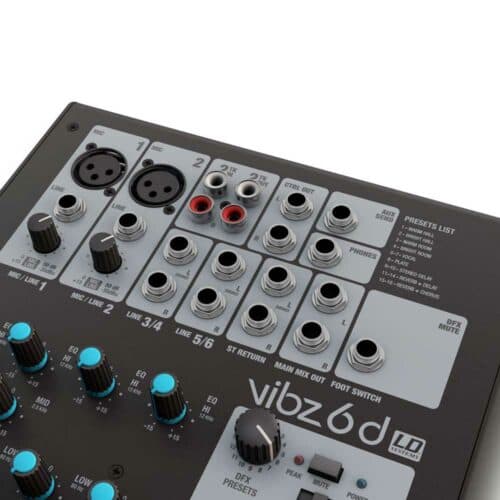

Main Section: AUX / Effects Send Channels: 1
AUX / Effects Send Connectors: 6.3 mm stereo jack unbalanced
Stereo AUX Return Channels: 1 x stereo
Stereo AUX Return Connectors: 2 x 6.3 mm TRS
Stereo Tape Out Channel: 1 x stereo
Stereo Tape Out Connectors: 2 x RCA (Cinch)
Stereo Tape-In Channel: 1 x stereo
Stereo Tape-In Connectors: 2 x RCA (Cinch)
Unbalanced stereo Main Outputs: 1
Unbalanced stereo Main Output Connections: 6.3 mm TRS
Unbalanced Stereo Main Out Impedance: 120 Ohm(s)
Max. Unbalanced Stereo Main Out Level: +20 dBu
Stereo Control Room Out: 1
Stereo Control Room Out Connectors: 6.3 mm stereo jack unbalanced
Headphones output: 1
Headphones outputs: 6.3 mm TRS
Digital Effects Processor: Yes, 24-bit AD/DA Resolution
Number of Presets: 16
Footswitch Connector DFX Mute: 6.3 mm TRS
Main section controls: 2-track Assignment (Main, Contr. Room), 2-track In Volume, DFX Mute Schalter, DFX Presets, DFX To Main Volume, Master Volume, Phantom Power, Phones / Control Room Volume, Stereo Return Volume
Indicators: 4-segment Level Meter, Channel Peak, DFX Peak / Mute, Phantom Power, Power

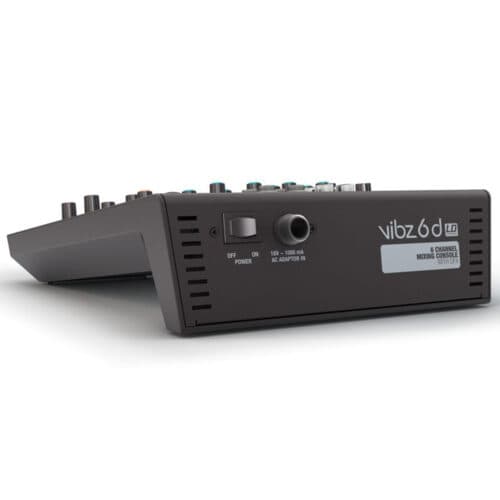

Operating voltage: 18V DC – 1 A, External PSU, 230 V

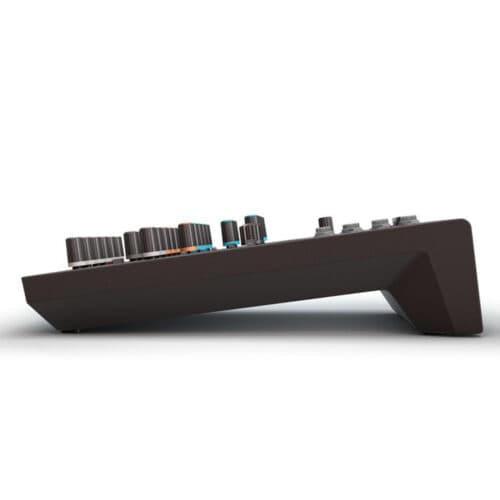

Width: 209 mm
Height: 68 mm
Depth: 260 mm
Weight: 1.45 kg
