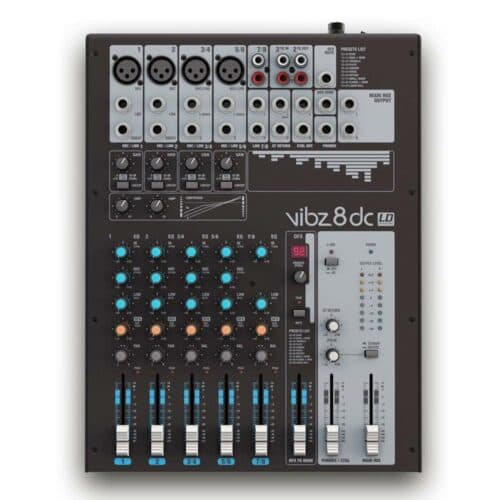

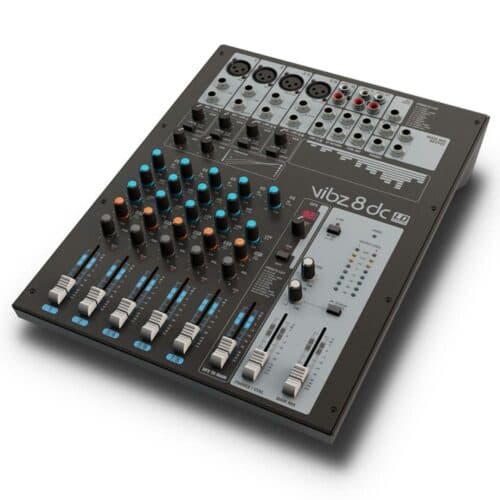

LD Systems VIBZ 8DC – 8 Channel Mixing Console with DFX and Compressor
LD Systems VIBZ 6D – 6 Channel Mixing Console with DFX
The LD Systems VIBZ 6D is a versatile 6-channel mixer with 16 digital effects. It offers 2x microphone channels with 3-band EQ. 2x mono-compatible stereo line channels are also available with a 2-band EQ.
The master section of the VIBZ 6D offers adjustable monitor outputs, a headphone jack and 16 digital effects preset, which are also foot-switchable. The mixer also has inputs and outputs for recording and playback devices, is extremely easy to use and offers a warm differentiated sound.
A footswitch for the effects section and an adapter for mounting the VIBZ 6D on microphone stands are also available as accessories.
Main Section Controls
The main section of the VIBZ 6D offers; 2-track Assignment (Main, Contr. Room), 2-track In Volume, DFX Mute Schalter, DFX Presets, DFX To Main Volume, Master Volume, Phantom Power, Phones / Control Room Volume, Stereo Return Volume.
Mono Channel Controls the VIBZ 6D offers is a; 3-band EQ (High, Mid, Low), AUX (DFX) Post, Channel Volume, Gain, pan
Stereo Channel Controls the VIBZ 6D offers is; 2-band EQ (High, Low), AUX (DFX) Post, Balance, Channel Volume
Versatile Mixer
In conclusion, the VIBZ 6D is a compact 6 channel mixer that is perfectly suited for; entertainers, small bands, home recording and installations. It provides 2x balanced microphone inputs with high-quality preamps and phantom power. Furthermore, a 3-band EQ with +/-15 dB adjustment scope is available with 2x stereo line inputs with 2-band EQ (which are mono-compatible, and an effects loop).
Also available is the LD Systems VIBZ 12DC – 12 Channel Mixing Console with DFX and Compressor.
Features
- Professional 8-channel mixer
- 4 high quality and low-noise microphone pre-amps
- Mono compatible stereo channels
- Integrated compressor
- 3-Band parametric EQ
- On-board digital FX with 100 presets
- AUX output for FX or fold-back applications
- External power supply
- German design
Spec
Product type: Mixers
Type: Live
Channels: 8
Mono Channels:

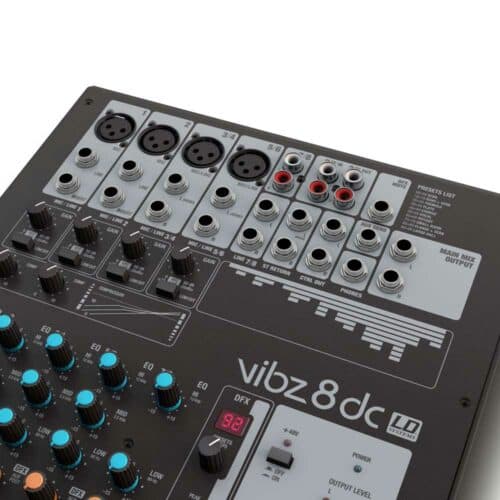

Mono Mic and Line Input Channels: 4
Mono Mic input connectors: 6.3 mm TRS, XLR
Channel Inserts: 2
Channel Insert Connectors: 6.3 mm TRS
Mono Mic Input Type: Electronically balanced
Mono Mic Input Frequency Range: 10 – 45000 Hz
Amplification Range mono Mic Input: 0 – 50 dB
Mono Mic Input Input THD-N: 0.0058%
Mono Mic Input Impedance: 4k Ohm(s)
Mono Mic Input S/N Ratio: 113 dB
Mono Line Input Type: Electronically balanced
Mono Line Input Frequency Range: 10 – 45000 Hz
Amplification Range mono Line Input: 0 – 50 dB
Mono Line Input Input THD-N: 0.0045 %
Mono Line Input Impedance: 21k Ohm(s)
Mono Line Input S/N Ratio: 113 dB
Mono Channel Equalizer High: +/- 15 dB @ 12000 Hz
Mono Channel Equalizer Mid: +/- 15 dB @ 2500 Hz
Mono Channel Equalizer Low: +/- 15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels: 3-band EQ (High, Mid, Low), AUX (DFX) Post, Channel Volume, Compressor (channel 1+2), Gain, Low Cut (75 Hz), pan
Phantom power: 48 V DC switchable
Stereo Channels:
Stereo Line Input Channels: 3
Stereo Line Input Connectors: 6.3 mm TRS
Stereo Line Input Type: unbalanced
Stereo Line Input Frequency Range: 10 – 45000 Hz
Amplification Range stereo Line Input: 0 – 50 dB
Stereo Line Input Input THD-N: 0.0045 %
Stereo Line Input Impedance: 3,7k Ohm(s)
Stereo Line Input S/N Ratio: 116 dB
Stereo channel equalizer treble: +/- 15 dB @ 12000 Hz
Stereo channel equalizer mids: +/- 15 dB @ 2500 Hz
Stereo channel equalizer bass: +/- 15 dB @ 80 Hz
Controls Stereo Line Input Channels: 2-band EQ (High,Low), 3-band EQ (High, Mid, Low), AUX (DFX) Post, Balance, Channel Volume, Gain, Low Cut
Main Section:
AUX / Effects Send Channels: 1
AUX / Effects Send Connectors: 6.3 mm stereo jack unbalanced
Stereo AUX Return Channels: 1 x stereo
Stereo AUX Return Connectors: 2 x 6.3 mm TRS
Stereo Tape Out Channel: 1 x stereo
Stereo Tape Out Connectors: 2 x RCA (Cinch)
Stereo Tape-In Channel: 1 x stereo
Stereo Tape-In Connectors: 2 x RCA (Cinch)
Unbalanced stereo Main Outputs: 1
Unbalanced stereo Main Output Connections: 6.3 mm TRS
Unbalanced Stereo Main Out Impedance: 120 Ohm(s)
Max. Unbalanced Stereo Main Out Level: 20 dBu
Stereo Control Room Out: 1
Stereo Control Room Out Connectors: 6.3 mm TRS
Headphones output: 1
Headphones outputs: 6.3 mm TRS
Digital Effects Processor: Yes, 24-bit AD/DA Resolution
Number of Presets: 100
Footswitch Connector DFX Mute: 6.3 mm TRS

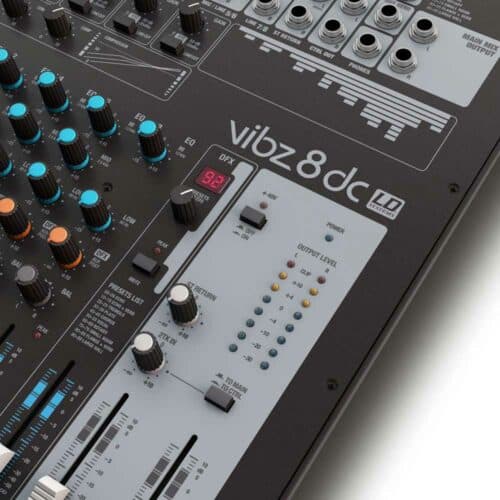

Main section controls: DFX Mute Schalter, DFX Presets, DFX To Main Volume, Master Volume, Phantom Power, Phones / Control Room Volume, Stereo Return Volume
Indicators: 8-segment Level Meter, Channel Peak, DFX Peak / Mute, Phantom Power, Power

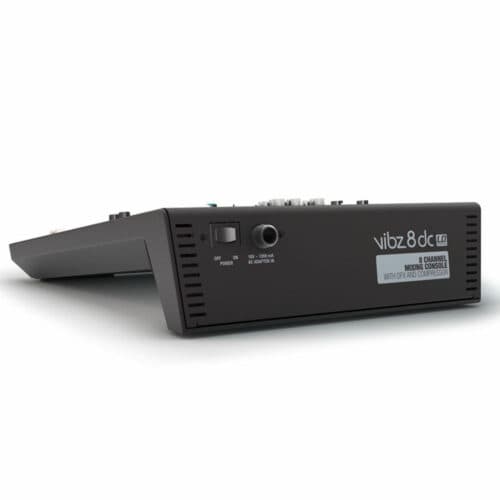

Operating voltage: 18V DC – 1 A, External PSU, 230 V
Width: 265 mm
Height: 78 mm
Depth: 352 mm
Weight: 2.3 kg
