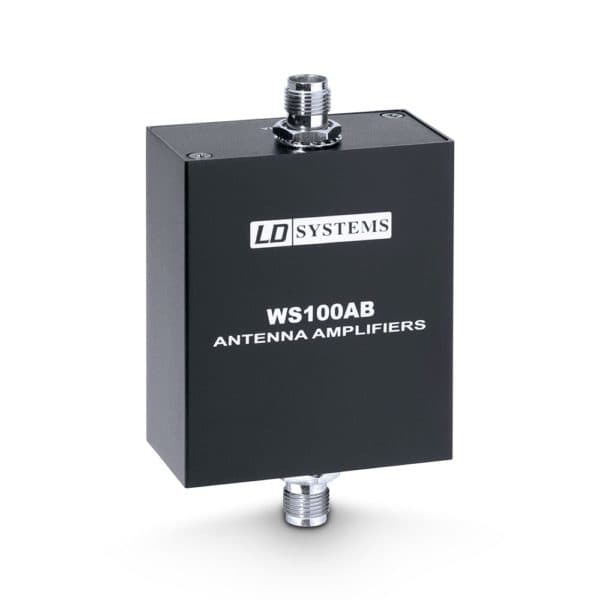

LD Systems WS100AB Active Antenna Booster



LD Systems WS100AB

The LD Systems WS100AB is a compact signal booster designed for use with wireless microphone antenna setups. The booster adds 13dB of gain to your signal and is connected between your antenna and the receiver. The active booster is powered from the receiver, and is fitted with TNC connectors for a secure connection. Antenna boosters are essential for systems with long runs of coaxial cable, the longer the cable the bigger the signal loss, and as a result microphone performance diminishes. The WS100AB boosts your signal level so that it is at optimal levels when it reaches the receiver.

Features

• Active antenna booster
• +13dB gain
• Supports 500MHz to 900MHz signals

Spec

Type: Antenna Amplifier

Frequency band: 500 – 900 MHz

Frequency bandwidth: 400 MHz

Signal gain: 13 dB

Antenna input connection: TNC

Antenna output connection: TNC

Antenna input impedance: 50 Ohm(s)

Antenna output impedance: 50 Ohm(s)

Power consumption: 9 V DC V

Dimensions: 65 x 75 x 35 mm

Weight: 0,276 kg

Other features: Power supply via antenna output connector
