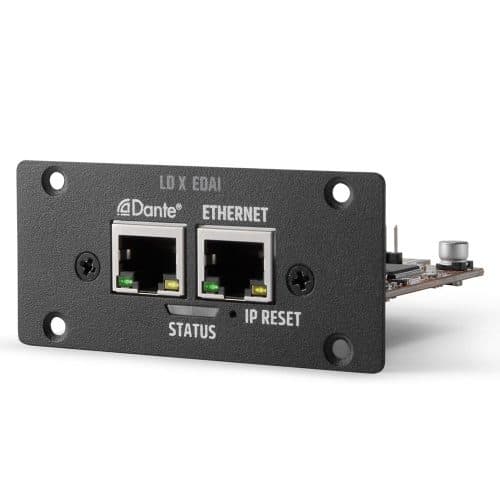

LD Systems X-EDAI Ethernet & Dante Expansion Card for IPA

Name: LD Systems X-EDAI Ethernet & Dante Expansion Card for IPA
Brand: Sonic Sound & Lighting
SKU: SKU_1700007495058_211
Price: 699.0 AUD
Availability: InStock

$699.00

Tax included.

Compare

Ask a question

Size guide

Share

NOTICE all heavy and bulky items or shipments to regional or remote Australia are subject to additional freight costs.

Stock availability may be limited please contact us to confirm stock holding.

FOUND A BETTER PRICE ? ASK US ABOUT PRICE MATCHING TODAY

LD Systems extends the remote control options of its IPA DSP installation power amplifiers. It does so with the X-ECI Ethernet Control interface card. In conjunction with LD Systems QUESTRA® software, the interface card provides flexible and effective configuration and control. It’s great for fixed audio installations of various sizes. Specifically, hotels, restaurants, shopping centres, sports facilities, office environments and more.

Ethernet Control Interface

The X-ECI Ethernet Control interface card features a Cat5-based 100 Mbps Ethernet connection. In fact, it’s compatible with all common IT network components. Specifically, a status LED and an IP reset button for quick and easy troubleshooting. Thanks to the asymmetrical pin arrangement of the card, accidental incorrect installation of the interface card in the IPA housing is impossible.

QUESTRA Software

Additionally, the X-ECI via the QUESTRA® software, system integrators can access all DSP settings of the IPA installation power amplifier. Furthermore, the possibilities range from signal processing at the input (preamp, compressor, etc.), signal flow in the matrix mixer, output processing (EQ, dynamics, delay, polarity, mute) to priority settings and preset management.

In addition, customised control panels can be created in the QUESTRA® software. It can be used by end customers on smartphones, tablets or computers (via the QUESTRA® Panels app) for convenient control of their system.

X-ECI Key Highlights:

Ethernet expansion card for IPA series amplifiers
Enable ethernet control of onboard DSP (via Questra® software)
Configure parameters, save prests, and create custom user interfaces

ante.

Features

Ethernet expansion card for IPA series amplifiers
Enable ethernet control of onboard DSP (via Questra® software)
Configure parameters, save prests, and create custom user interfaces
Supports real time control of the DSP via Questra®’s UI Control
Admin protection to lock the setting in place, including disabling analog controls

Spec

Product Type: Ethernet Control Expansion Card
Compatible Models: IPA412T / IPA424T
Control Software: Questra (windows / Android / iOS)
Connections: 1x RJ45
Transmission Protocol: TCP/IP, UDP
Dimesnions: 82.5 x 36.5 x 76.3mm
Weight: 0.5kg
