LD Systems X223 Active Crossover 2-Way Stereo / 3-Way Mono



LD Systems X223

The LD Systems X223 is a stereo 2 way / mono 3 way crossover in standard 19"/1U rack format. Its rugged construction, high quality and robust knobs as well as the integrated power unit are rarities in this price range. It provides a mono sub output, an adjustable crossover frequency for each channel, adjustable LF/HF and input gains, phase reverse controls, switchable 40 Hz High-Pass filters and symmetrical XLR In- and Outputs. With the LD Systems X223 you get a crossover fulfilling the professional standards and offering great quality and sound characteristics.

Features

• Premium active crossover with 2 way stereo / 3-way mono
• Crossover frequency between 45 and 960 Hz (450 and 9600 Hz with x10 switch)
• Crossover frequency between
• Switchable 40Hz High-Pass filters
• Input & output gain control
• Improves overall PA performance and sound quality

Spec

Product number: LDX223

Product type: Signal Processors

Type: 2-way stereo/3-way mono

Frequency response: 20 – 20,000Hz

Dynamic range: 106dB

Signal-to-noise ratio: > 93dB

THD: < 0.004 %

Crosstalk: < – 80 (20 – 20.000 Hz)dB

Max. input level: +21 (balanced or unbalanced)dBu

Max. output level: +21 (balanced or unbalanced)dBu

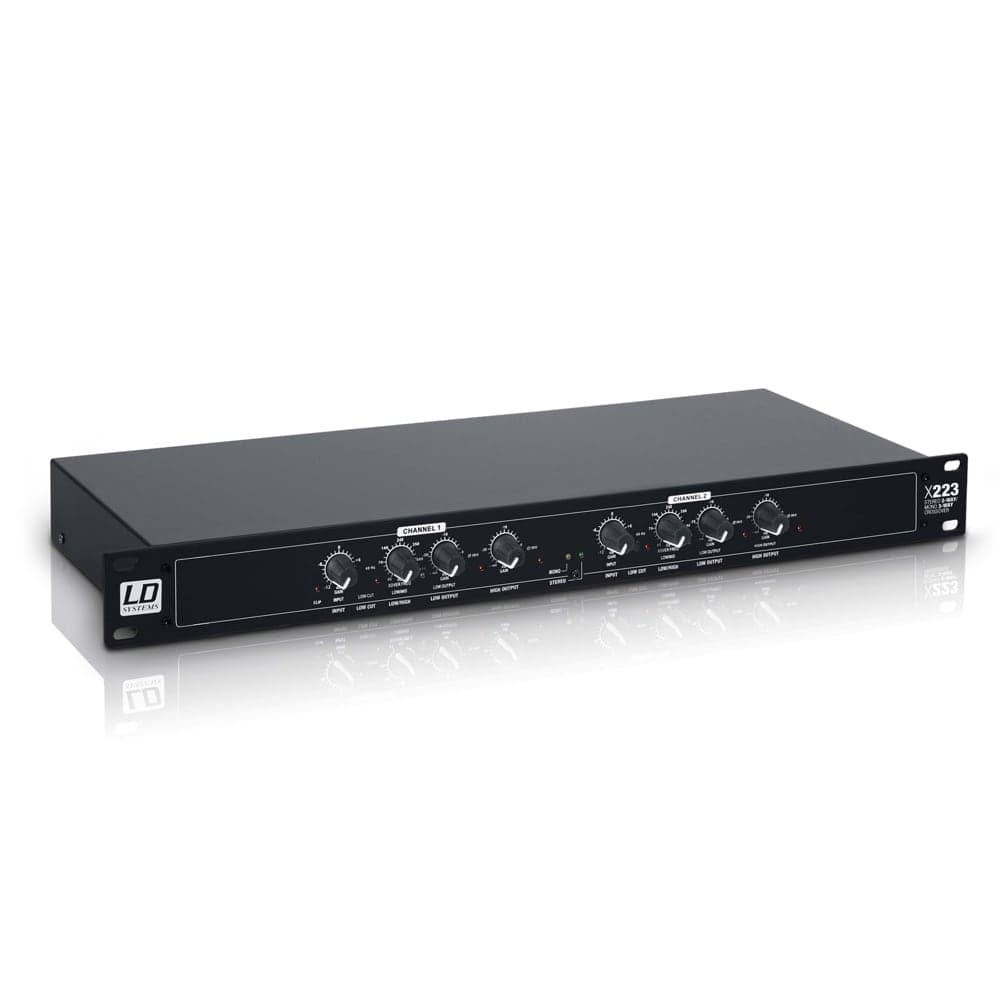

Controls: 2 x high gain, LF sum, 2 x input gain, 4 x inv switch, Mono/stereo mode, 2 x crossover low/mid, 2x frequency switch x1/x10, 2 x low gain, 2 x crossover frequency low/high, 2 x highpass (40 Hz)

Indicators: 2 x crossover x 10, mono, 2 x clip, 2 x highpass, stereo, 4 x inv.

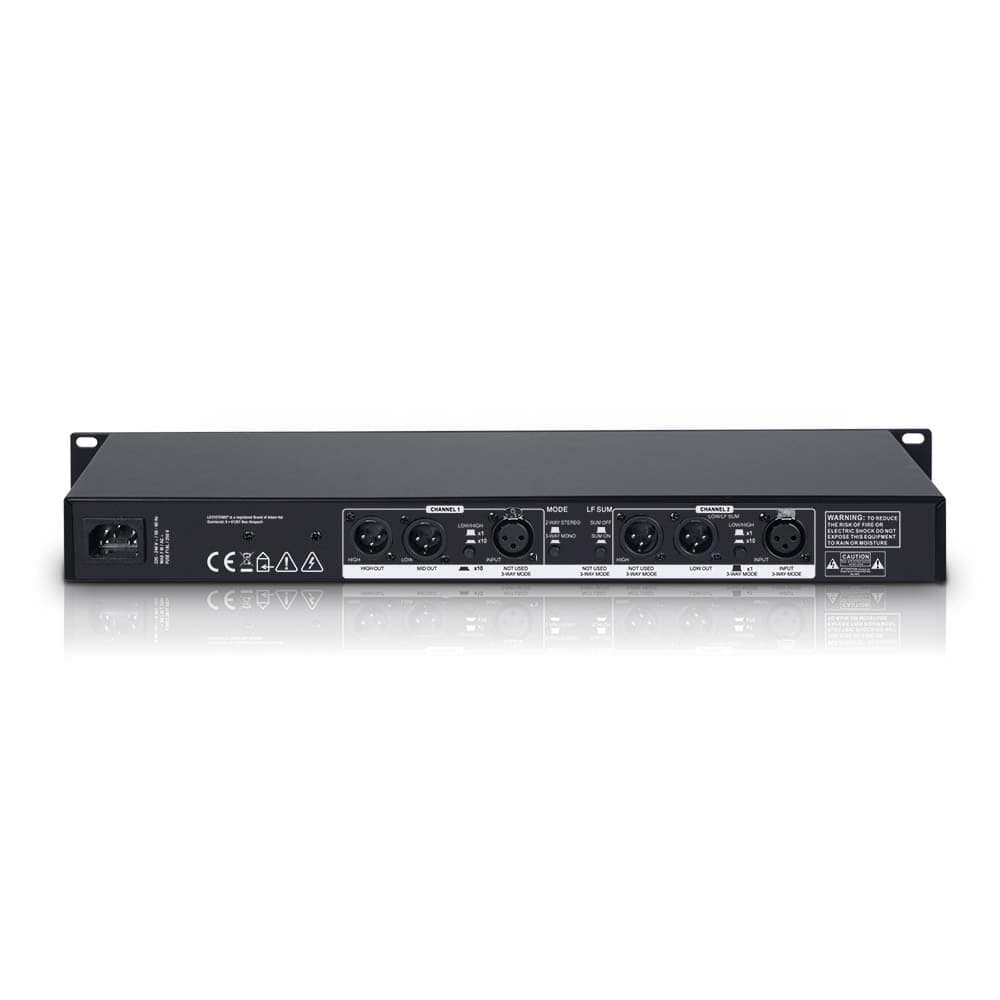

Inputs: 2 x XLR (line)

Line outputs: 4 x XLR (line)

Mains connector: IEC socket

Operating voltage: 220 V AC – 240 V AC

Dimensions: 482 x 44.5 x 153 mm

Weight: 2.6kg
