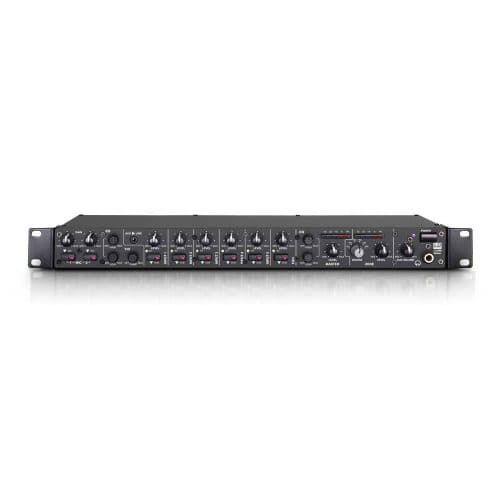

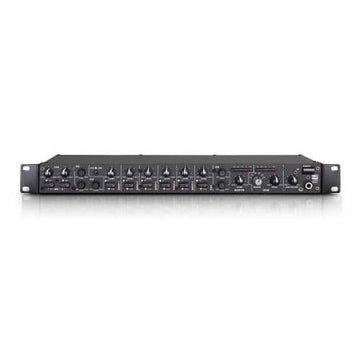

LD Systems ZONE 622 19 Inch 2 Zone Mixer 1U
The LD Systems ZONE 622 gives you 2-Zone, compact 1U zone mixer boasting 6 line, and 2 microphone channels. Each of which can be assigned either to a stereo or a mono master output.
The LD Systems ZONE 622 gives you 2-Zone, compact 1U zone mixer boasting 6 line, and 2 microphone channels. Each of which can be assigned either to a stereo or a mono master output. ZONE 622 gives you all the essential functions you’ll need including an input for an emergency announcement system with its own volume control; and a connection to the remote-controlled switching mute.
ZONE 622 is the perfect sound system solution for configuring separate zones in restaurants; clubs; hotels; fitness centers; and presentations. Featuring two balanced microphone channels with stereo jack inputs that also have controls fo Gain; Talkover volume; Talkover attenuation; 12V phantom power; and a shared 2-band EQ.
Line channels 1 and 2 can also be used to connect your unbalanced mics, and channel 6 has been designed specifically for balanced FOH signals. On top of that, the stereo input channels feature a cue button and volume control signal display. While channels 1-5 have an additional gain trimmer.

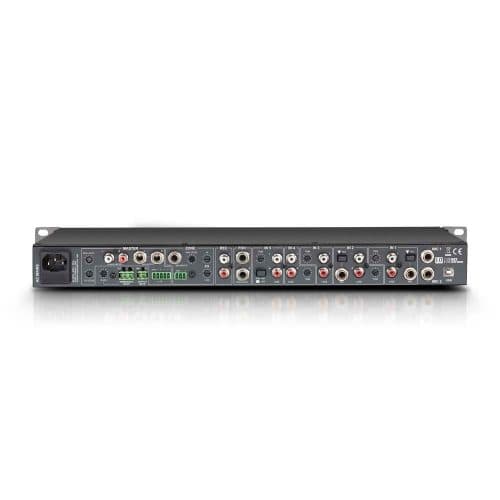

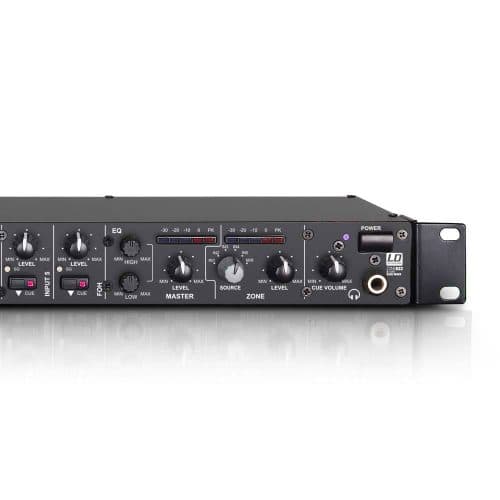

You’ll also find a 3.5mm mini-jack input as well as a USB port that can be used as a Stereo In or Out for recording. Allowing you to use ZONE 622 as an external audio interface. The stereo and mono output sections have their own meters; 2-band EQ; trimmer for adjusting your maximum output level; as well as electronically balanced jack plugs and terminal block connectors. Additionally, the stereo section features unbalanced RCA jacks, as well as an adjustable headphone jack for previewing.
Features
- 2-Zone Mixer
- 1U Rack Mountable
- 6 Line Channels
- 2 Mic Channels
Spec
Product type: Mixers
Type: Installations
Number of Zones: 2 (Master, Zone)
Type: stereo
Installation Height: 1 U
Total Input Channels: 8 (2x Mic, 2x Mic/Line, 3x Line, 1x FOH)
Frequency response: 20 – 40000 Hz
Microphone channels: 2 (with phantom power 12 V)
Microphone Channel Connections: 6.3 mm stereo jack (balanced)
Microphone channel controls: 1 x EQ Hi , 1 x EQ Low , 1 x Talk Over Damp , 1 x Talk Over Level , Gain , On / Off
Microphone Channels Display Elements: On-LED
Microphone Channels Input Impedance: 4 kOhm
Microphone Channels Input Sensitivity: 6.1 mV
Microphone Channels: THD 0.08%
Line / Microphone Channels: 2
Line / microphone input connectors: 2 x RCA , 3.5 mm stereo jack (input 1) , 6.3 mm stereo jack (balanced)
Line / microphone channel controls: Cue , level , mic/lline , Trim
Line / Microphone Display Elements: Cue-LED , Signa-LED
Line Channels: 3
Line input connectors: Input 3-4: 2 x RCA , Input 5: 2 x RCA + USB
Line Channel Controls: Cue , level , Trim
Line Channel Display Elements: Cue-LED , Signa-LED
Line Channel Input Impedance: 4 kOhm
Line Channels Input Sensitivity: 1.5 V
Line Channels: THD 0.03%
Input sensitivity AUX/Line 3 V
FOH Channels: 1
FOH Input Connections: 6.3 mm stereo jack (2 x balanced)
FOH Input Controls: Cue , level
FOH Input Display Elements: Cue-LED , Signa-LED
Line outputs: 3 (Master – Stereo, Zone – Mono, Rec – Stereo)
Output Connectors: Master 6.3 mm stereo jack (2 x balanced) , RCA (x2) , terminal block
Master Controls: EQ Hi , EQ Low , level , Max. Level
Master Display Elements: 5-Segment Level Meter
Master Output Levels: (balanced) 24 dBu , (unbalanced) 18 dBu
Zone Output Connections: 6.3 mm stereo jack (balanced) , terminal block
Zone Controls: EQ Hi , EQ Low , level , Max. Level , Source Input 1-5/Mix
Zone Display Elements 5-Segment Level Meter
Zone Output Levels 24 (balanced/ unbalanced) dBu
Output Connections Rec 2 x RCA
Headphones ouput 1
Headphone Out Port 6.3 mm TRS
Headphone Output Controls Cue Volume
Headphone Output Voltage (@ 32 Ohm) 1.25 V
Additional Inputs 2 (Emergency Input, Output Mute)
Connections Additional Inputs terminal block
Additional Input Controls Level Emergency Input
Additional Controls power switch
Additional Display Elements Power-LED
Operating voltage 220 – 250 V AC, 50 Hz
Mains connector IEC power connector
Power consumption 18 W
Fuse T 500 mAL / 250 V
Width 485 mm
Height 44 mm
Depth 179 mm
Weight 2,4 kg
Accessories (included) Power cord , terminal blocks
