LD Systems ZONE X 1208 D Hybrid Architecture DSP Matrix 12 IN / 8 OUT + DANTE
The LD Systems ZONE X 1208 gives you everything you need for complex installations with flexible routing options and automated processes. Boasting DSP Hybrid architecture, the ZONE X 1208 can adapt to your sound system for different circumstances. Simply choose one of the different DSP templates and then use the event scheduler to set up calendar-managed workflows with automated preset options.
With everything you need, the ZONE X 1208 has 13 balanced mic line inputs with low-noise microphone preamplifiers and switchable 48V phantom power. As well as 8 balanced line outputs available. There are also 8 GPI and GPO logic ports that you can use for automated processes and integrating third-party devices.

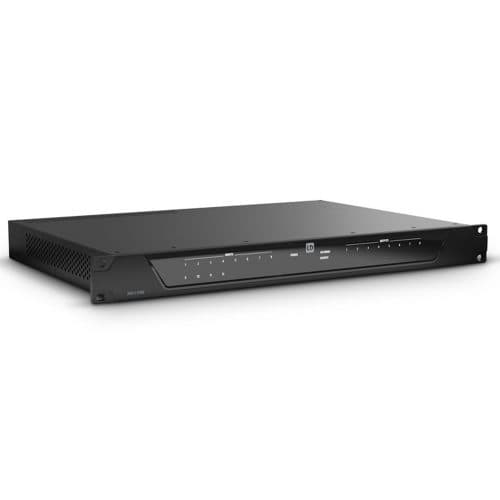

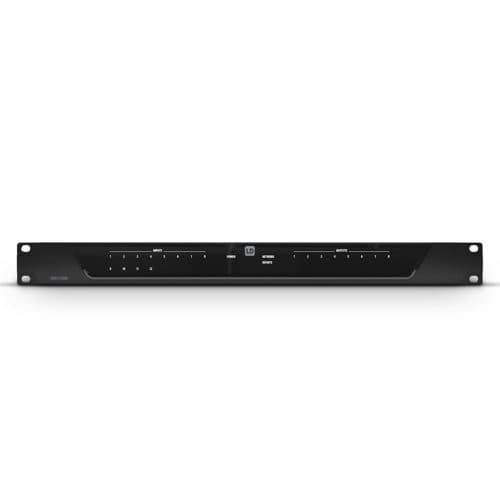

The front panel with only 1 RU looks very tidy. While the ZONE X 1208 is easy to set up and manage via Ethernet thanks to the Xilica Designer software. On top of that, there’s an additional REMOTE bus connection that means the X 1208 is already equipped for future remote panels and paging microphones.
It’s also possible to install an Ethernet + Dante card with 64 x 64 channels as an upgrade for audio over IP applications.
Above all, for routing and processing different mics and speaker groups, the Zone X 1208 is the perfect choice.
.
Features
- DSP processor with hybrid architecture that allows users to adapt to different installation requirements via templates
- 40-bit floating-point DSP engine with Analog Devices dual-core SHARC+ and ARM Cortex A5 processor
- New generation Linux operating system
- Premium microphone preamplifiers and high resolution 32 bit-AD/DA converters
- 12 balanced audio mic/line inputs with 48V phantom power selection per channel
- 8 balanced line outputs
- 8 GPI and 8 GPO logic ports
- REMOTE bus for integration of future remote panels and paging microphones from LD Systems
- Ethernet interface for remote control via the universal control software Xilica Designer; Ethernet + Dante card optionally available
- Integrated event scheduler
Spec

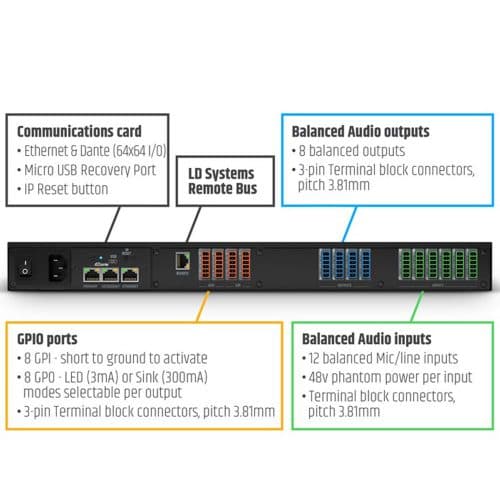

Audio inputs: 1 Remote Bus Audio input , 12 balanced Mic/line inputs
Audio output: 8 balanced line outputs
Logic inputs: 8 GPI – short to ground to activate
Logic outputs: 8 GPO – LED (3mA) or Sink (300mA)
Remote-Bus: Yes

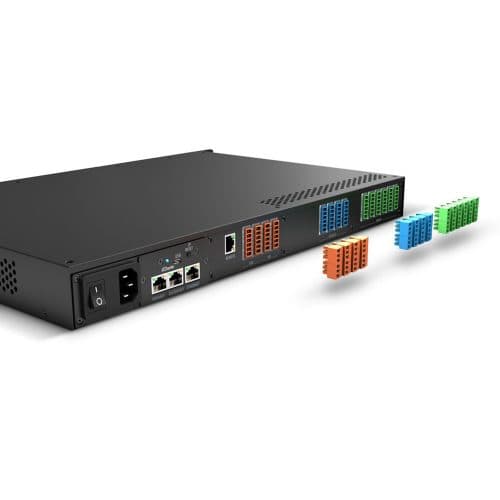

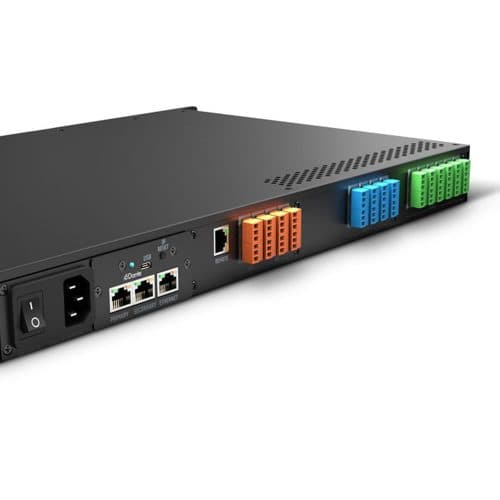

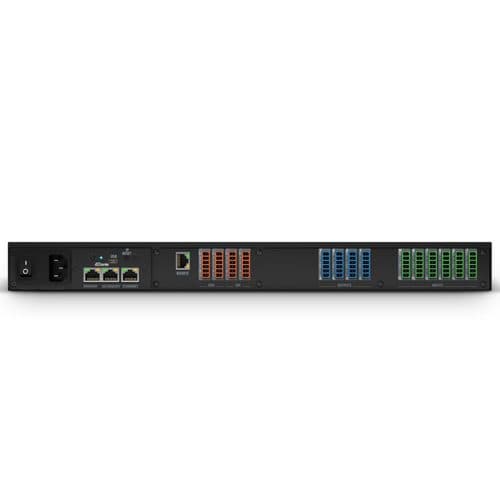

Connectors: 3-pin Terminal Block Pitch 3.81mm , Ethernet RJ45 , I/O Connectors , Remote IN RJ45 , Service Micro USB Type-B

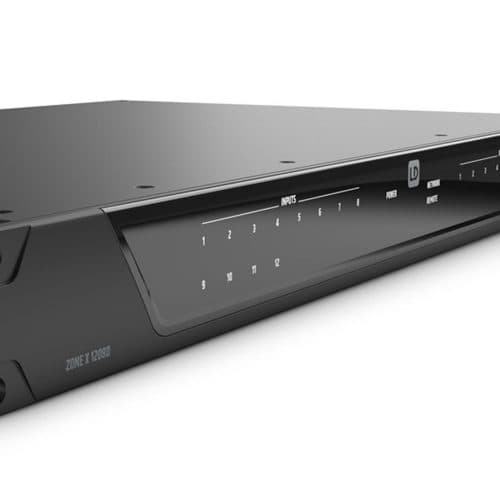

Indicators Inputs: 1 – 12 and outputs 1 – 8: signal indication white , Network , Power , Remote
Controls: Front panel no
Controls Element: Back Panel IP Reset , Power On/Off
Expansion Slot: Ethernet + Dante- (ZONEX1208D) , For Ethernet- (ZONEX1208)
Cooling: Convection , passive
Operating voltage: Wide Range SMPS
Mains connector: 3-pole IEC mains connection (mains socket)
Operating voltage: 90 – 240 V AC; 50/60 Hz
Input fuse (mains): T2,5 A L / 250 V
Inrush Current: Power OFF-ON: 21 A
Power Consumption: @ idle mode 23 W
Max. Power consumption: 60 W
Operating temperature: 0°C – 40°C; < 60% humidity
Width: 19“-Rack (483 mm)
Height: 1 RU (44.5 mm)
Depth: 315 mm (incl. terminal block connectors)
Weight: 4 kg
