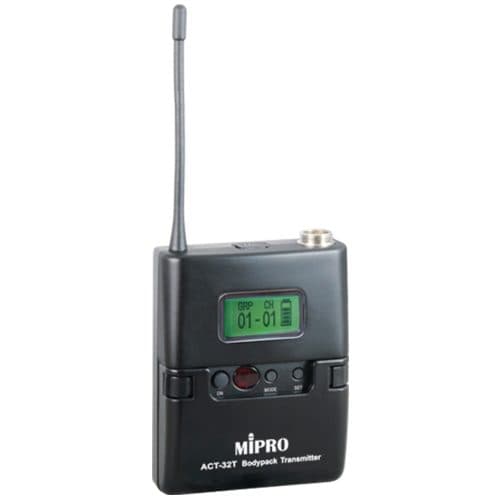

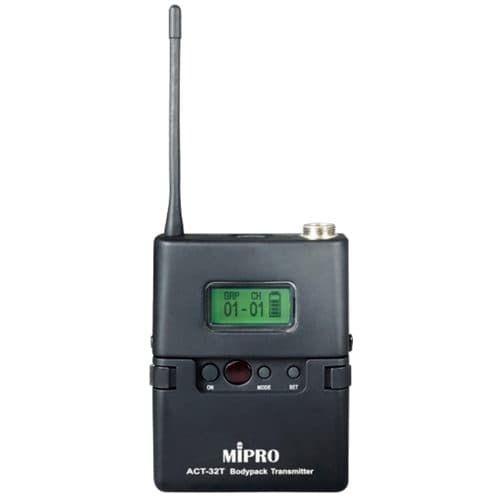

MIPRO ACT32T-5 UHF Wireless Transmitter – 5NB Band

ACT32T-5 comes as a compact and lightweight rugged plastic bodypack that is easy to wear. It transmits a signal from your microphone to your receiver. It features An LCD on the panel that displays the operating information and is powered by two AA alkaline batteries.

MIPRO ACT32T-5 UHF Wireless Bodypack Transmitter – 5NB Band

The MIPRO ACT32T-5 comes in a compact and lightweight rugged plastic housing that is easy to wear. On top of the unit, it is equipped with an antenna, mute button and mini XLR connector.

Easy To Use

The Mini XLR audio input connector accepts either a screw-lock or a TA4F quick-lock plug. Also, a remote-control mute jack is for easy activation of the mute function.

ACT32T-5’s LCD

Furthermore, ACT32T-5 features an LCD on the panel that displays the working channel, battery status and operating information.

Battery Use

Powered by two AA alkaline batteries, the innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation.

Suitable For Line Inputs

Additionally, ACT32T-5 works for High/low impedance for microphone or guitar/line inputs.

Volume Controls

Afterwards, use five selectable gain settings with Auto Limiter to prevent distortion.

Screw Lock

The Mini XLR audio input connector accepts either a screw-lock or a TA4F quick-lock plug.

ACT32T-5 Key Highlights:

• 5 switchable gain levels.
• Mute button and remote-control jack allow quick setting of MUTE function
• An LCD on the panel displays the operating information.

Features

• An LCD on the panel displays the operating information.
• Powered by two AA alkaline batteries.
• In addition to the power switch and the mute button, functions such as input sensitivity, power output, and mute modes are also programmable.
• The world’s first ACT™ function provides precise and rapid frequency sync to the receiver.
• 5 switchable gain levels.
• Mute button and remote-control jack allow quick setting of MUTE function.
• Innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation.

Spec

Frequency Range: UHF 480 – 934 MHz (country dependent)
Bandwidth: 24 MHz
Display: Backlit LCD
Mic. Capsule Modules: Work with all MIPRO’s lavalier and headworn mics
Input Connector: MIPRO 4-Pin Mini XLR
AF Sensitivity: Preset at 0 dB (equal to capsule sensitivity), 5 switchable levels: -12 dB to 12 dB
RF Power Output: 10 mW / 50 mW switchable (country dependent)
Spurious Emission: < 4 nW
Battery: Two AA alkaline
Dimensions: 63 × 82 × 22 mm (W × H × D)
Weight: Approx. 86 g
Note: Refer to the actual product in the event of product discrepancy
