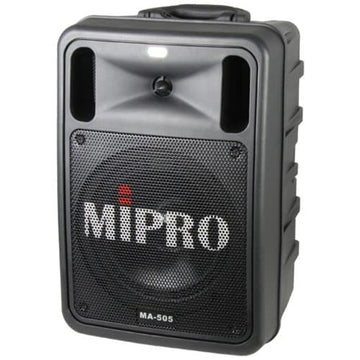

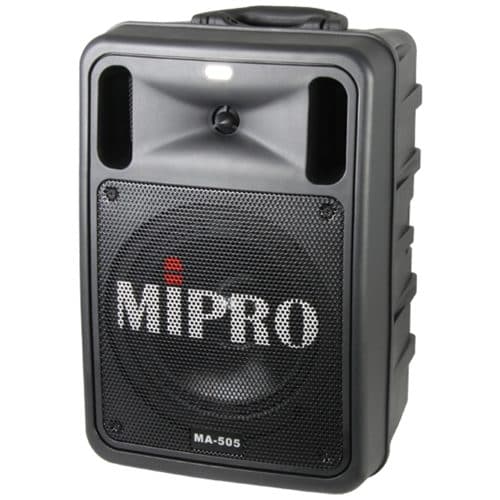

MIPRO MA505 Portable Wireless PA System Speaker

MIPRO MA505 has a one-piece moulded cabinet with a high-efficiency amplifier system. Also, the 2-Way Speakers have 145 watts of power and make a crystal-clear sound.

MIPRO MA505 Portable Wireless PA System Speaker

MIPRO MA505 has a one-piece moulded cabinet with a high-efficiency amplifier system. Above all, the 2-Way Speakers have 145 watts of power and make a crystal-clear sound.

Easy to Transport – MA505

MA505 has a robust, rugged enclosure. Also, it has a lightweight, compact & portable structure making it easy to transport.

Bluetooth Connectivity

The MA505 has in-built Bluetooth connectivity which enables you to play Mp3 files wirelessly. Furthermore, it has a handy blue light to signal its Bluetooth functions.

Built-In Digital Player & Recorder

You can easily play Mp3 files via USB / SD Card. You can also record audio to the USB and SD card.

Up to 4 Wireless Mics

MA505 can scan & ACT sync channel set-up. Also, it’s the industry’s only wireless interlinking transmitter option to interlink multiple MA-505 portables wirelessly to extend transmission range and expand coverage.

Lithium Rechargeable Battery

Lastly, it has a built-in AC switching power supply and rechargeable battery. Specifically, it has 8 hours of standby time per 4-hour fast charge.

MA505 Key Highlights:

• Maximum SPL: 105 dB
• Loudspeakers: 1″ Tweeter & 8″ Woofer
• Frequency Range: 70 Hz – 14 kHz

Features

• One-piece moulded cabinet with high efficiency amplifier system to drive the two-way speaker system for powerful and clear sound.
• Robust, rugged enclosure, and lightweight makes it easy for hand carry. Also can be installed on a tripod stand.
• VOP (voice-over-priority) and TONE control.

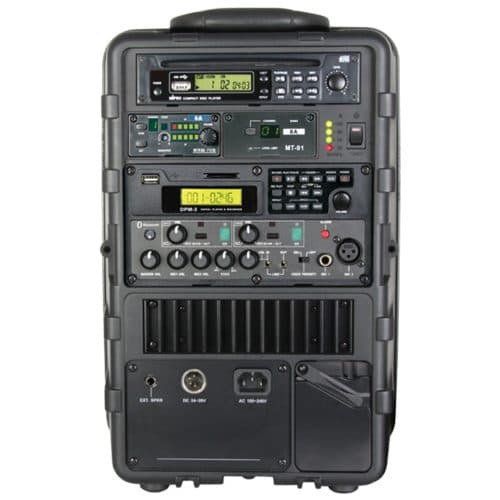

• Mixed input amplification of wired mic, wireless mic, and audio players.
• Extension speaker socket can be used with MA-505EXP passive speaker.
• Industry’s only wireless interlinking transmitter option to interlink multiple MA-505 portables wirelessly to extend transmission range and expand coverage.
• Industry’s first built-in active dual antennas for long distance and stable receiving.
• Built-in AC switching power supply and rechargeable battery.
• Storage compartment for AC power cable.

Spec

Max. SPL: 105 dB
Drivers: 1″ Tweeter & 8″ Woofer
Frequency Range: 70 Hz – 14 kHz
Audio Inputs MIC IN: 1 × XLR, 1 × 1/4″ (6.3 mm)
LINE IN: 1 × 1/8″ (3.5 mm)
Audio Output LINE OUT: 1 × 1/8″ (3.5 mm)
Amplifier: Class D
Output Power: 145 W RMS, 248 W peak
Receiver: Modules Up to 4
Audio Players: Bluetooth, CD/USB/SD player & recorder (optional)
Transmitter Modules: MTM-91, MTM-24, MTM-58 (optional)
Extension Speaker: 1 × 1/4″ (6.3 mm)
Other Functions: VOP, TONE control, siren sound effect
Power Supply: AC 100 – 240 V or DC 24 – 28 V
Battery: Built-in Li-ion battery
Battery Indicator: 4-segment indicators (25/50/75/100%)
Standby Time: Up to 8 hours
Colour: Black
Dimensions: 275 × 406 × 225 mm (W × H × D)
Weight: Approx. 8.0 kg
Optional Accessories: SC-505 carry bag, MS-70 tripod stand, MM-Series microphones
Patents and Approvals: Patented. Telecom and safety regulations approved
Note: Refer to the actual product in the event of product description discrepancy
