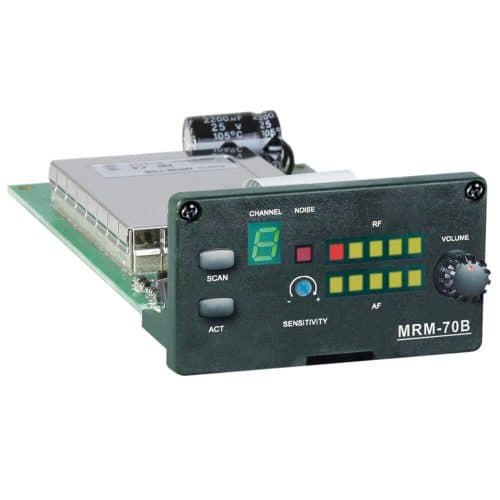

MIPRO MRM70B-5 Wireless Mic Receiver Module – 5NB Band

The easy to install and use plug-and-play Mipro MRM70B-5 receiver modules is designed to fit Mipro wireless portable PA systems for wireless microphone applications. Suit ACT32-5 series transmitters.

Features

• Preset 16 non-interference channels.
• It has the original “SCAN”, “ACT” function, noise indicator light and receiving sensitivity adjustment button.
• With digital LED channel indicators, RF and AF signal strength meters.
• Adopt CPU to control the automatic selection method, eliminate staccato, stable reception and long distance.
• Modular design, easy assembly and disassembly, stable performance.

Spec

Product Name: UHF single channel receiving module
Frequency Band: UHF 480 ~ 934MHz
Bandwidth: 24 MHz
Preset Frequency: 16 preset channels
Frequency Setting: You can set the channel to be used by yourself or automatically scan to display the channel without interference. Press the ACT function key to automatically lock the transmitter channel and synchronize with the receiver
Panel Design: Digital LED display channel, LED meter display RF / AF signal strength, sensitivity control and LED noise indicator
Receiving Method: MCU controls automatic selection and reception
Sensitivity: When inputting 10 dBμV, S/N > 80 dB
Maximum S/N Ratio: > 100 dBA
Harmonic Distortion (THD): < 0.5% @ 1kHz
Frequency Response: 50Hz ~ 18kHz
AF Output: 610 mV RMS
Power Supply: DC 12 ~ 15V
