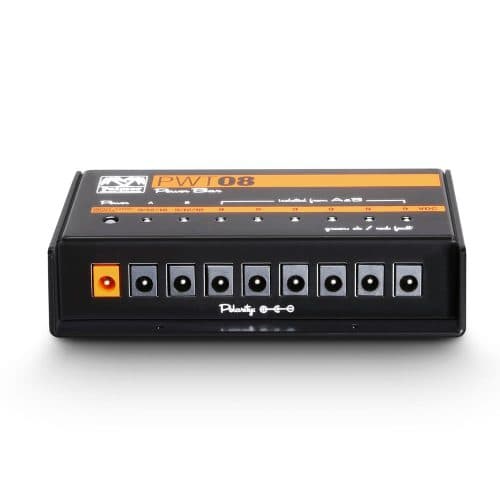

Palmer Audio PWT 08 Universal Pedalboard Power Supply – 8 Outputs
The Palmer Audio PWT 08 Universal 9V Pedalboard is a Power Supply with 8 Outputs. It offers a huge 2,000 mA output capacity with 8x standard negative outlets.
Palmer Audio PWT 08 Universal Pedalboard Power Supply
The Palmer Audio PWT 08 Universal 9V Pedalboard is a Power Supply with 8 Outputs. It offers a huge 2,000 mA output capacity with 8x standard negative outlets.
Two of the outlets (A & B) are switchable between 9, 12, and 18volts. You also have the option to connect the included Y cable for a combined single outlet for 21, 24, 30, or 36 volts maximum output.
In order to deliver constant voltage, the PWT 08 features a short circuit and overload protection. Additionally, the two switchable outputs are completely isolated from each other, as well as the rest of the remaining outputs. Thus thoroughly protecting all available 8 outputs.
The PWT 08 sports a power-on LED, bi-colour outlet status LEDs, and also comes with a set of DC cables and dedicated mains adapter.
Above all, the benefit of introducing the PWT 08 into your pedalboard is that you can run two hungry pedals; as well as 9-volt effects that can run on higher DC current for even more dynamics and headroom.
Key features:
- Fully regulated universal pedalboard power supply
- 8 standard center negative outlets with 2,000 mA output total
- Two 9, 12 or 18 V switchable outputs
Features
- Fully regulated universal pedalboard power supply
- 8 standard center negative outlets with 2,000 mA output total
- Two 9, 12 or 18 V switchable outputs
- Short circuit and overload protection for each outlet
- Bright power and outlet status LED indicators
- DC cables, Y cable and mains adapter included
Spec
Width: 140 mm
Depth: 80 mm
Height: 32 mm
Weight: 0,3 kg
Features: 8 x DC cable, 1 x merge cable
Product Type: Power Supplies
Mains connector: Plug-in power supply
Input voltage: 100 – 250 V
Outputs: 8
Output connectors: 2.1 x 5.5 mm
Output voltage: 12 V, 18 V, 9 V
Max. output current: 2000 mA A
Isolated outputs: Yes
Polarity: Center negative
Cord length: 25 – 50 cm
Indicators: Fault, Power
Controls: Output voltage selector
