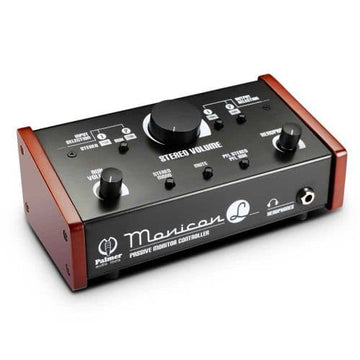

Palmer Monicon L Passive Monitor Controller
The Palmer Monicon L gives you a precise, analog passive monitor controller. Connecting the Monicon L between your computer or audio interface and your active monitor speakers. The switch on the Monicon L is completely passive and distortion free. While the LED displays and built-in headphone amplifier are both powered via the included power supply.
Features
- All-passive volume control circuit
- Stereo and AUX inputs
- Dual outputs
- Additional mono output
- Balanced and unbalanced connection
- Integrated high quality headphone amplifier
- Mono, mute and PFL switches
- Stereo volume, AUX and headphone level controls
- Elegant design with solid wood side panels
- Built to last
Spec
Product type: Other Studio and Recording Equipment
Channels: 2
Inputs: 2
Input connectors: 3.5 mm TRS , RCA , XLR
Input type: balanced/unbalanced (depending on TS/TRS connection)
Max. input level: 20 dBu
Input impedance: (balanced) 10k Ohm(s) , (unbalanced) 5k Ohm(s)
Outputs: 3
Output connectors: XLR
Output type balanced/unbalanced (depending on TS/TRS connection)
Max. output level: 20 dBu
Output impedance: 600 Ohm(s)
Frequency response: 10 – 40000 Hz
Total Harmonic Distortion (THD): 0.001 %
Max. attenuation (Attenuator + Mute) 112 dB , (Attenuator) 85 dB
Controls: attenuation , input selector , mono , mute , output selector , PFL source
Cabinet material: sheet steel , wood
Cabinet surface: Powder coated
Width: 218 mm
Height: 77 mm
Depth: 100 mm
Weight: 1,14 kg
