Palmer MONICON XL Active Studio Monitor Controller
With the Monicon XL, you can configure your sound route different sources to different monitors, and even regulate the monitoring level. As well as so much more!

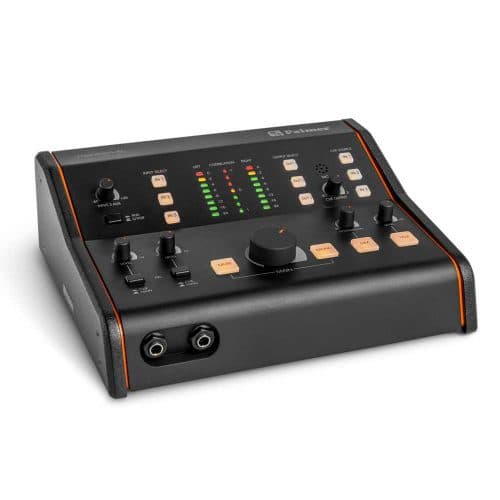

Palmer MONICON XL
If you’re in the studio, you need the clearest-sounding audio signal. Thanks to the Palmer Monicon XL, you can do just that. Configure the sound yourself, route different sources to different monitors, and even regulate the monitoring level. Allowing you to fine-tune everything to your working style. What’s more, the Monicon XL also allows you to communicate with the musicians when you need to. Giving you complete control!
Switching between sources and monitors is one of the most common tasks in any studio. The Monicon XL is an ergonomic console with two clearly structured control levels to make it the perfect solution. So simply select your audio sources and loudspeakers easily and at the touch of a button.
The Monicon XL also features 3 analog stereo inputs; one S/PDIF input; and outputs for 3 pairs of monitors. Each with its own volume controller for level calibration. Furthermore, a mono summed full-range output is available for connecting a mono monitor or a subwoofer. While its correlation meter displays the phase difference between a stereo signals left and right channels. Facilitating the quick and simple discovery of mono-compatibility errors in mixes. Its even customisable to your own workflow.
Finally, the fully analog audio circuit of the Monicon XL means you’ll have no latency or signal distortion. While additional features make the Monicon XL far more than just a monitor controller. These include 2 headphone outputs with volume controllers and main cue selector switches; a cue master controller; and an on/off talkback microphone with volume control. Not to mention a mute button and dim button, instantly reducing the monitor level by a pre-set amount.
Features
- Latency-free analogue signal path
- Customisable
- Level indicator L/R with +4, +10 and +18 dBu calibration options
- Correlation meter for verifying mono-compatibility
- Two headphone outputs with volume controllers and main cue selector switches
- Three analogue inputs, one S/PDIF input
- Three loudspeaker outputs with volume controllers for level calibration
- Mono summed output for subwoofer or mono monitor
- Main and cue direct outputs
Spec
Product type: Other Studio and Recording Equipment
Channels: 3 x switchable balanced outputs, 1 x CUE output, 1 x main output
Inputs: 3 + SPDIF
Input connectors: 3.5 mm TRS , 6.3 mm jack , RCA , SPDIF
Input type: balanced/unbalanced (depending on TS/TRS connection)
Max. input level: 20 dBu
Input impedance (balanced): 10.000 Ohm(s) , (unbalanced) 5.000 Ohm(s)
Outputs: 7 x stereo
Output connectors: TRS balanced (1 – 3) , TRS unbalanced (CUE, MAIN, headphones 1 & 2)
Output impedance: 600 Ohm(s)
Frequency response: 12 – 90000 Hz
Total Harmonic Distortion (THD): 0.002 % (BW 20 – 20,000 Hz)
Signal-to-noise ratio (SNR): 102 dB (a-weighted) @ + 4 dBu
Dynamic range (DR AES17): 115 dB
CMRR > 55 dB
Max. attenuation (Attenuator + Mute): 111 dB , (Attenuator) 86 dB
Controls: attenuation , Audio DIM , input selector , mono , mute , output selector , PFL source , Talkback
Housing material: sheet steel , wood
Cabinet surface: Powder coated
Width: 254 mm
Height: 84 mm
Depth: 215 mm
Weight: 1.512 kg
