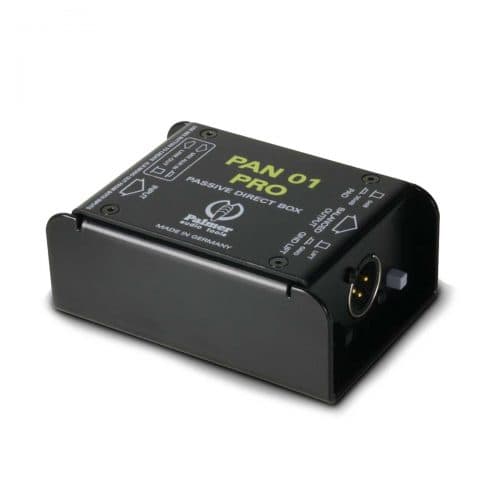

Palmer PAN 01 PRO Professional DI Box Passive

The Palmer PAN 01 PRO brings you the deluxe version of Palmer’s top selling passive DI box (PAN01). Featuring a 2mm steel housing as well as heavy-duty metal switches for the PAD and ground lift functions. So you can be sure your DI box will withstand the rigors of the road, and on stage.

Spec

Product type: DI Boxes

Type: passive

Channels: 1

Inputs: 2

Input connectors: 6.3 mm jack

Max. input level: + 62 dBu

Input impedance: (@ 60 Hz) 68000 Ohm(s)

Input pad: 0 / -30 dB

Outputs: 1

THRU outputs/channel: 1

Output connectors: 6.3 mm jack , XLR

Max. output level: + 4 dBu

Output impedance: 200 Ohm(s)

Frequency response: 10 – 40000 Hz

Transformer balanced: Yes

Ratio: 10 : 1

Controls: attenuation , ground lift , merge

Cabinet material: sheet steel

Cabinet surface: Powder coated

Width: 111 mm

Depth: 74 mm

Height: 43 mm
