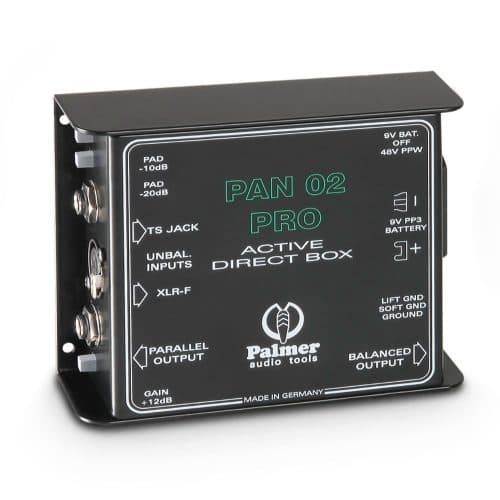

Palmer PAN 02 PRO Professional DI Box Active

The Palmer PAN 02 PRO gives you an active DI-box with a number of additional functions. Including an unbalanced XLR input; as well as a 3-way attenuator -10, -20, -30 dB with 12dB switchable gain and maximum output voltage of +20 dBu.

Features

• First-class Active Di-box
• Unbalanced XLR Input
• 3-way attenuator (-10, -20, -30dB)
• Switchable gain (12dB)
• Max. Output voltage +20 dB
• Soft ground lift

Spec

Product type: DI Boxes

Type: active

Channels: 1

Inputs: 2

Input connectors: 6.3 mm jack , XLR

Max. input level: + 45 dBu

Input impedance: -10 & -20 dB: 70 k Ohm(s) , -30 dB: 40 k Ohm(s) , 0dB & 12 dB: 1 M Ohm(s)

Input pad: 0 dB, -10 dB, -20 dB, -30 dB

Outputs: 1

THRU outputs/channel: 1

Output connectors: 6.3 mm jack , XLR

Max. output level: + 20 dBu

Output impedance: 600 Ohm(s)

Frequency response: 20 – 20000 Hz

Transformer balanced: Yes

Ratio: 3.16:1, 10:1, 31.6:1, 1:4

Controls: attenuator , battery/+ 48 V Power , Boost , ground lift

Operating voltage: +48 V phantom power , 9 V block

Cabinet material: sheet steel

Cabinet surface: Powder coated

Width: 116 mm

Depth: 140 mm

Height: 43.5 mm

Weight: 0,85 kg
