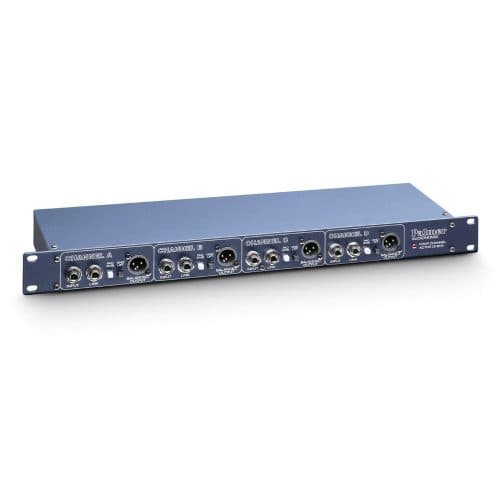

Palmer PAN 03 19 inch DI Box 4 Channel Active
The Palmer PAN 03 gives you an Active 4-Channel DI Box in 19″ rackmount format. Each channel on the PAN 03 features a jack input with a parallel output for passing through the signal. There’s also an attenuation switch (-30 dB) that allows either a line or loudspeaker signal to be connected.
Spec
Product type: DI Boxes
Type: active
Channels: 4
Inputs: 4
Input connectors: 6.3 mm jack
Max. input level: + 45 dBu
Input impedance: (@ 60 Hz) 1 M Ohm(s)
Input pad: 0 / -30 dB
Outputs: 4 (+ 4 parallel XLR outs)
THRU: outputs/channel 1
Output connectors: 6.3 mm jack , XLR
Max. output level: + 10 dBu
Output impedance: 600 Ohm(s)
Frequency response: 10 – 20000 Hz
Transformer: balanced Yes
Ratio: 10 : 1
Indicators: Power
Controls: attenuator , ground lift
Operating voltage: external
Cabinet material: sheet steel
Cabinet surface: Powder coated
Width: 480 mm
Width: 19 “
Depth: 90 mm
Height: 45 mm
Height: 1 U
Weight: 1,6 kg
