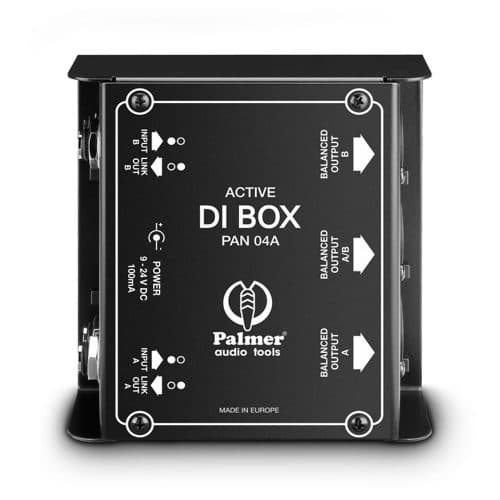

Palmer PAN04A
The Palmer PAN04A gives you a 2-channel DI box that's perfect for feeding asymmetrical and high impedance instrument signals into your mixing desks mic inputs. Delivering a transformer balanced, low impedance signal to the outputs. While eliminating mains hum and interference caused by ground loops. On top of that, the active switch on the PAN04A leaves the frequency response unaffected. While achieving a high dynamic range. Not only does the PAN04A have 6.35mm direct outputs and -30dB switchable input attenuation. But it also features a mono output that sums both channels. The PAN04A is designed to be exceptionally robust and is suitable for both stage and studio applications. Finally, the PAN04A can be powered by either 9 to 24V DC mains adapters, or phantom power when two outputs are connected to a mixer,Features
- Active 2-channel DI box with premium balancing transformers
- 10–40 kHz frequency response, high dynamic response
- -30 dB input attenuation, switchable
- Ground lift switch for each output
- Balanced mono summed output
- Can be powered with 9 to 24 V DC mains adapters or phantom power
Spec
Product type: DI Boxes
Type: active
Channels: 2
Inputs: 2
Input connectors: 6.3 mm jack
Max. input level: + 45 dBu
Input impedance: 1M Ohm(s)
Outputs: 3
THRU outputs/channel: 1
Output connectors: 6.3 mm jack , XLR
Max. output level: + 11 dBu
Output impedance 200 Ohm(s)
Frequency response 10 – 40000 Hz
Transformer balanced Yes
Ratio 1 : 1
Controls attenuation , ground lift
Cabinet material sheet steel
Cabinet surface Powder coated
Width 116 mm
Depth 110 mm
Height 45 mm
Weight 0,47 kg
