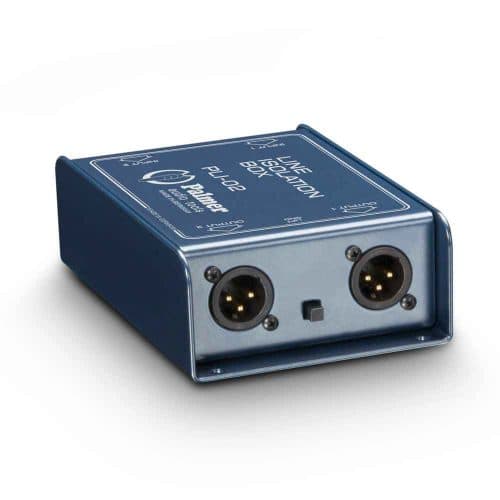

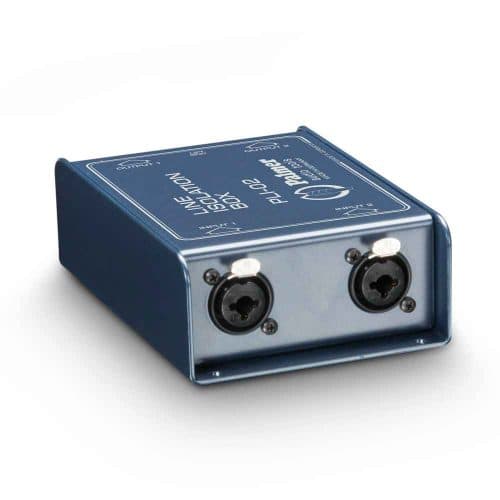

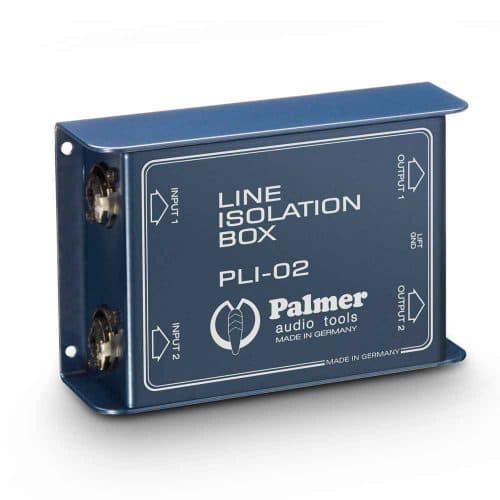

Palmer PLI02 Line Isolation Box 2 Channel

Palmer PLI02

The Palmer PLI02 brings you a 2 Channel, line isolation transformer. Sporting both a Neutrik combination socket (XLR and Jack) as well as an XLR output. The PLI02 also has a ground-lift switch, so it's perfect for eliminating ground loops that cause hum. Conversion from unbalanced to balanced is also possible. While the 600-ohm version can handle levels of up to +20 dBu. With a professional, dual-channel line isolating unit, the PLI02 is suited for both stage and studio use. The PLI02 can even be used to transformer balance electronically balanced inputs and outputs.

Spec

Product type: Line Isolators

Channels: 2

Inputs: 2

Input connectors: 6.3 mm jack , XLR

Input type: balanced/unbalanced (depending on TS/TRS connection)

Input impedance: 0.6 k Ohm(s)

Max. input level: + 20 dBu

Outputs: 2

Output connectors: XLR

Output type: balanced/unbalanced (depending on TS/TRS connection)

Output impedance: 600 Ohm(s)

Max. output level: + 20 dBu

Transformer balanced: Yes

Ratio: 1:1

Frequency response: 20 – 20.000 Hz

Controls: ground lift

Cabinet material: Die-cast aluminum

Cabinet surface: Powder coated

Width: 135 mm

Depth: 95 mm

Height: 35 mm

Weight: 0,53 kg
